MySQL at NetEase

蒋鸿翔@网易杭研院

jhx1008@gmail.com

MySQL at NetEase

MySQL版本
MySQL 5.1.47、5.5.20、5.5.30
逐步转向MySQL 5.5.30
MySQL 5.6.19 (开发中)
数据库架构
master-slave replication
DDB（distribute database）
应用
云音乐、云阅读、微博、博客、相册、游戏…
几乎95%的应用都使用MySQL

NetEase MySQL

为什么？
更快速的bug修复
高可用性
高可靠性
创新

NetEase MySQL

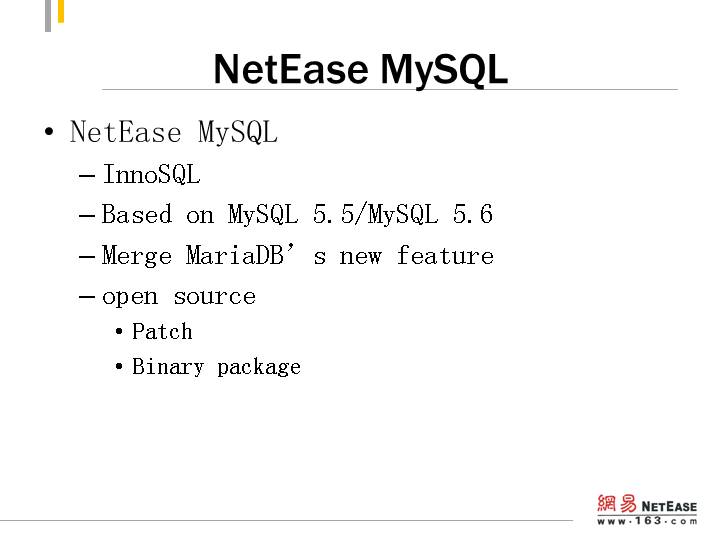

NetEase MySQL
InnoSQL
Based on MySQL 5.5/MySQL 5.6
Merge MariaDB’s new feature
open source
Patch
Binary package

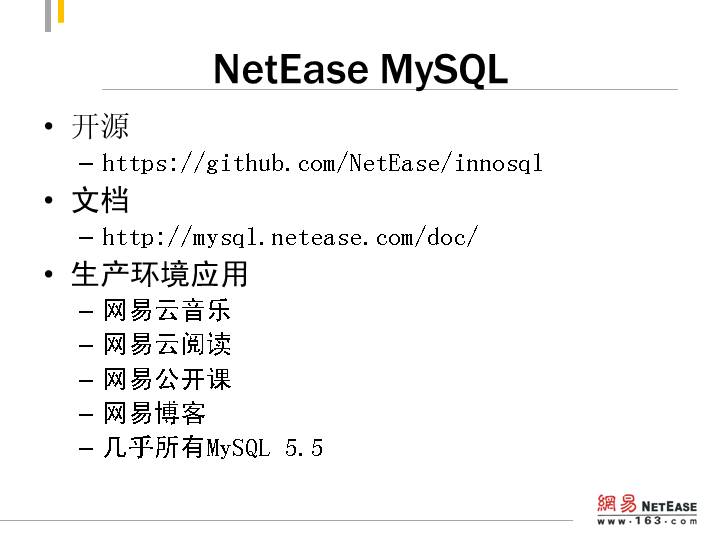

NetEase MySQL

开源
https://github.com/NetEase/innosql
文档
http://mysql.netease.com/doc/
生产环境应用
网易云音乐
网易云阅读
网易公开课
网易博客
几乎所有MySQL 5.5

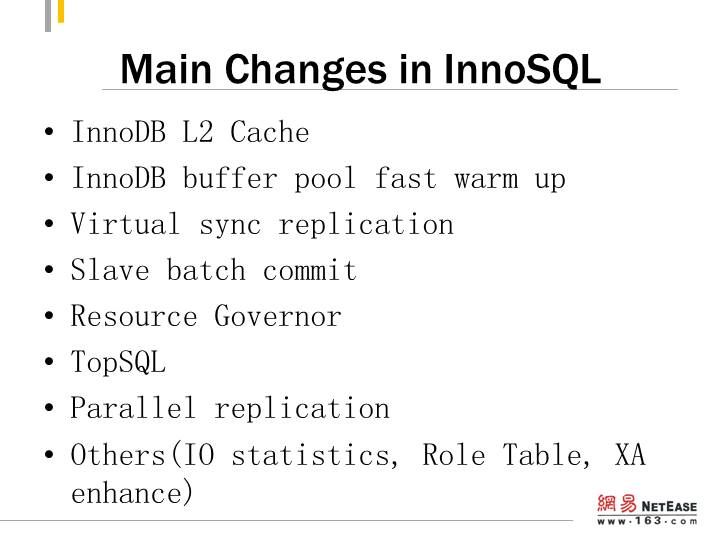

Main Changes in InnoSQL

InnoDB L2 Cache
InnoDB buffer pool fast warm up
Virtual sync replication
Slave batch commit
Resource Governor
TopSQL
Parallel replication
Others(IO statistics, Role Table, XA enhance)

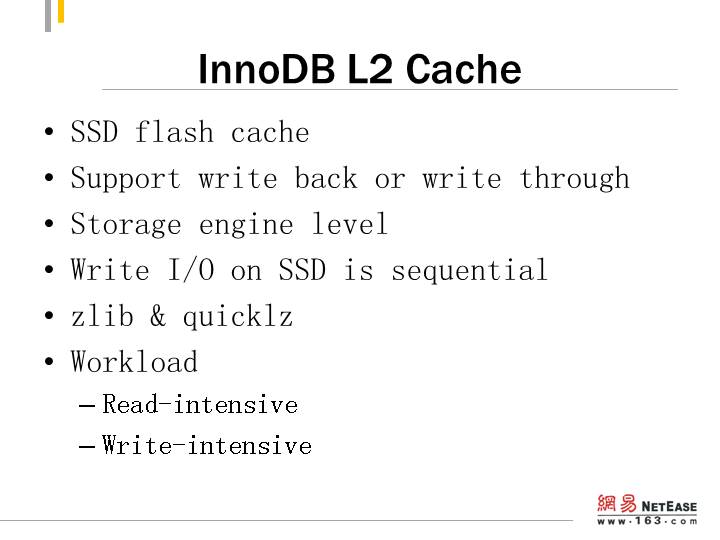

InnoDB L2 Cache

SSD flash cache
Support write back or write through
Storage engine level
Write I/O on SSD is sequential
zlib & quicklz
Workload
Read-intensive
Write-intensive

InnoDB L2 Cache

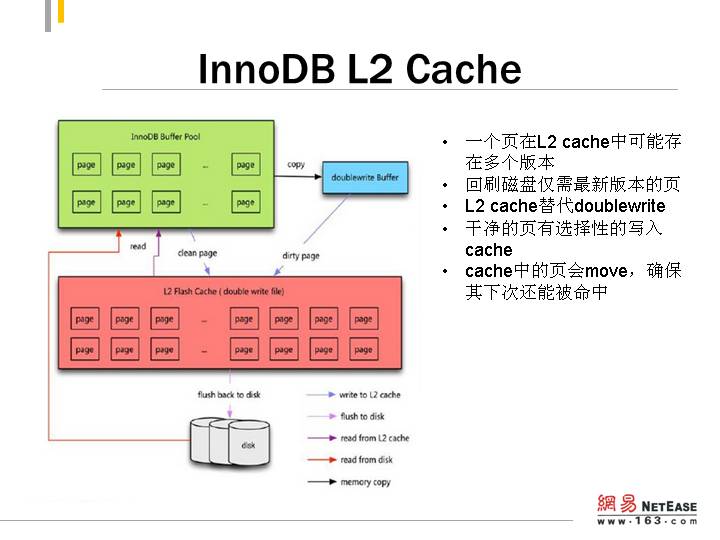

InnoDB L2 Cache

一个页在L2 cache中可能存在多个版本
回刷磁盘仅需最新版本的页
L2 cache替代doublewrite
干净的页有选择性的写入cache
cache中的页会move，确保其下次还能被命中

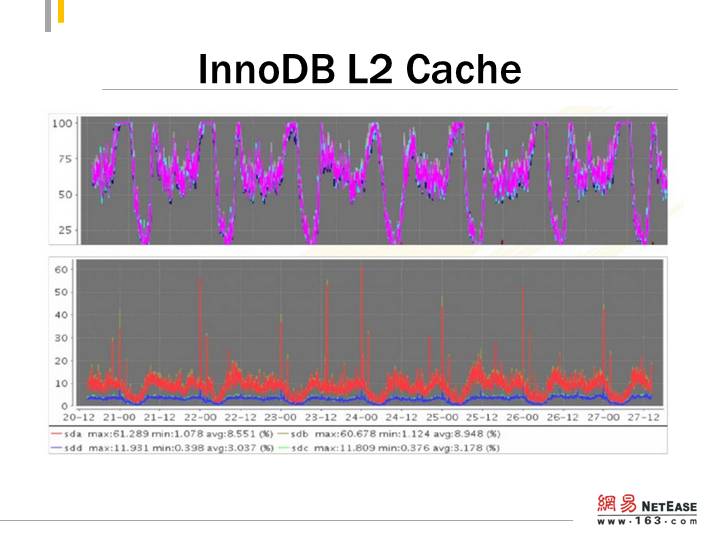

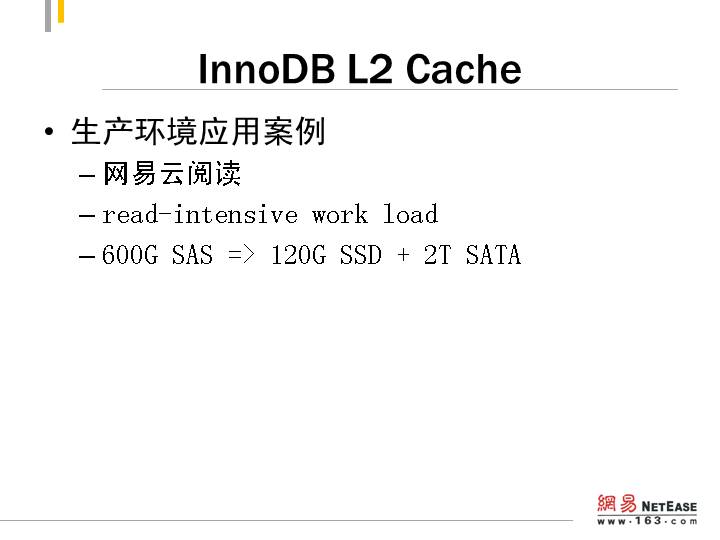

InnoDB L2 Cache

生产环境应用案例
网易云阅读
read-intensive work load
600G SAS => 120G SSD + 2T SATA

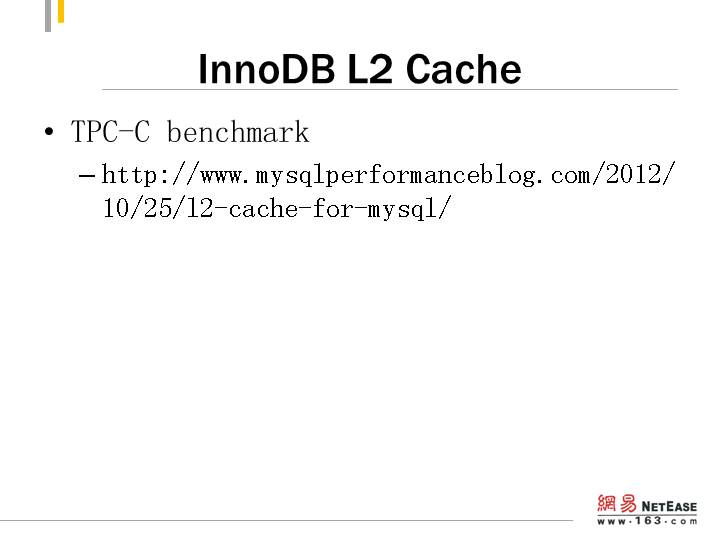

InnoDB L2 Cache

TPC-C benchmark
http://www.mysqlperformanceblog.com/2012/10/25/l2-cache-for-mysql/

InnoDB L2 Cache

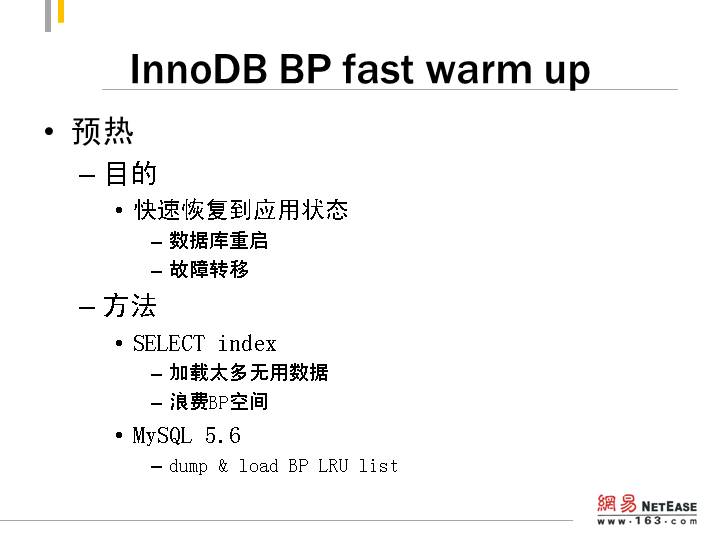

InnoDB BP fast warm up

预热
目的
快速恢复到应用状态
数据库重启
故障转移
方法
SELECT index
加载太多无用数据
浪费BP空间
MySQL 5.6
dump & load BP LRU list

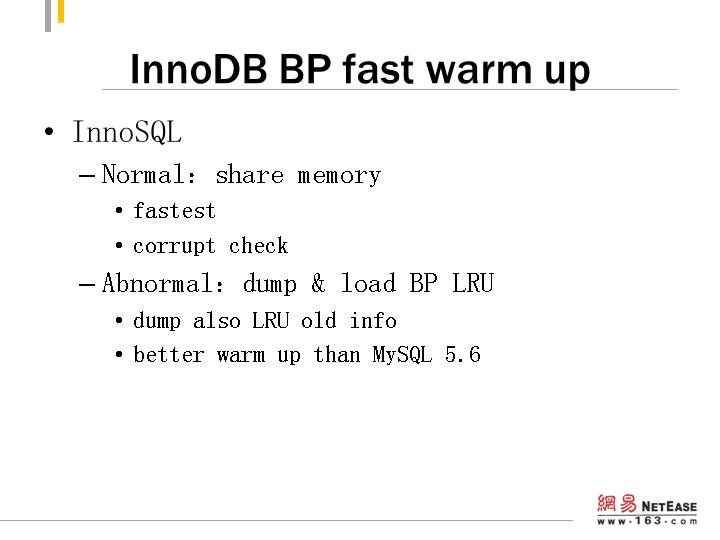

InnoDB BP fast warm up

InnoSQL
Normal：share memory
fastest
corrupt check
Abnormal：dump & load BP LRU
dump also LRU old info
better warm up than MySQL 5.6

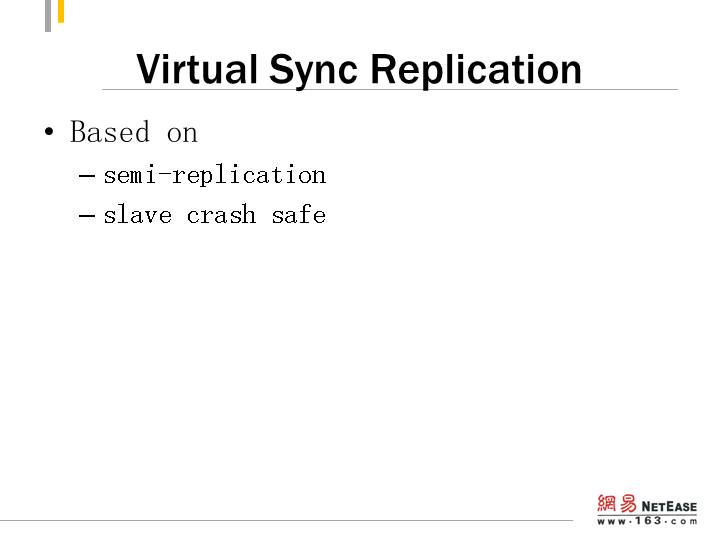

Virtual Sync Replication

Based on
semi-replication
slave crash safe

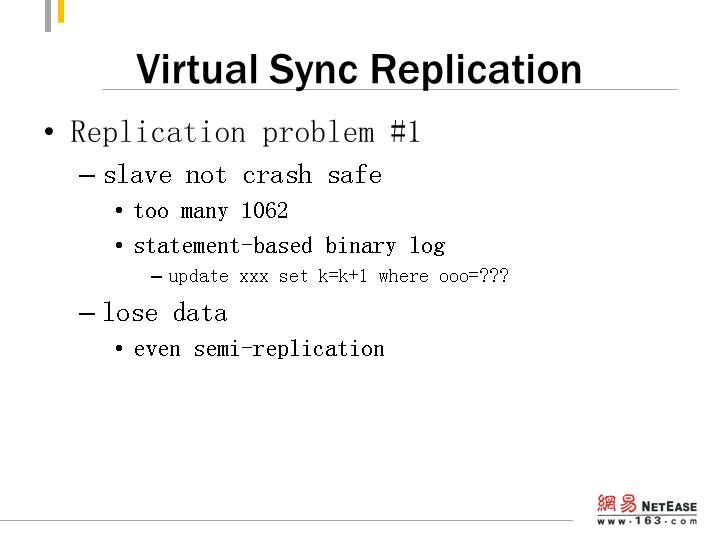

Virtual Sync Replication

Replication problem #1
slave not crash safe
too many 1062
statement-based binary log
update xxx set k=k+1 where ooo=jQuery110208963872229214758_1429758282002?
lose data
even semi-replication

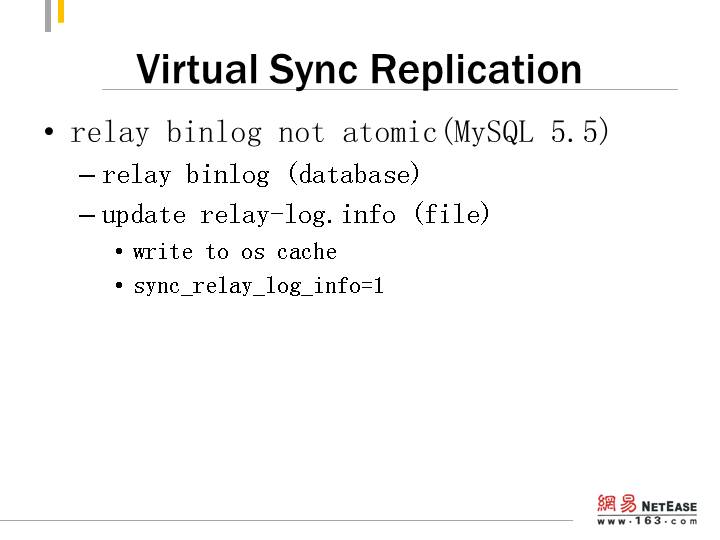

Virtual Sync Replication

relay binlog not atomic(MySQL 5.5)
relay binlog (database)
update relay-log.info (file)
write to os cache
sync_relay_log_info=1

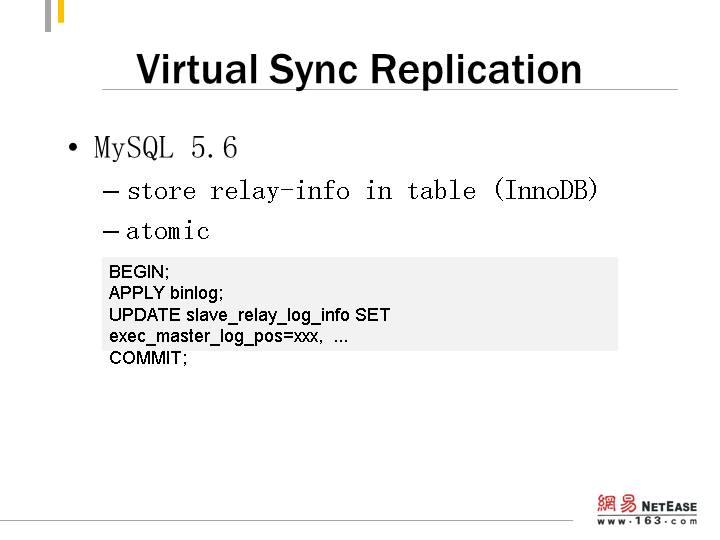

Virtual Sync Replication

MySQL 5.6
store relay-info in table (InnoDB)
atomic

BEGIN;
APPLY binlog;
UPDATE slave_relay_log_info SET exec_master_log_pos=xxx, ...
COMMIT;

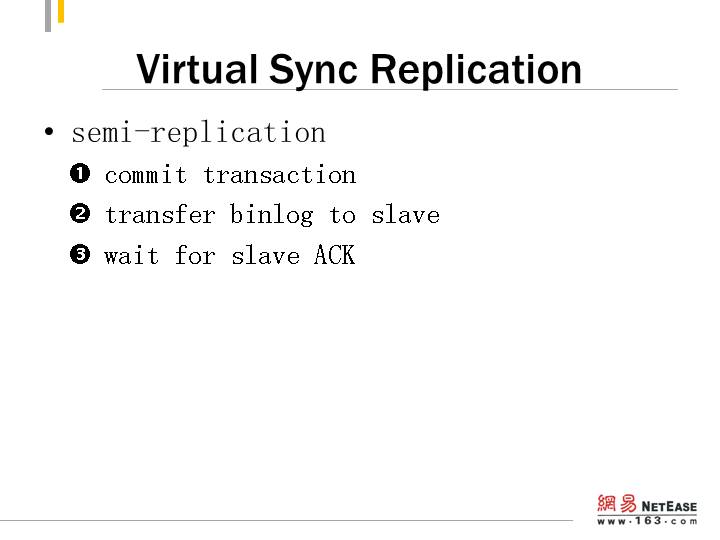

Virtual Sync Replication

semi-replication
commit transaction
transfer binlog to slave
wait for slave ACK

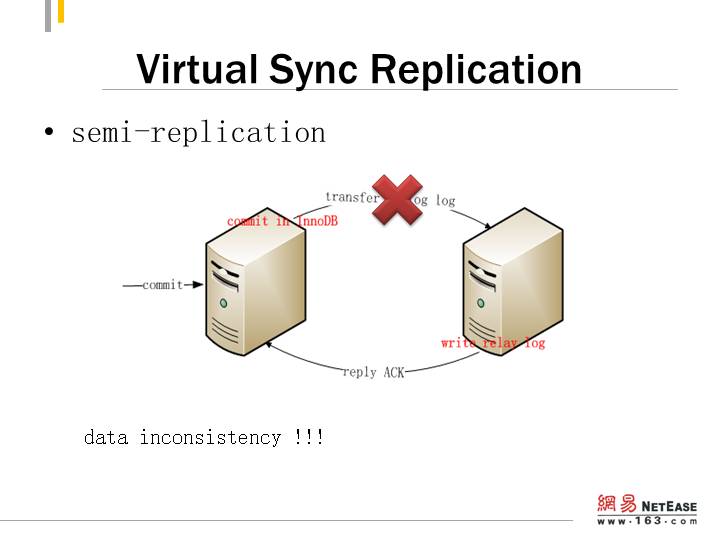

Virtual Sync Replication

semi-replication

data inconsistency !!!

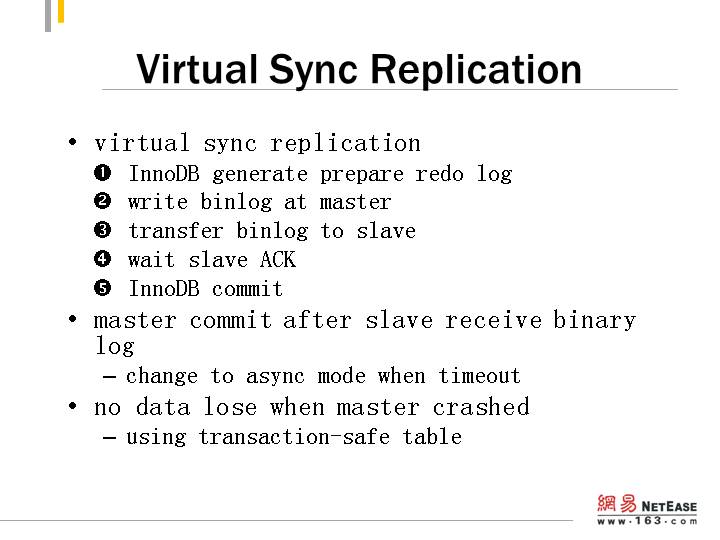

Virtual Sync Replication

virtual sync replication
InnoDB generate prepare redo log
write binlog at master
transfer binlog to slave
wait slave ACK
InnoDB commit
master commit after slave receive binary log
change to async mode when timeout
no data lose when master crashed
using transaction-safe table

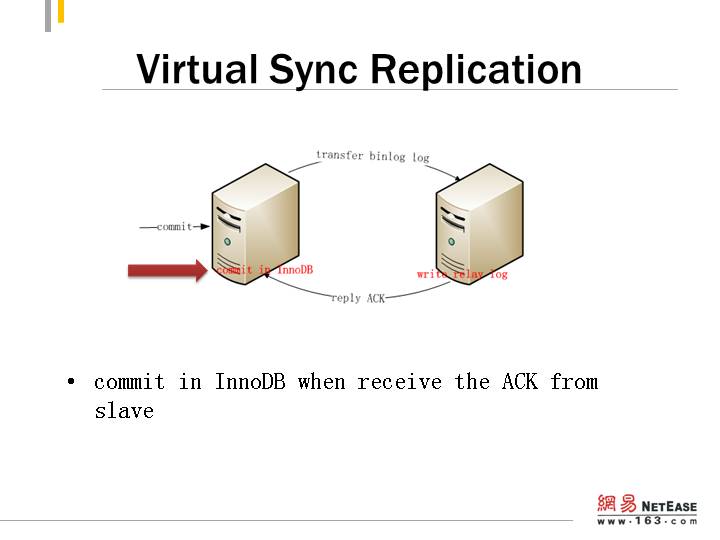

Virtual Sync Replication

commit in InnoDB when receive the ACK from slave

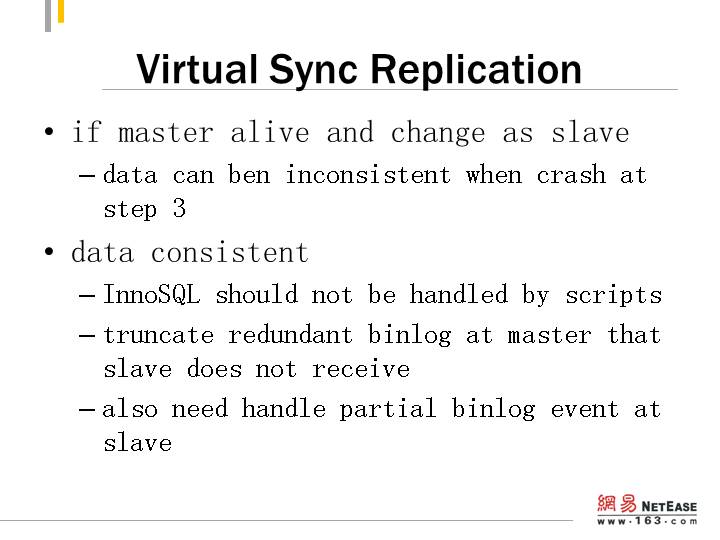

Virtual Sync Replication

if master alive and change as slave
data can ben inconsistent when crash at step 3
data consistent
InnoSQL should not be handled by scripts
truncate redundant binlog at master that slave does not receive
also need handle partial binlog event at slave

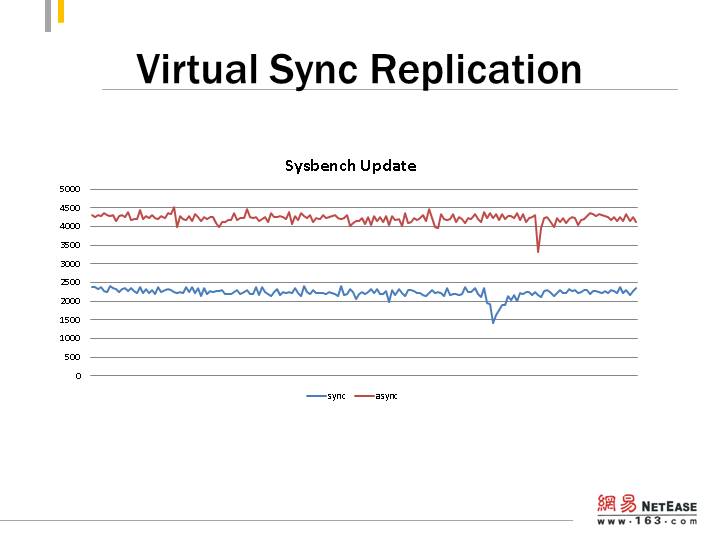

Virtual Sync Replication

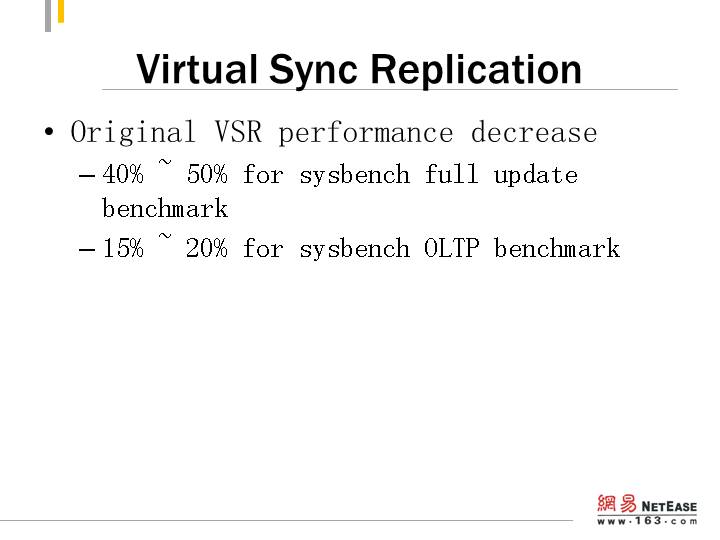

Virtual Sync Replication

Original VSR performance decrease
40% ~ 50% for sysbench full update benchmark
15% ~ 20% for sysbench OLTP benchmark

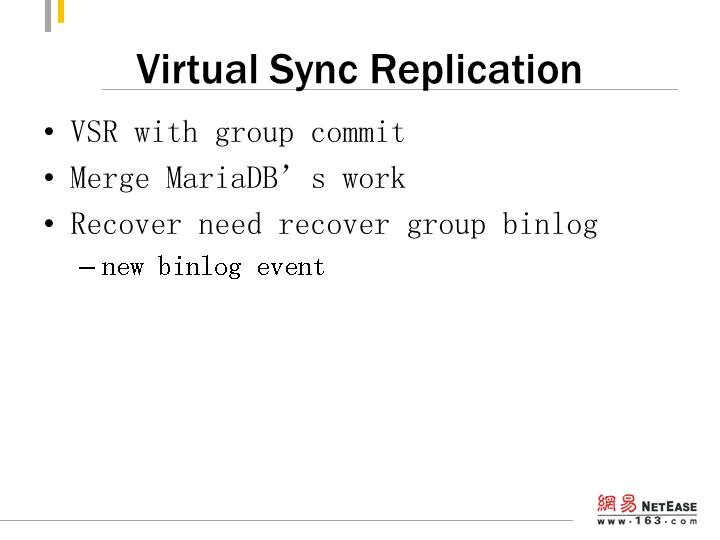

Virtual Sync Replication

VSR with group commit
Merge MariaDB’s work
Recover need recover group binlog
new binlog event

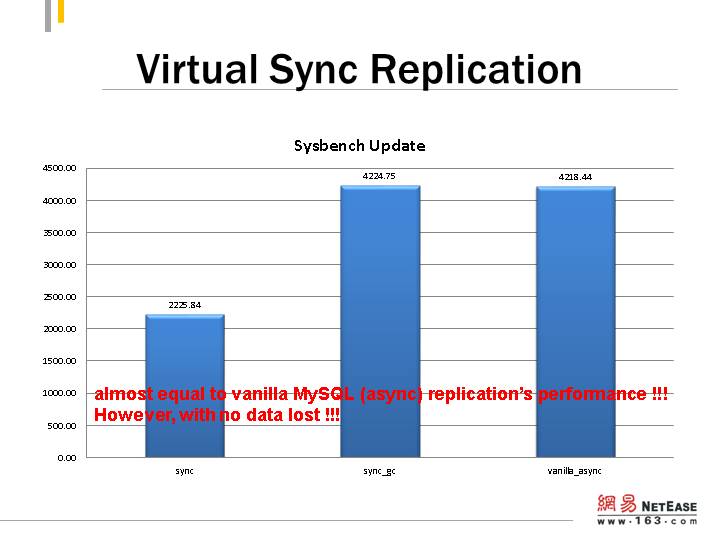

Virtual Sync Replication

almost equal to vanilla MySQL (async) replication’s performance !!!
However, with no data lost !!!

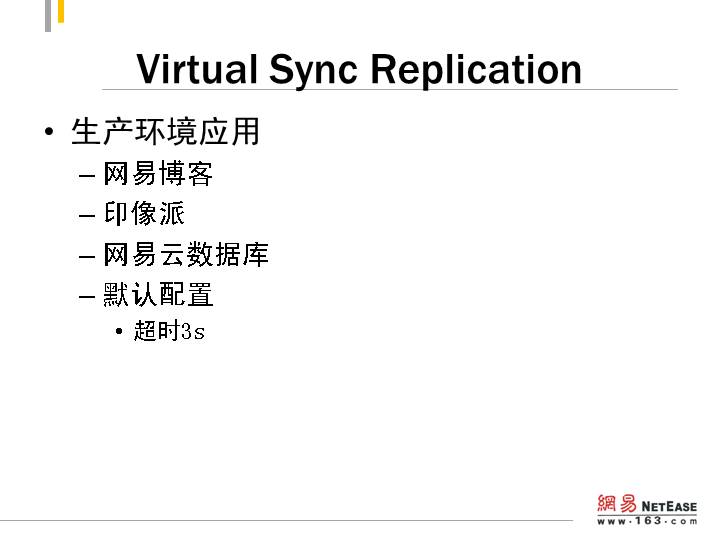

Virtual Sync Replication

生产环境应用
网易博客
印像派
网易云数据库
默认配置
超时3s

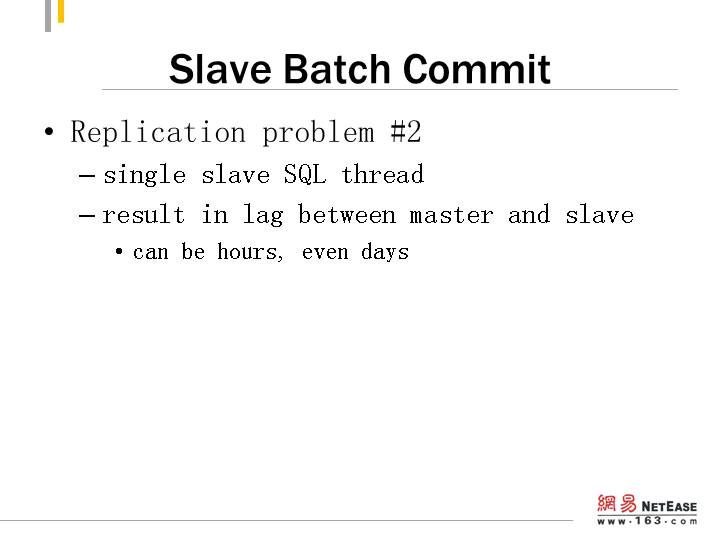

Slave Batch Commit

Replication problem #2
single slave SQL thread
result in lag between master and slave
can be hours, even days

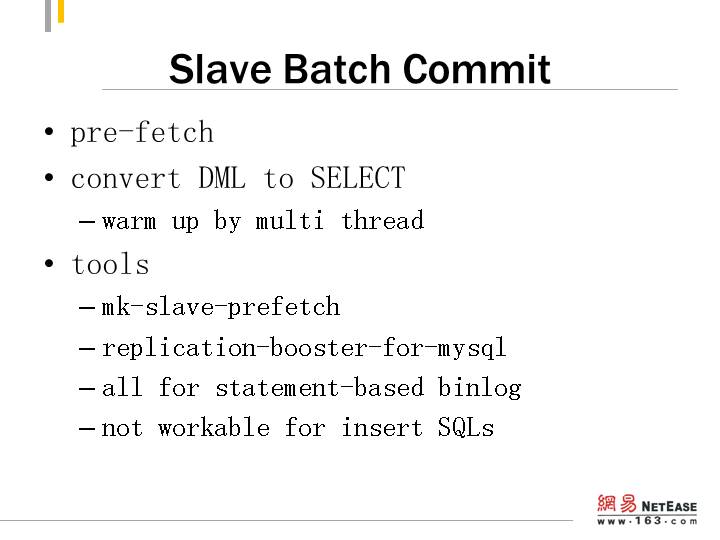

Slave Batch Commit

pre-fetch
convert DML to SELECT
warm up by multi thread
tools
mk-slave-prefetch
replication-booster-for-mysql
all for statement-based binlog
not workable for insert SQLs

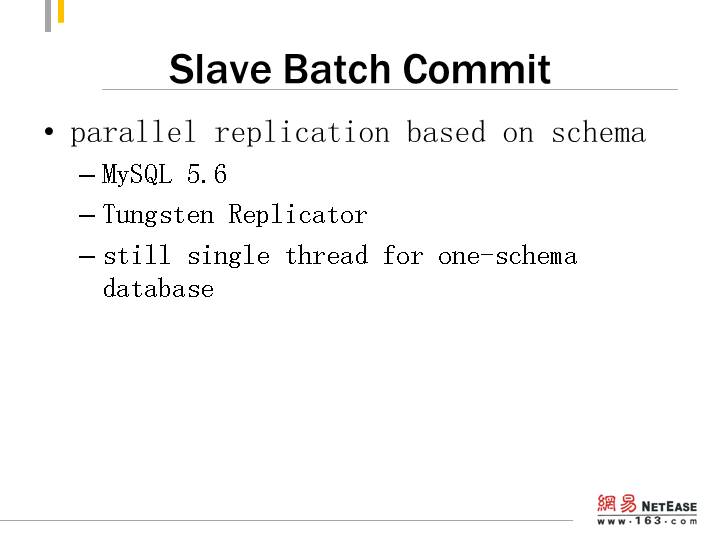

Slave Batch Commit

parallel replication based on schema
MySQL 5.6
Tungsten Replicator
still single thread for one-schema database

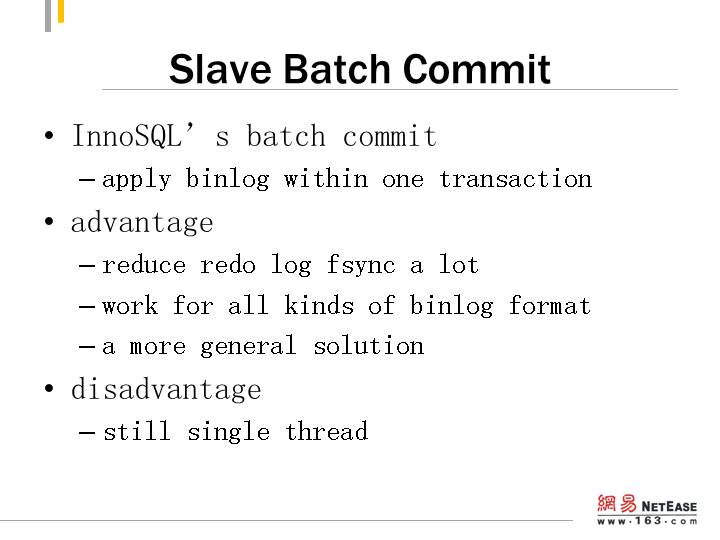

Slave Batch Commit

InnoSQL’s batch commit
apply binlog within one transaction
advantage
reduce redo log fsync a lot
work for all kinds of binlog format
a more general solution
disadvantage
still single thread

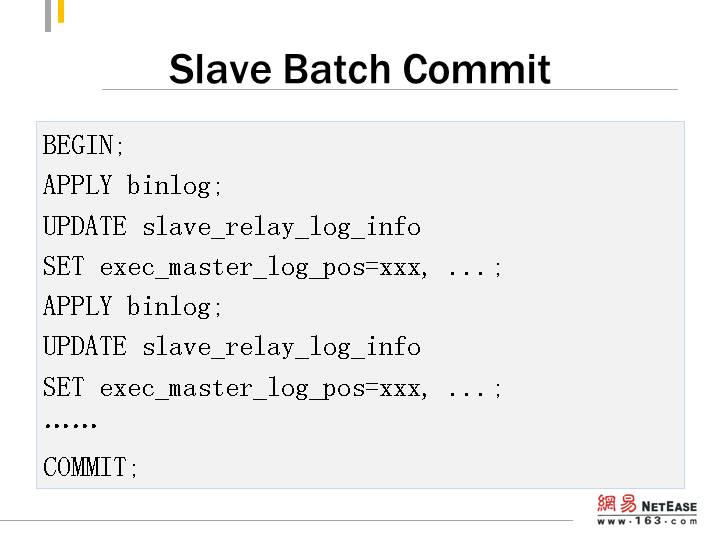

Slave Batch Commit

BEGIN;
APPLY binlog;
UPDATE slave_relay_log_info
SET exec_master_log_pos=xxx, ...;
APPLY binlog;
UPDATE slave_relay_log_info
SET exec_master_log_pos=xxx, ...;
……
COMMIT;

Slave Batch Commit

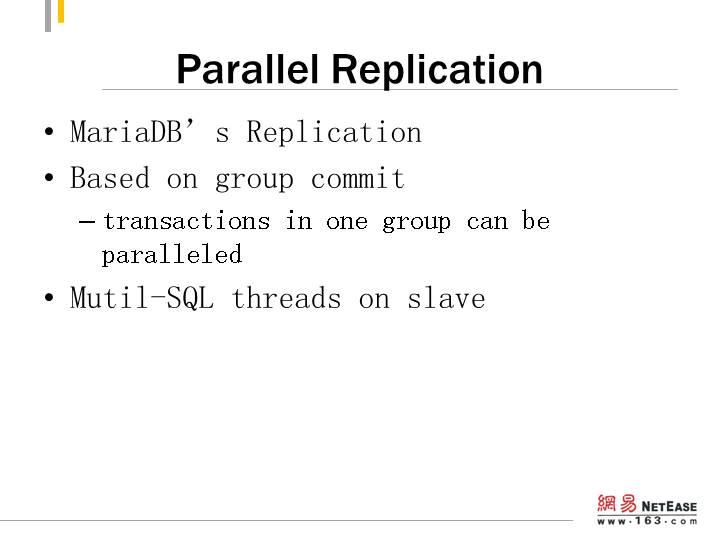

Parallel Replication

MariaDB’s Replication
Based on group commit
transactions in one group can be paralleled
Mutil-SQL threads on slave

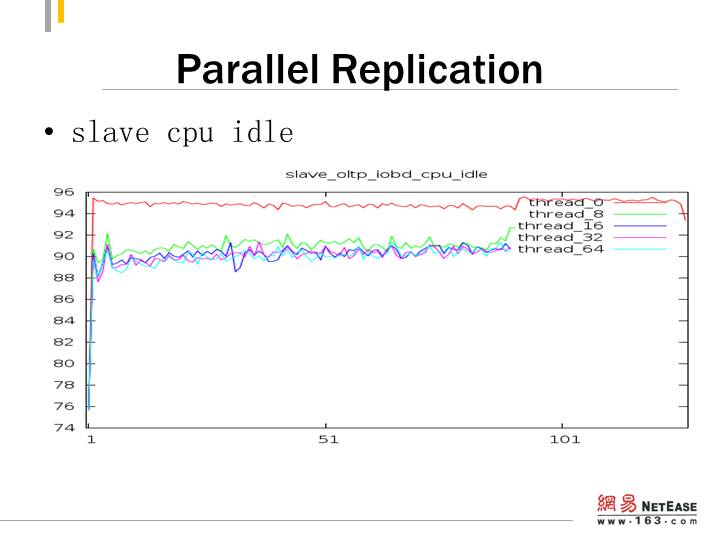

Parallel Replication

slave cpu idle

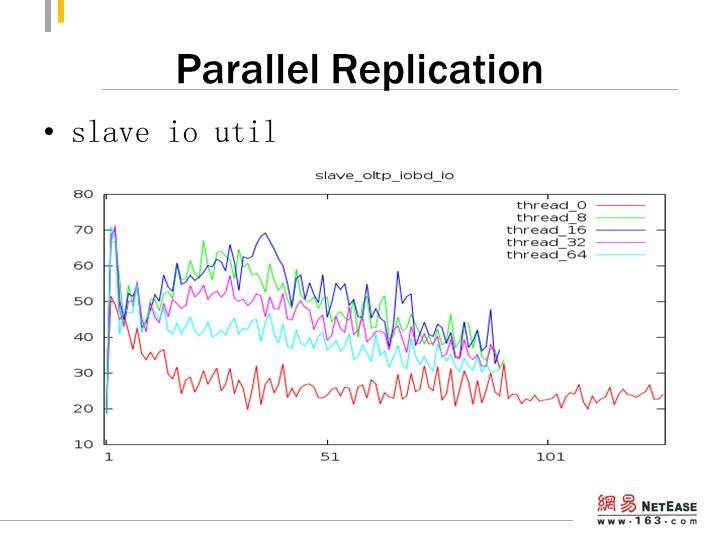

Parallel Replication

slave io util

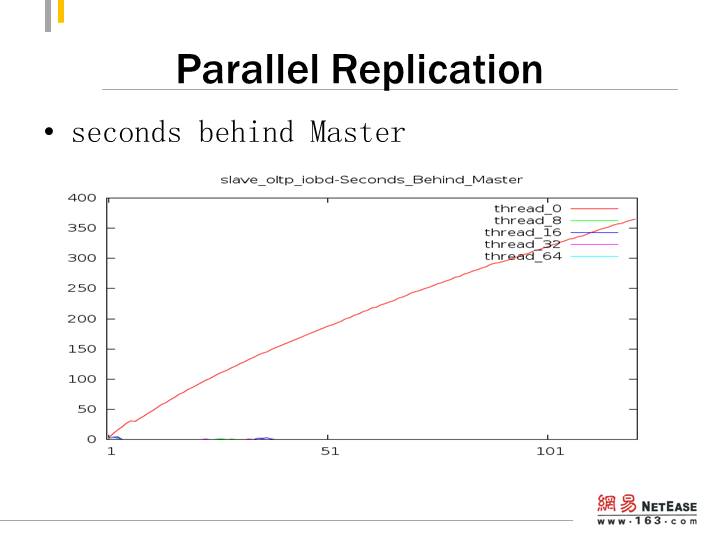

Parallel Replication

seconds behind Master

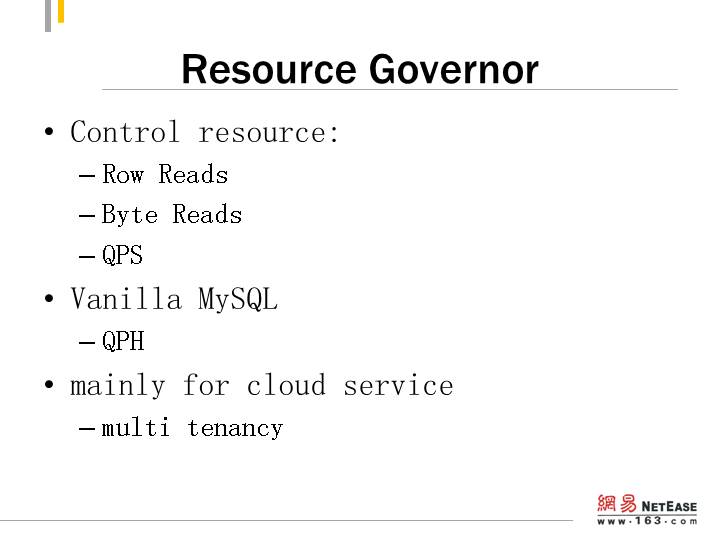

Resource Governor

Control resource:
Row Reads
Byte Reads
QPS
Vanilla MySQL
QPH
mainly for cloud service
multi tenancy

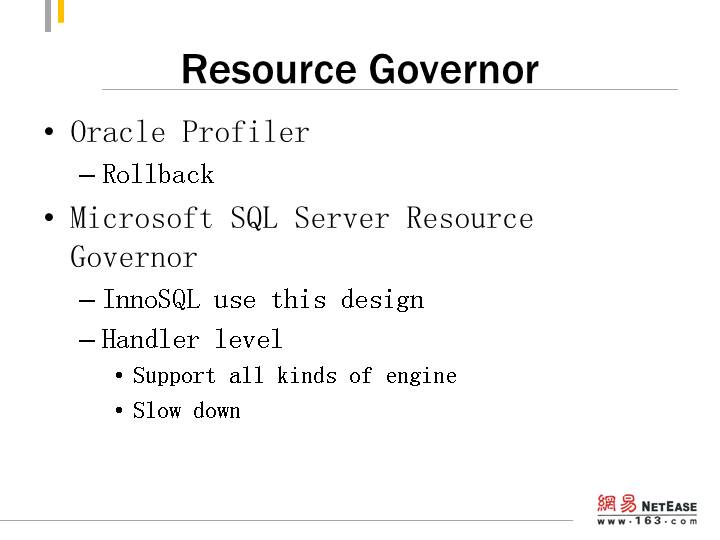

Resource Governor

Oracle Profiler
Rollback
Microsoft SQL Server Resource Governor
InnoSQL use this design
Handler level
Support all kinds of engine
Slow down

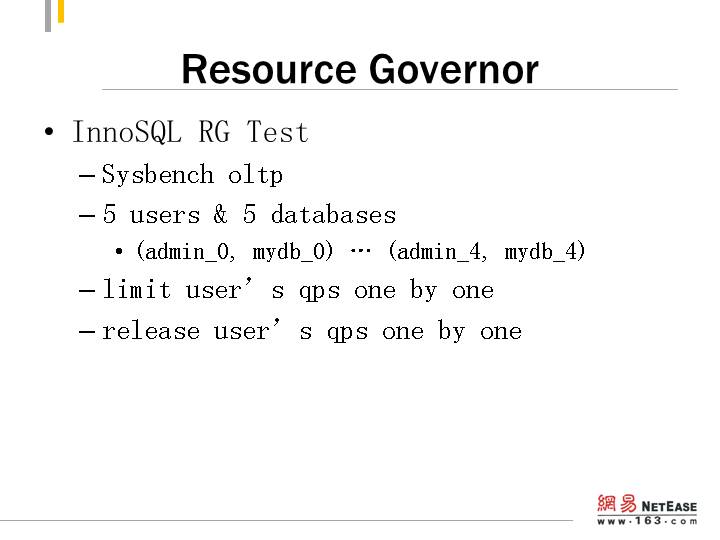

Resource Governor

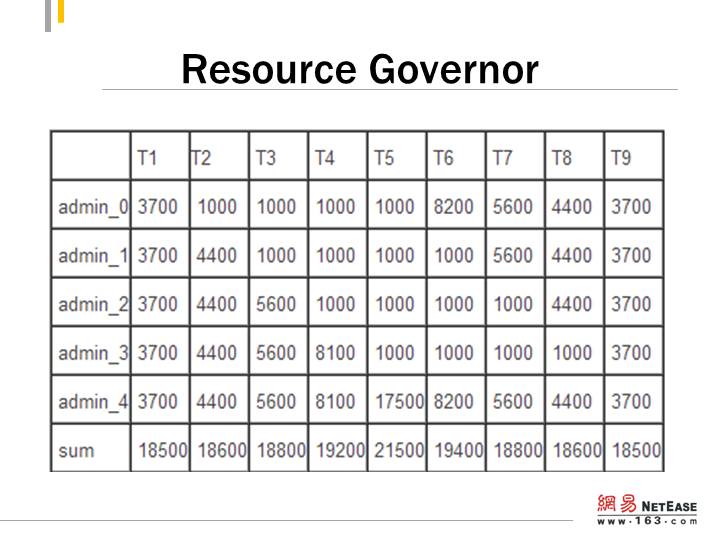

InnoSQL RG Test
Sysbench oltp
5 users & 5 databases
(admin_0, mydb_0) … (admin_4, mydb_4)
limit user’s qps one by one
release user’s qps one by one

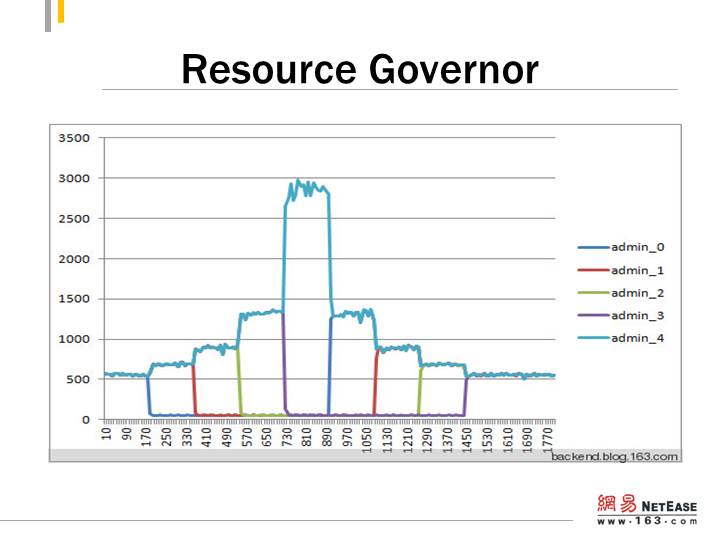

Resource Governor

Resource Governor

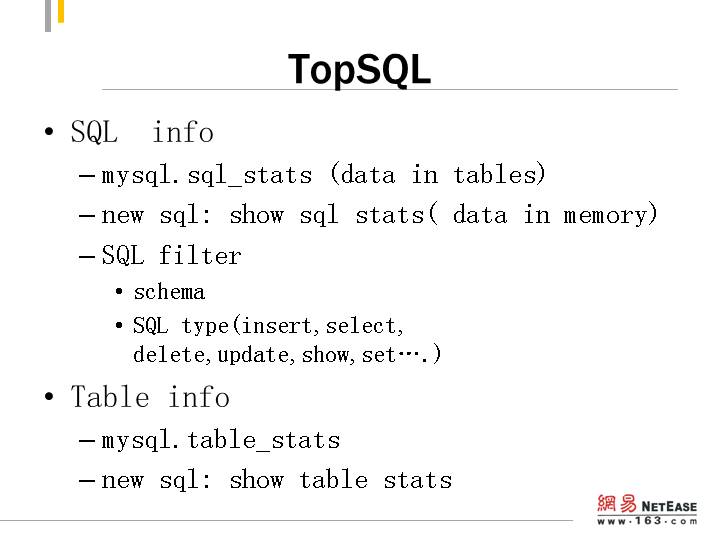

TopSQL

SQL  info
mysql.sql_stats (data in tables)
new sql: show sql stats( data in memory)
SQL filter
schema
SQL type(insert,select, delete,update,show,set….)
Table info
mysql.table_stats
new sql: show table stats

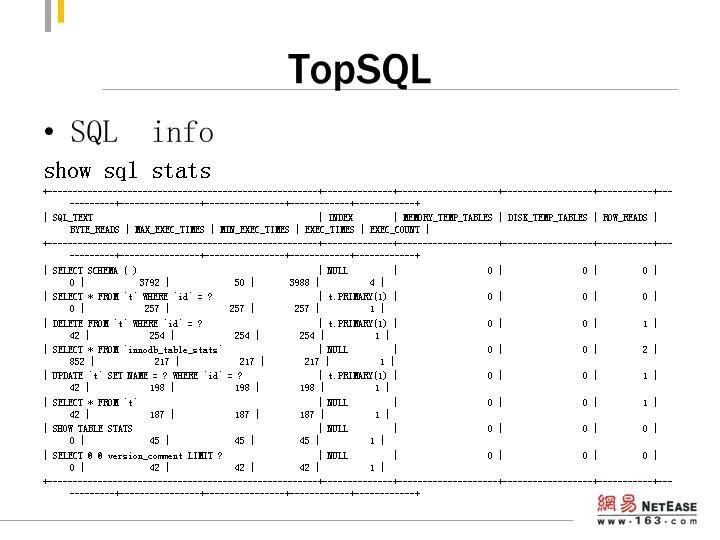

TopSQL

SQL  info
show sql stats
+------------------------------------------------------+--------------+--------------------+------------------+-----------+------------+----------------+----------------+------------+------------+
| SQL_TEXT                                             | INDEX        | MEMORY_TEMP_TABLES | DISK_TEMP_TABLES | ROW_READS | BYTE_READS | MAX_EXEC_TIMES | MIN_EXEC_TIMES | EXEC_TIMES | EXEC_COUNT |
+------------------------------------------------------+--------------+--------------------+------------------+-----------+------------+----------------+----------------+------------+------------+
| SELECT SCHEMA ( )                                    | NULL         |                  0 |                0 |         0 |          0 |           3792 |             50 |       3988 |          4 |
| SELECT * FROM `t` WHERE `id` = ?                     | t.PRIMARY(1) |                  0 |                0 |         0 |          0 |            257 |            257 |        257 |          1 |
| DELETE FROM `t` WHERE `id` = ?                       | t.PRIMARY(1) |                  0 |                0 |         1 |         42 |            254 |            254 |        254 |          1 |
| SELECT * FROM `innodb_table_stats`                   | NULL         |                  0 |                0 |         2 |        852 |            217 |            217 |        217 |          1 |
| UPDATE `t` SET NAME = ? WHERE `id` = ?               | t.PRIMARY(1) |                  0 |                0 |         1 |         42 |            198 |            198 |        198 |          1 |
| SELECT * FROM `t`                                    | NULL         |                  0 |                0 |         1 |         42 |            187 |            187 |        187 |          1 |
| SHOW TABLE STATS                                     | NULL         |                  0 |                0 |         0 |          0 |             45 |             45 |         45 |          1 |
| SELECT @ @ version_comment LIMIT ?                   | NULL         |                  0 |                0 |         0 |          0 |             42 |             42 |         42 |          1 |
+------------------------------------------------------+--------------+--------------------+------------------+-----------+------------+----------------+----------------+------------+------------+

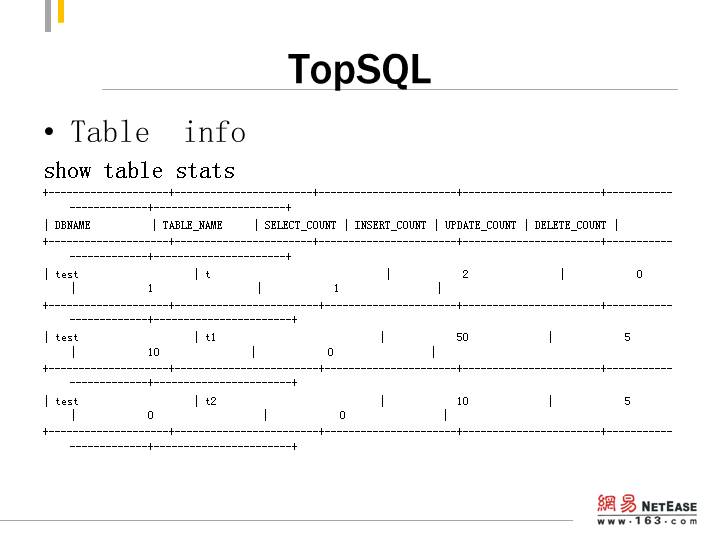

TopSQL

Table  info
show table stats
+--------------------+-----------------------+-----------------------+-----------------------+------------------------+----------------------+
| DBNAME          | TABLE_NAME     | SELECT_COUNT | INSERT_COUNT | UPDATE_COUNT | DELETE_COUNT |
+--------------------+-----------------------+-----------------------+-----------------------+------------------------+----------------------+
| test                   | t                             |            2               |            0                |            1                 |            1                |
+--------------------+------------------------+----------------------+-----------------------+------------------------+-----------------------+
| test                   | t1                           |            50             |            5                |            10               |            0                |
+--------------------+------------------------+----------------------+-----------------------+------------------------+-----------------------+
| test                   | t2                           |            10             |            5               |            0                  |            0                |
+--------------------+------------------------+----------------------+-----------------------+------------------------+-----------------------+

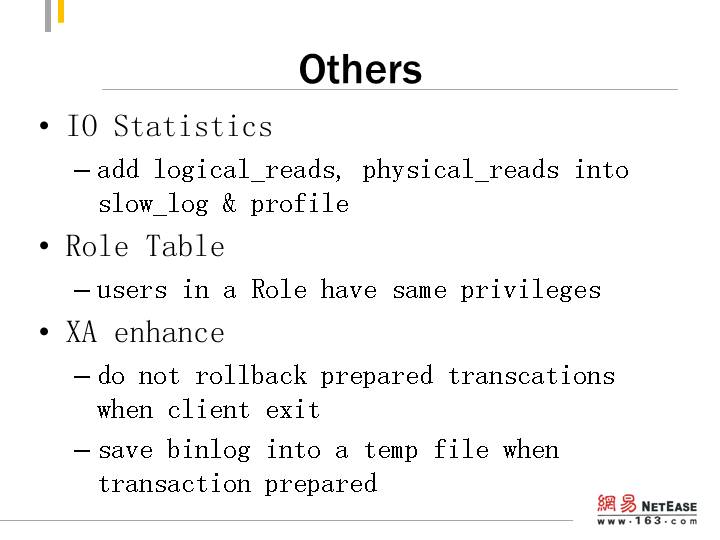

Others

IO Statistics
add logical_reads, physical_reads into slow_log & profile
Role Table
users in a Role have same privileges
XA enhance
do not rollback prepared transcations when client exit
save binlog into a temp file when transaction prepared

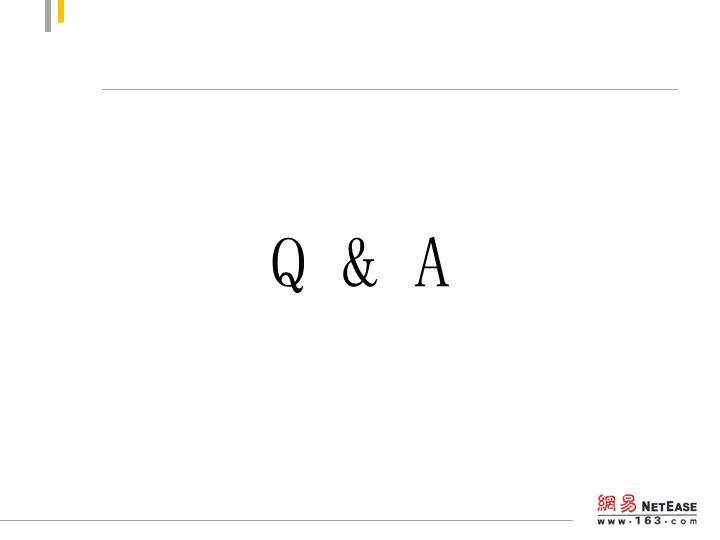

Q & A
