第1页

Enabling Microservices @Orbitz

Steve Hoffman @bacoboy Rick Fast @tortiepoint Senior Principal Engineers

第5页

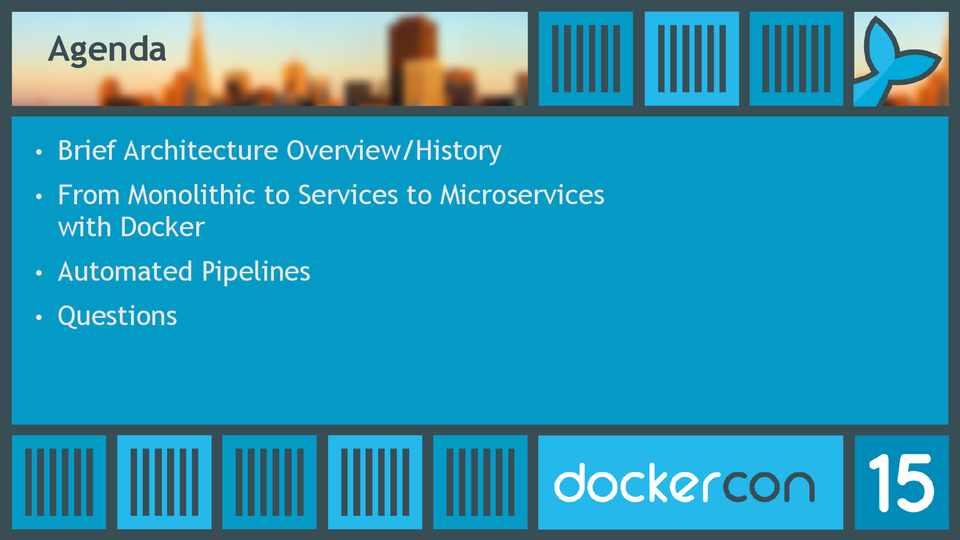

Agenda

• Brief Architecture Overview/History • From Monolithic to Services to Microservices

with Docker • Automated Pipelines • Questions

第6页

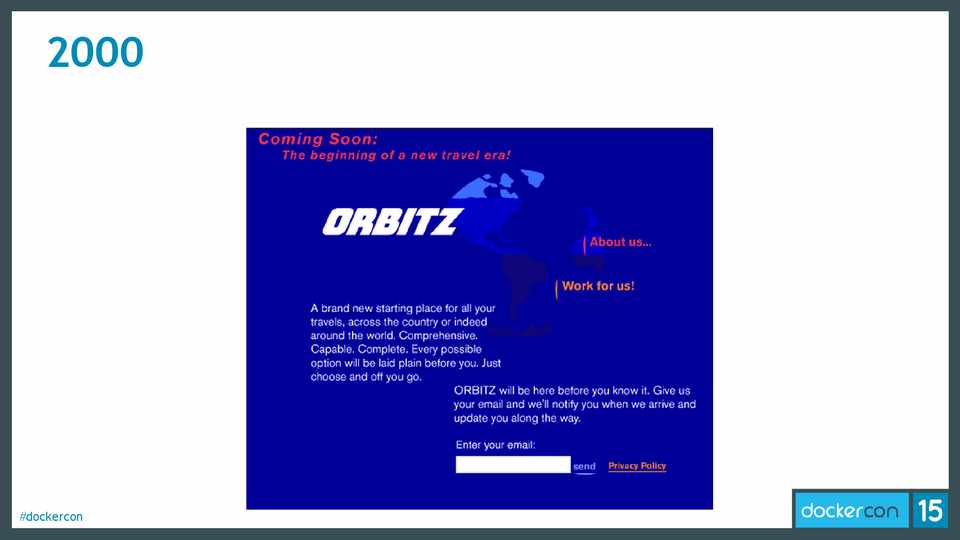

2000

#dockercon

第7页

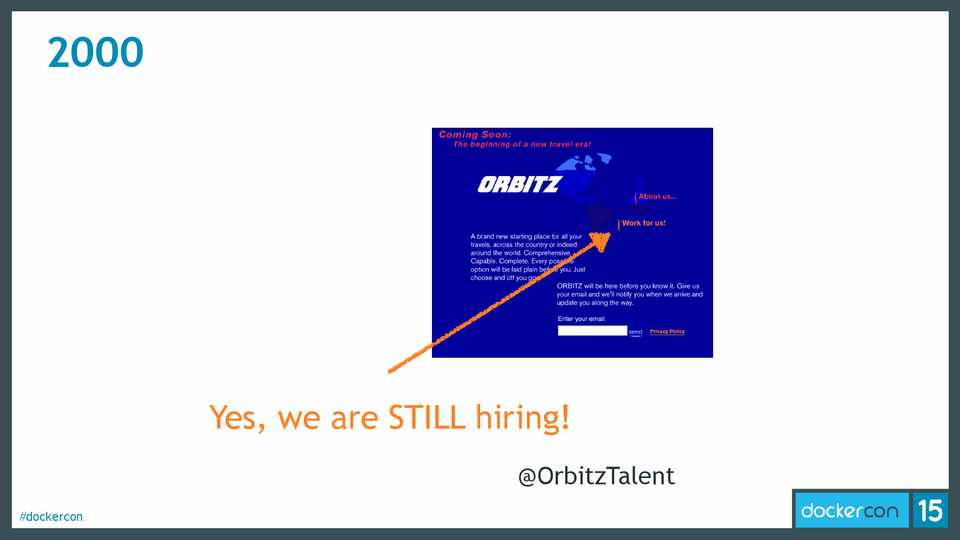

2000

#dockercon

Yes, we are STILL hiring!

@OrbitzTalent

第8页

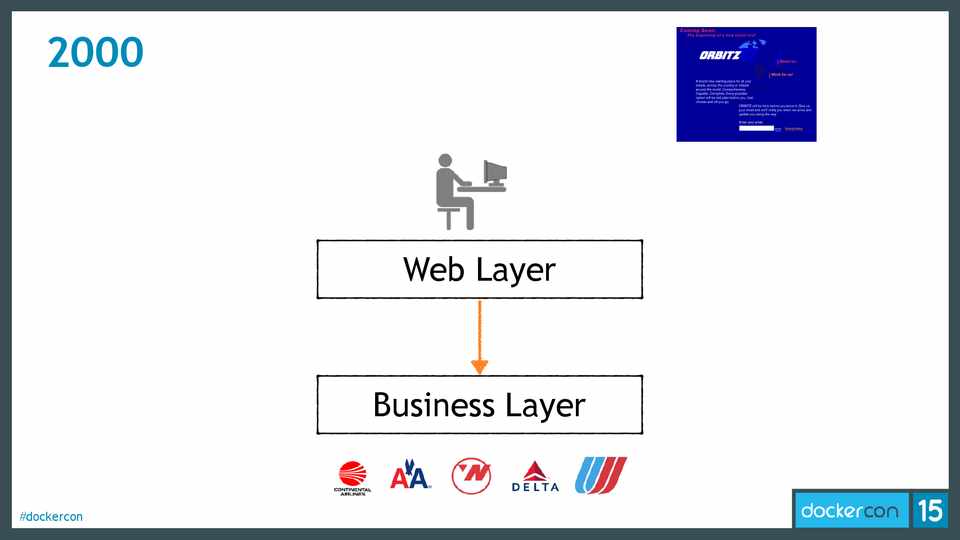

2000

#dockercon

Web Layer Business Layer

第9页

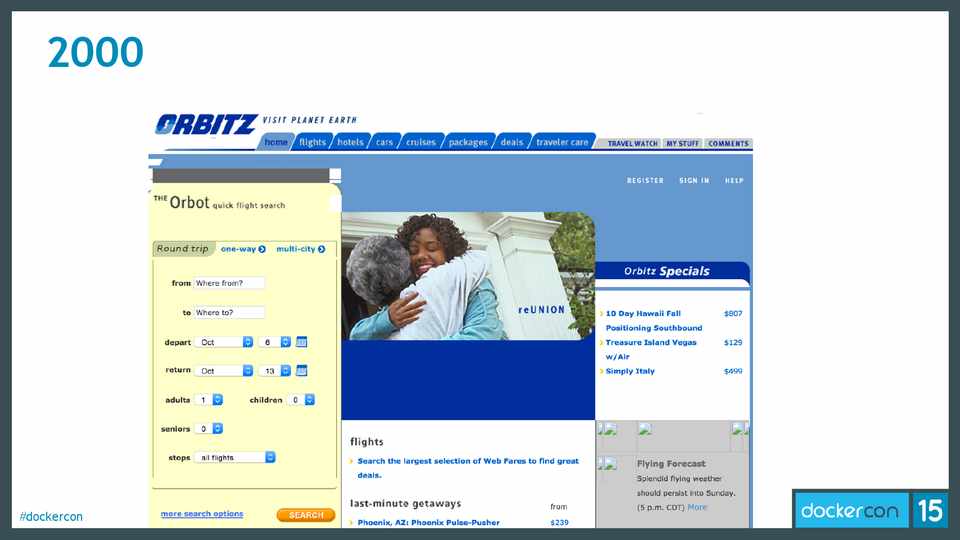

2000

#dockercon

第10页

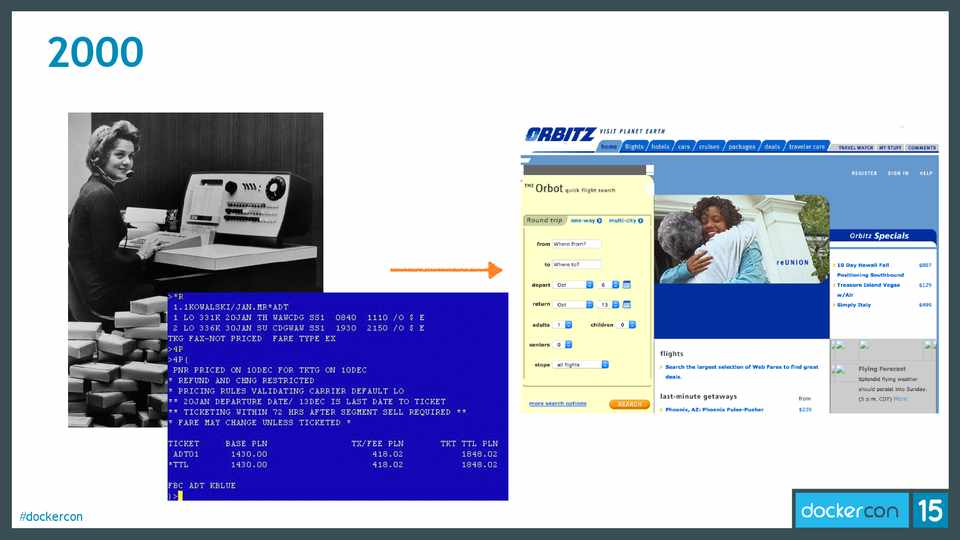

2000

#dockercon

第11页

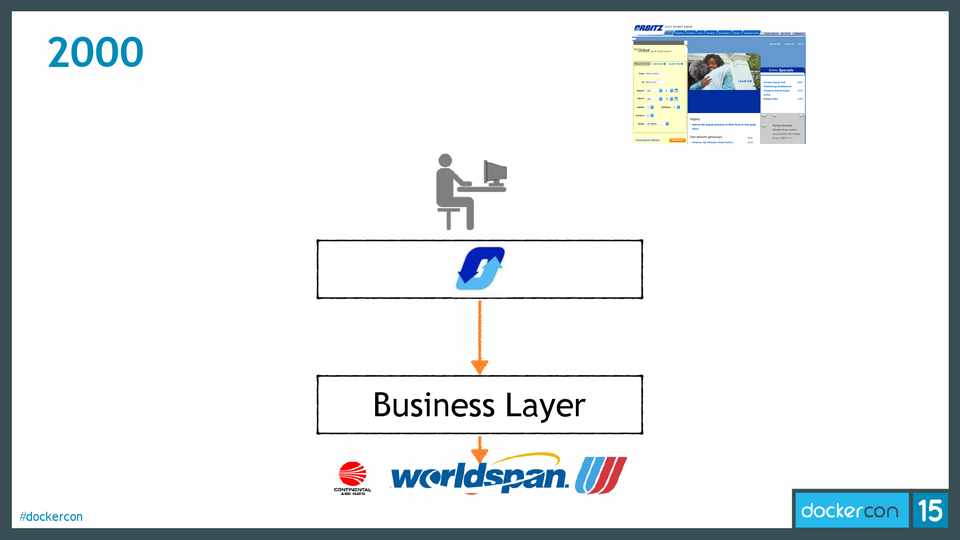

2000

#dockercon

Business Layer

第12页

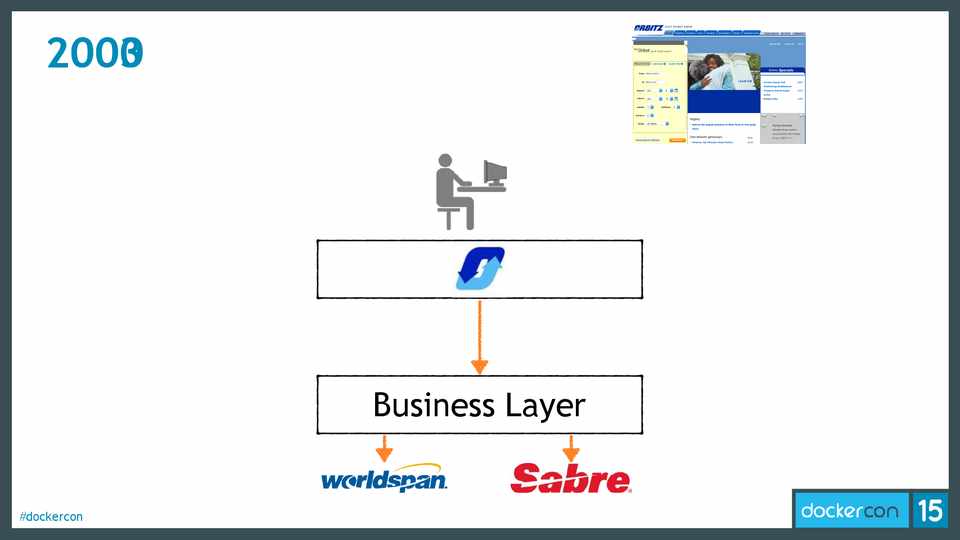

20030

#dockercon

Business Layer

第13页

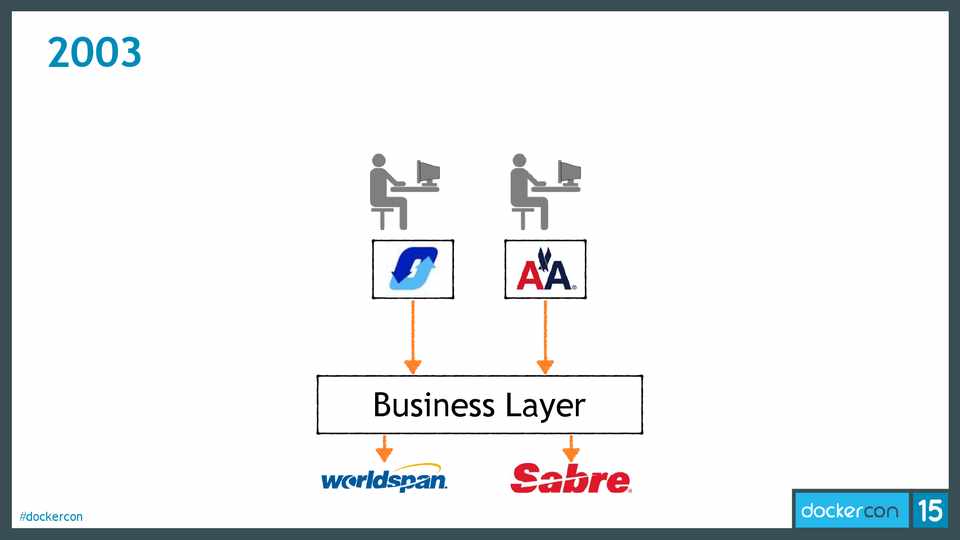

2003

#dockercon

Business Layer

第14页

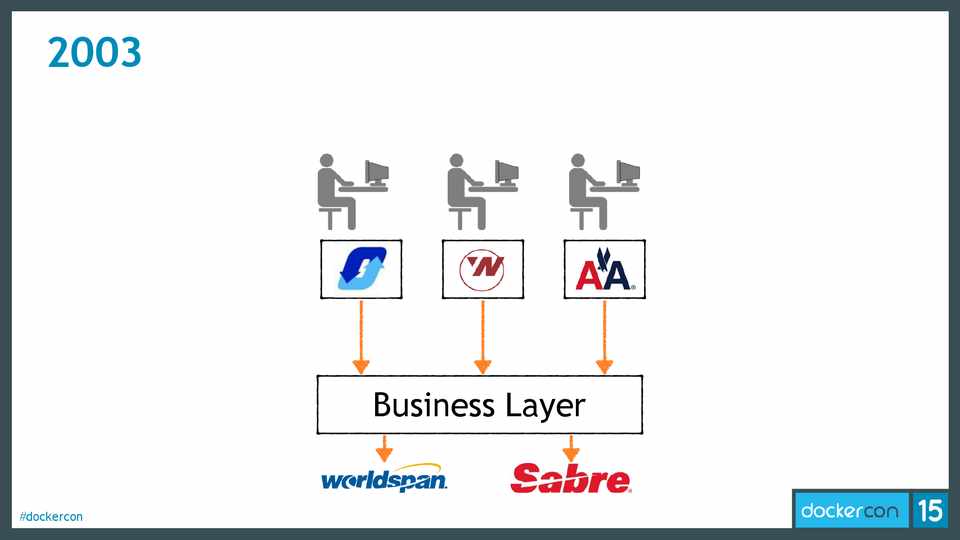

2003

#dockercon

Business Layer

第15页

20034

#dockercon

第16页

2004

#dockercon

第17页

201024

#dockercon

第18页

20125

• Multiple Brands • Websites • Webservices

• Multiple Backends • 500+ apps / thousands of instances • Deployments Daily (sometimes more)

#dockercon

第19页

Process Overkill

#dockercon

第20页

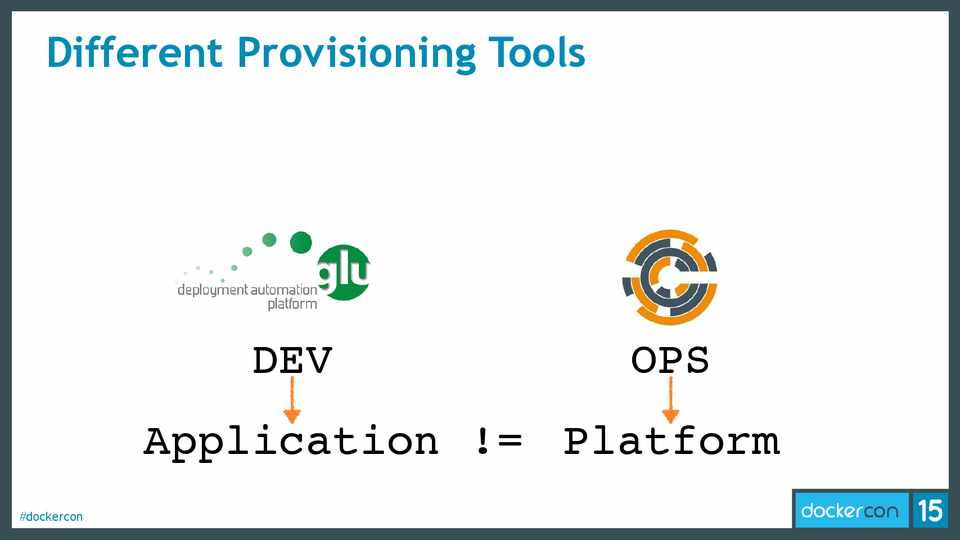

Different Provisioning Tools

DEV OPS Application != Platform

#dockercon

第21页

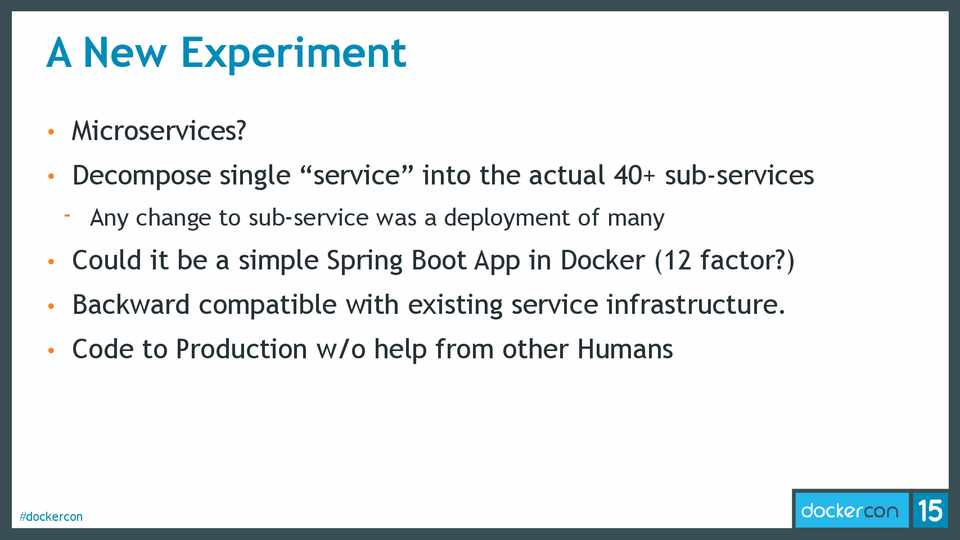

A New Experiment

• Microservices? • Decompose single “service” into the actual 40+ sub-services

- Any change to sub-service was a deployment of many

• Could it be a simple Spring Boot App in Docker (12 factor?) • Backward compatible with existing service infrastructure. • Code to Production w/o help from other Humans

#dockercon

第22页

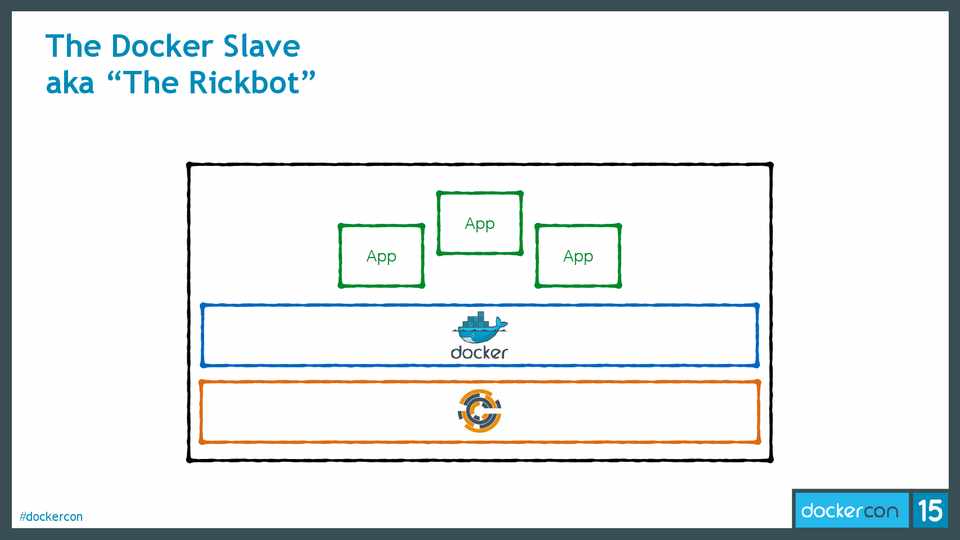

The Docker Slave aka “The Rickbot”

App App App

#dockercon

第23页

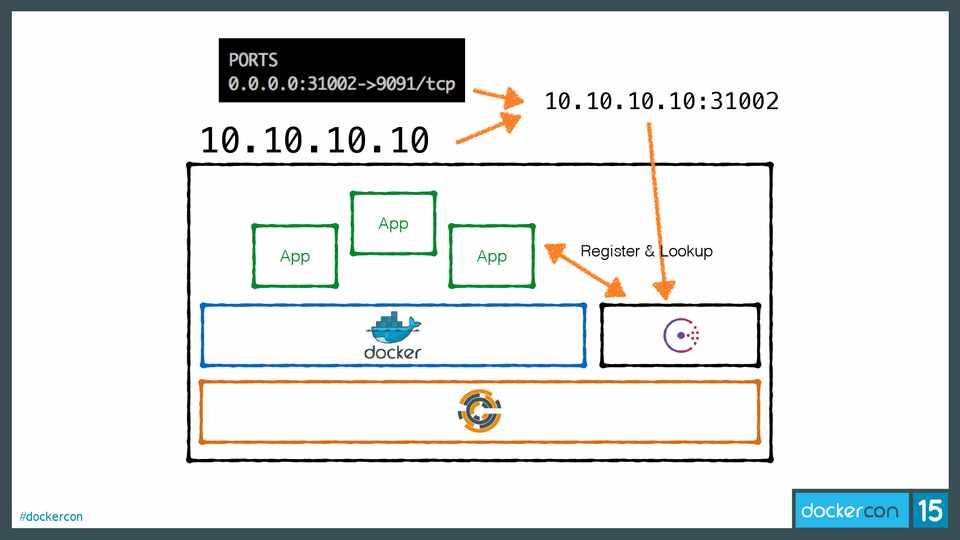

10.10.10.10

10.10.10.10:31002

App App App

Register & Lookup

#dockercon

第24页

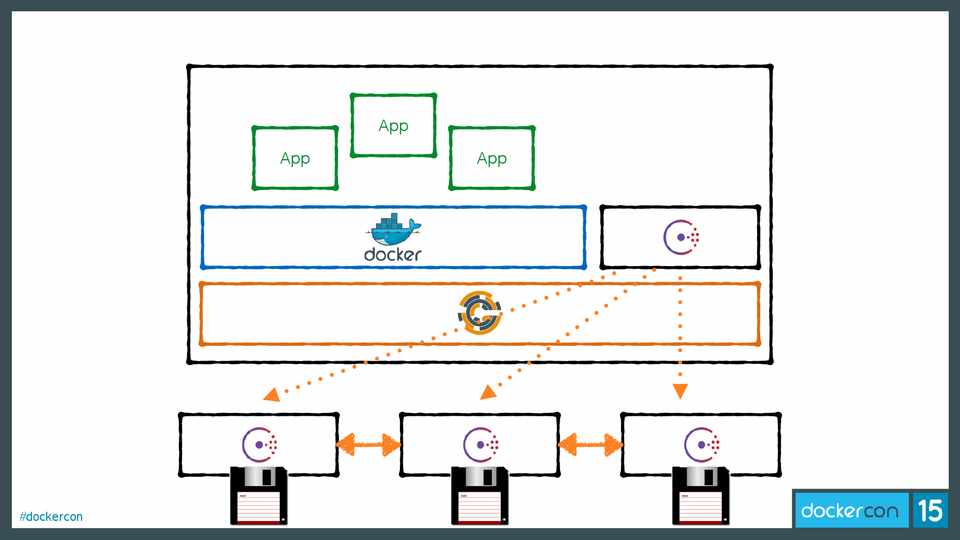

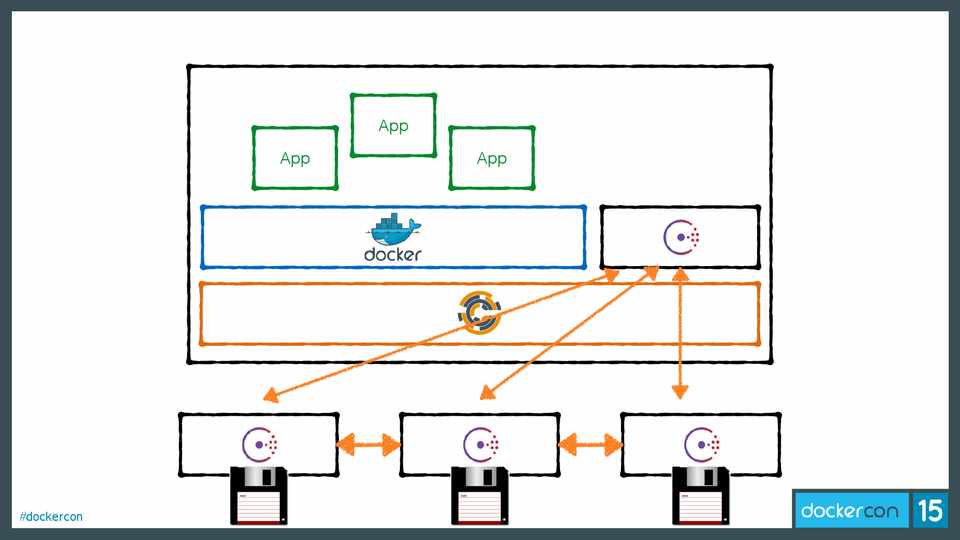

App App App

#dockercon

第25页

App App App

#dockercon

第26页

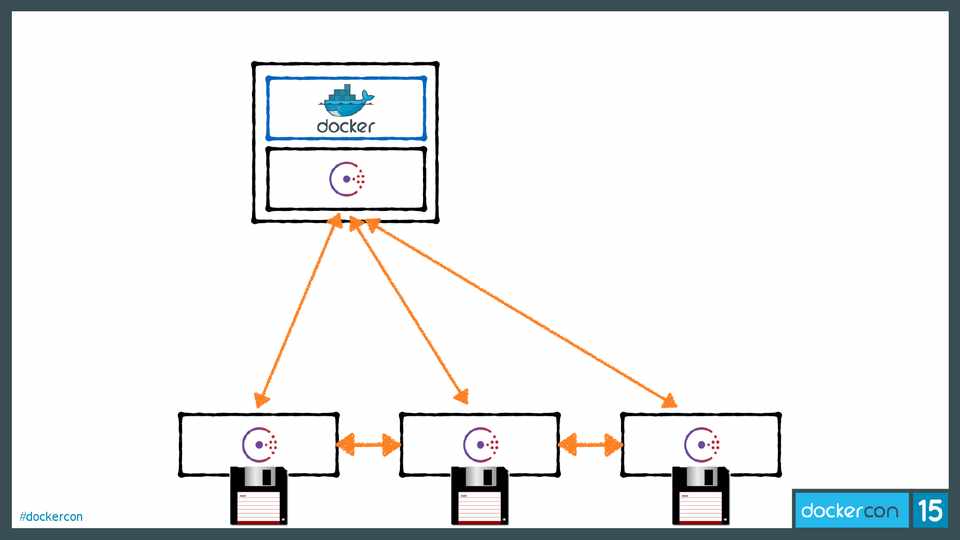

#dockercon

第27页

#dockercon

第28页

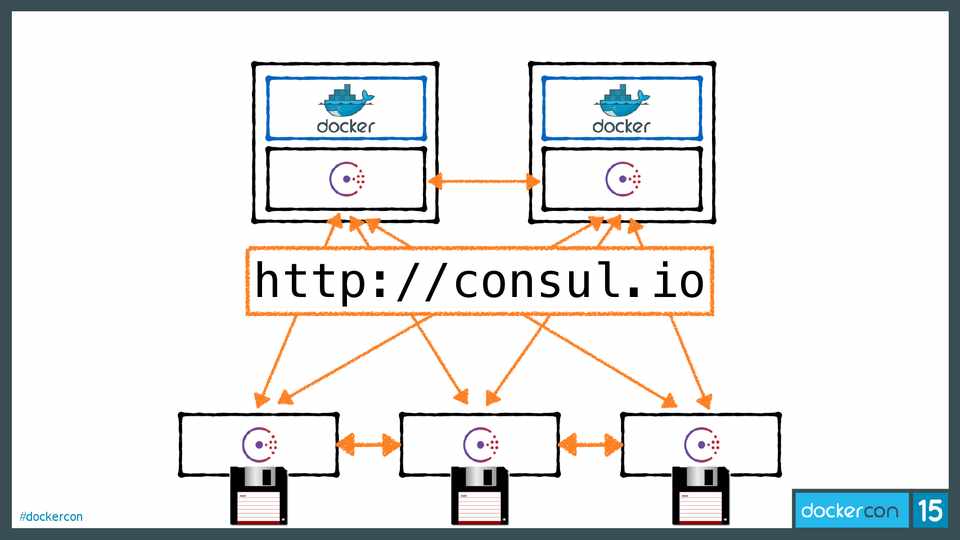

http://consul.io

#dockercon

第29页

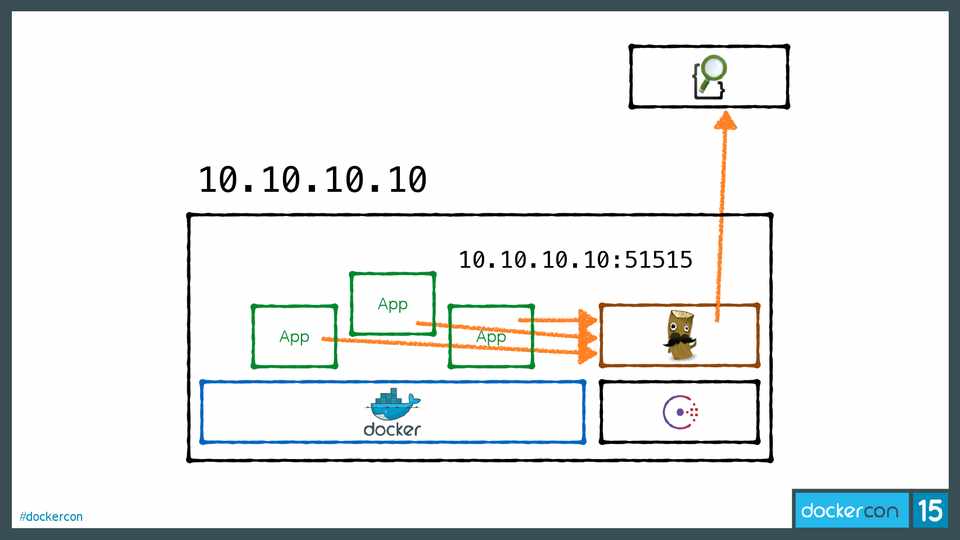

10.10.10.10

10.10.10.10:51515

App App App

#dockercon

第30页

10.10.10.10

10.10.10.10:1337

App App App

#dockercon

第31页

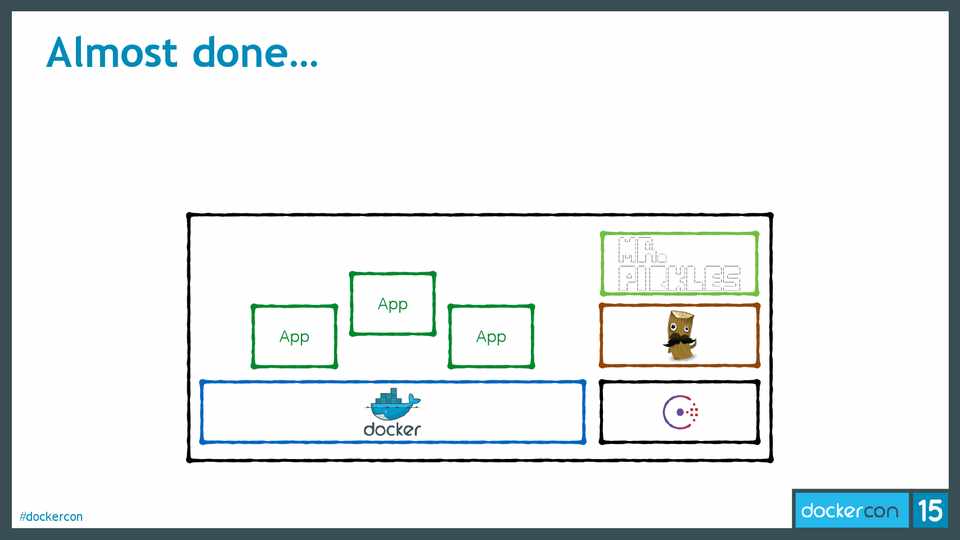

Almost done…

#dockercon

App App App

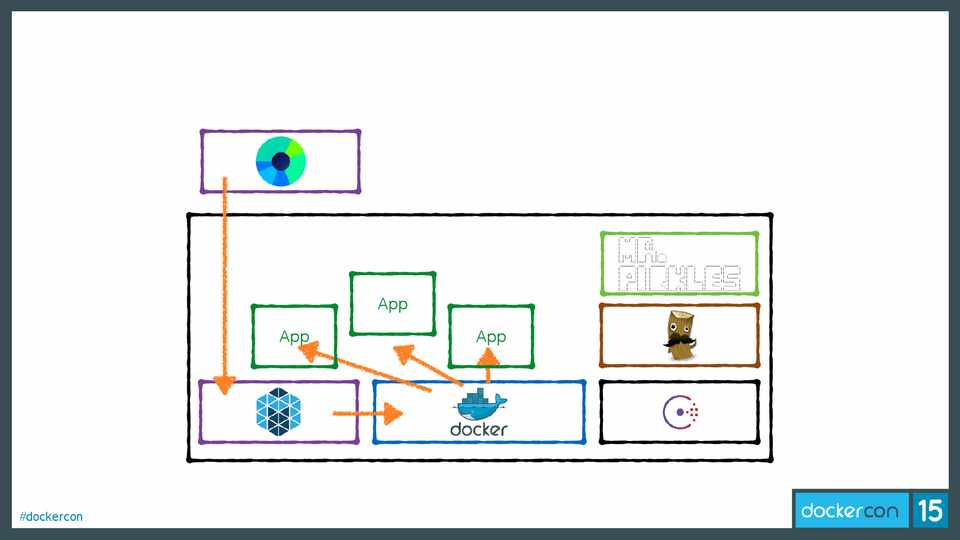

第32页

#dockercon

App App App

第33页

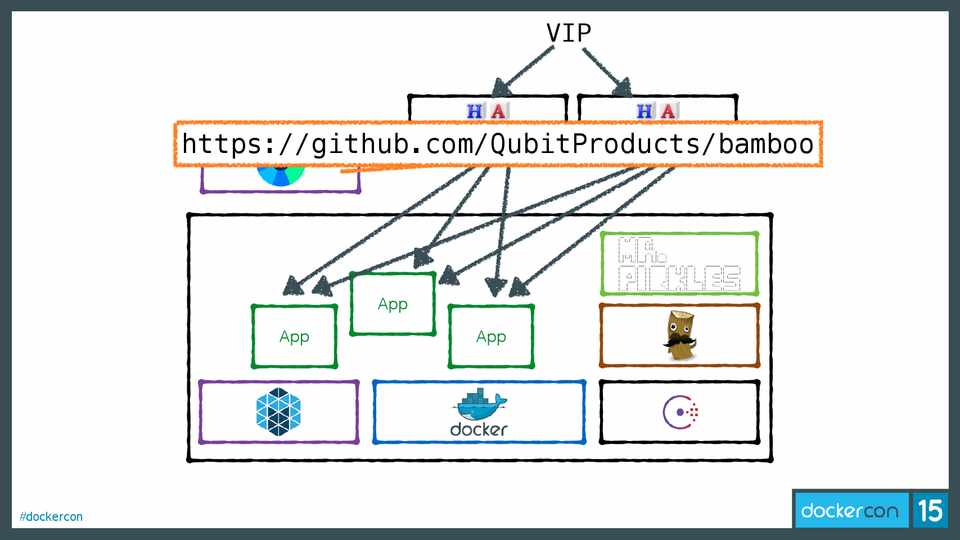

VIP

https://github.com/QubitProducts/bamboo

App App App

#dockercon

第34页

App App App

#dockercon

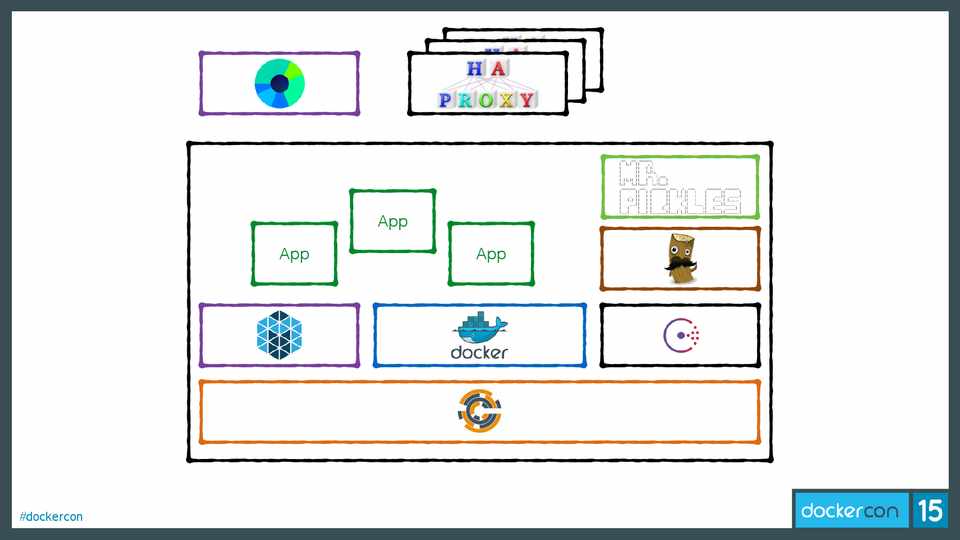

第35页

App App App

#dockercon

第36页

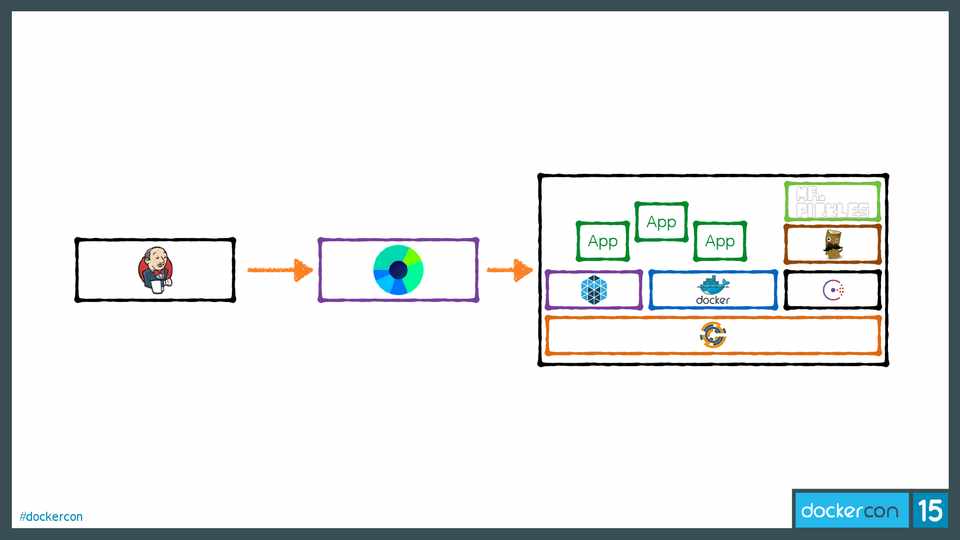

#dockercon

App App App

第37页

A Little More Background

第38页

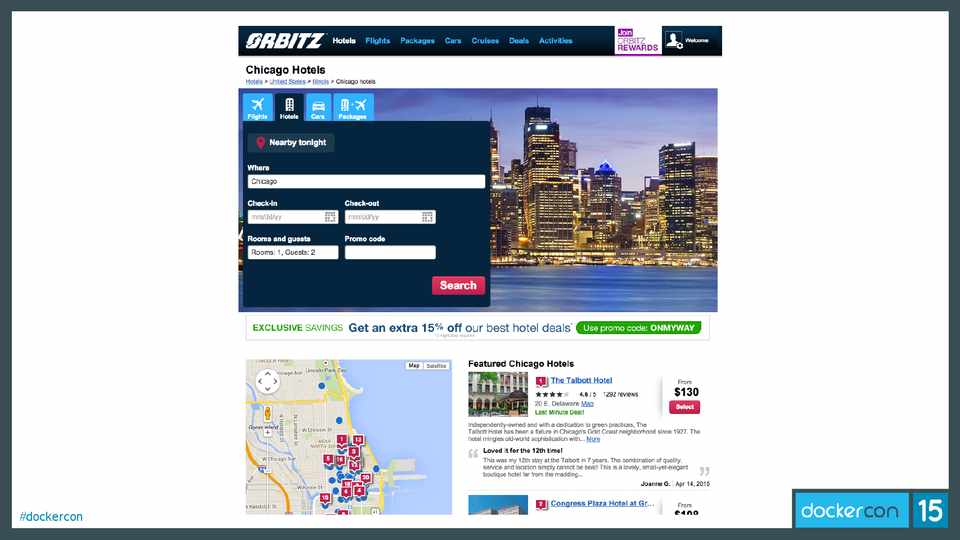

#dockercon

第39页

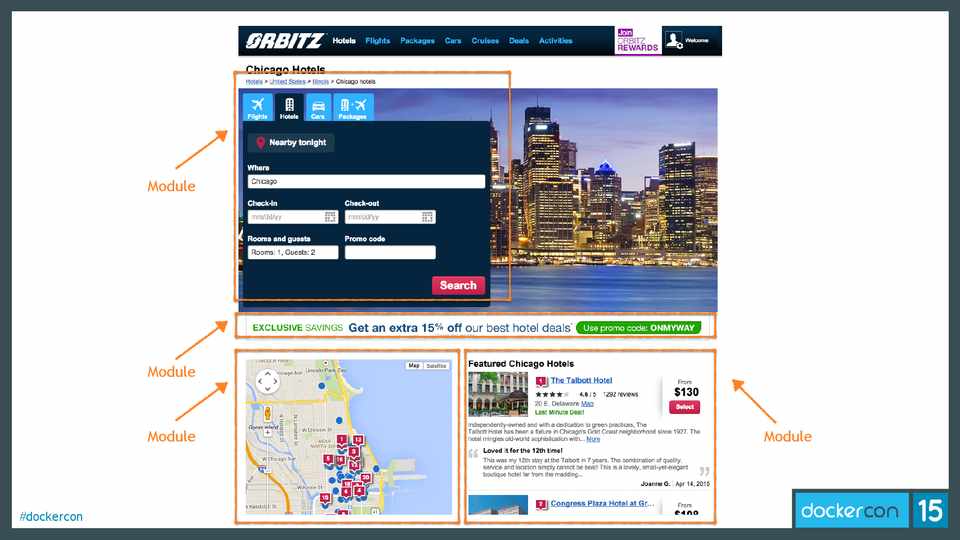

Module

Module Module

#dockercon

Module

第40页

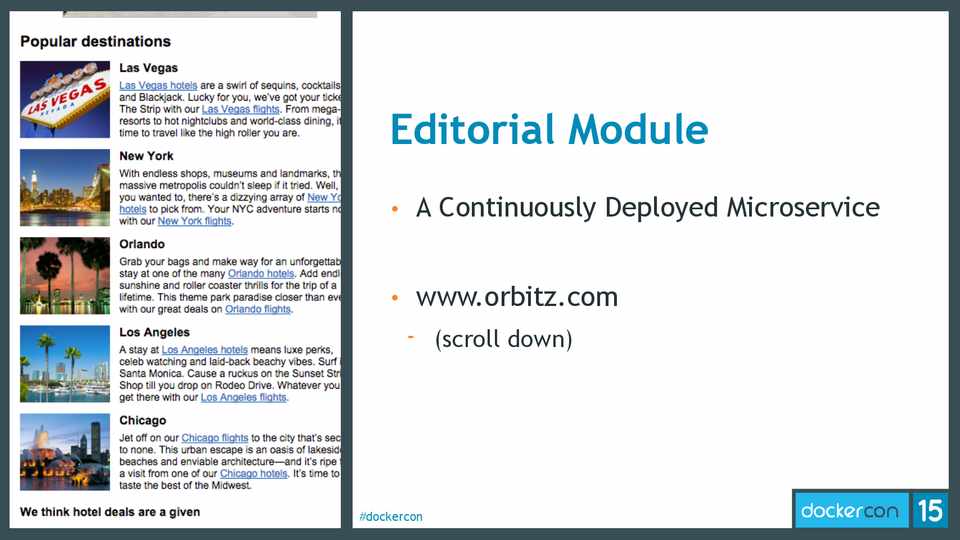

Editorial Module

• A Continuously Deployed Microservice • www.orbitz.com

- (scroll down)

#dockercon

第41页

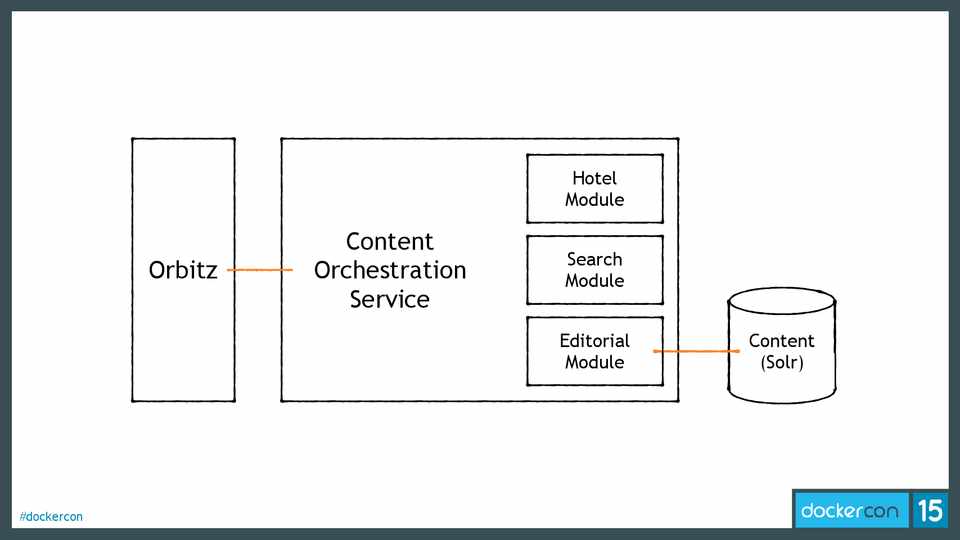

Orbitz

Content Orchestration

Service

Hotel Module

Search Module

Editorial Module

Content (Solr)

#dockercon

第42页

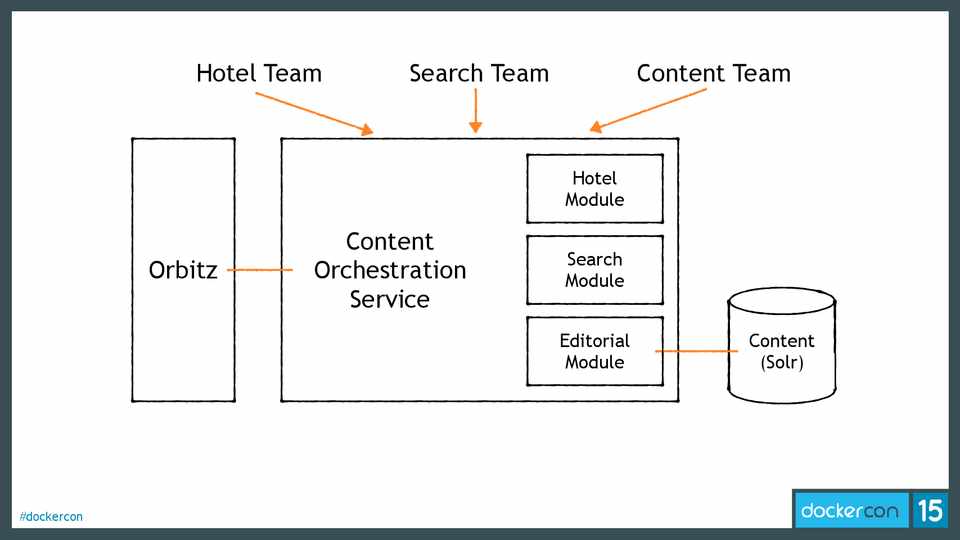

Hotel Team

Search Team

Content Team

Orbitz

Content Orchestration

Service

Hotel Module

Search Module

Editorial Module

Content (Solr)

#dockercon

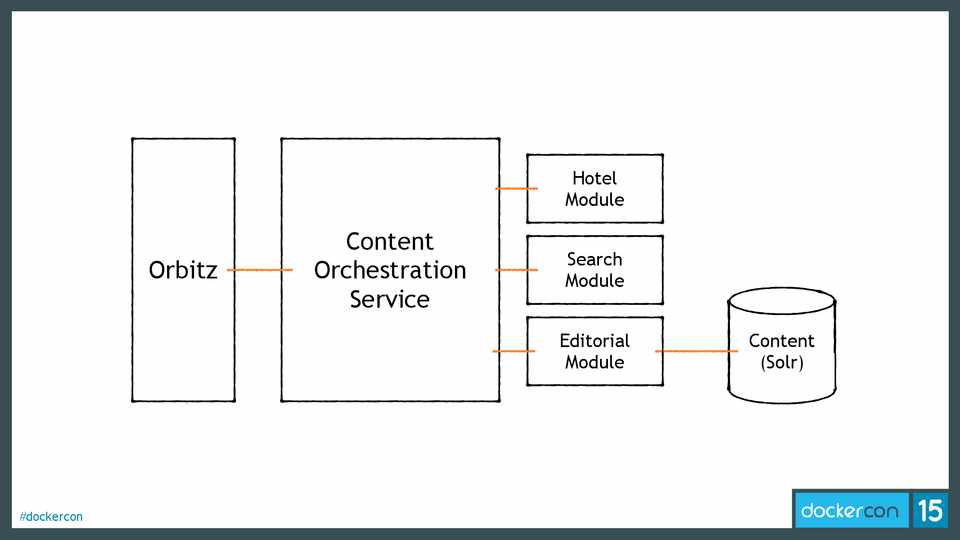

第43页

Orbitz

Content Orchestration

Service

Hotel Module

Search Module

Editorial Module

Content (Solr)

#dockercon

第44页

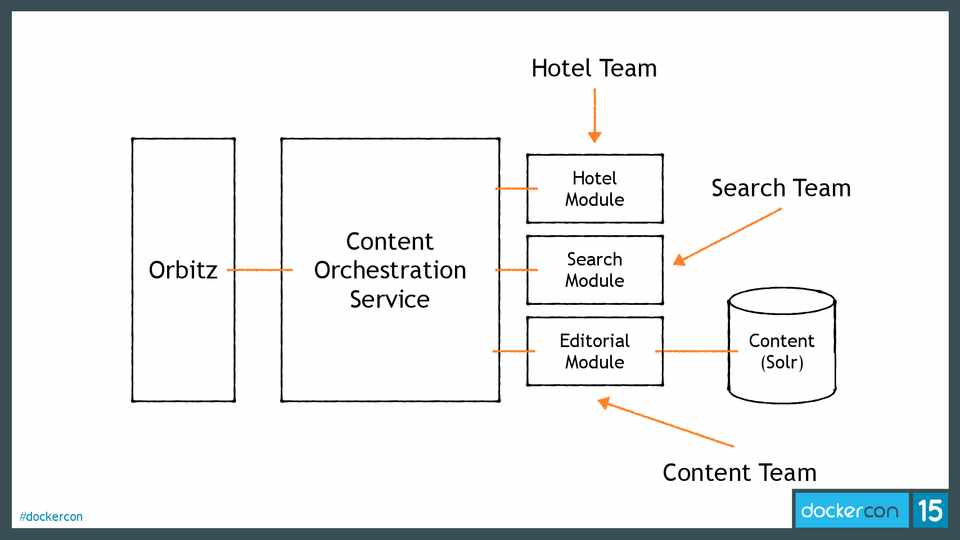

Orbitz

#dockercon

Hotel Team

Content Orchestration

Service

Hotel Module

Search Module

Editorial Module

Search Team

Content (Solr)

Content Team

第45页

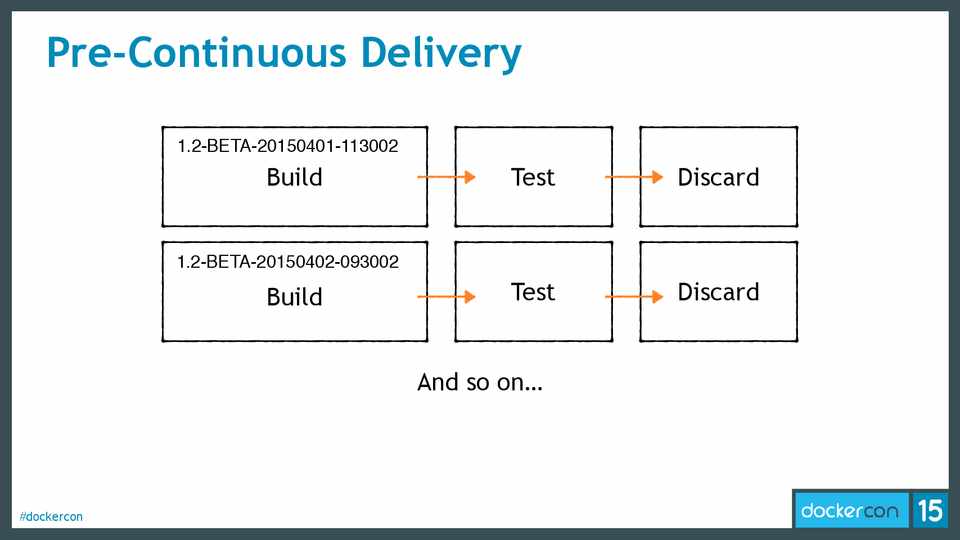

Pre-Continuous Delivery

1.2-BETA-20150401-113002

Build

Test

1.2-BETA-20150402-093002

Build

Test

And so on…

Discard Discard

#dockercon

第46页

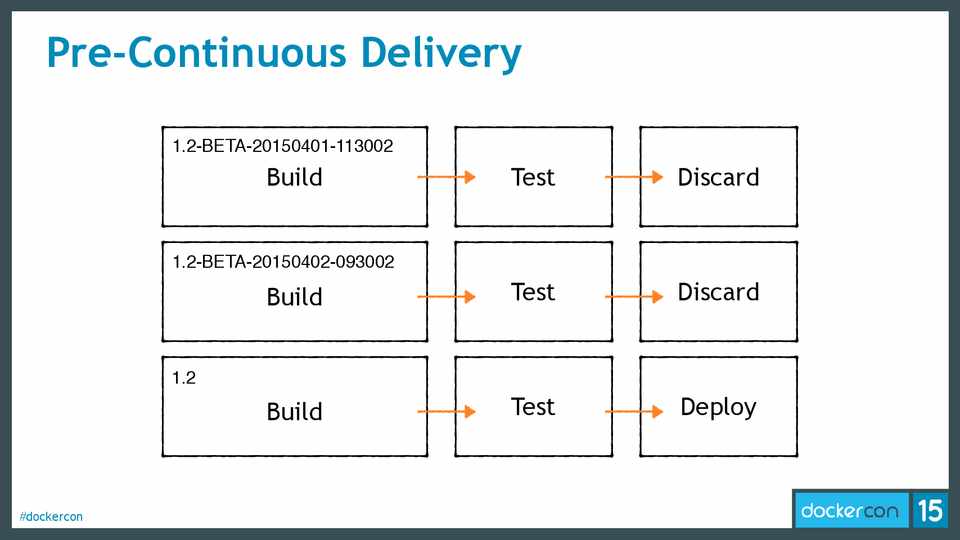

Pre-Continuous Delivery

1.2-BETA-20150401-113002

Build

1.2-BETA-20150402-093002

Build

1.2

Build

Test Test Test

#dockercon

Discard Discard Deploy

第47页

Continuous Delivery with Jenkins, Docker, and Ansible (And then Marathon)

第48页

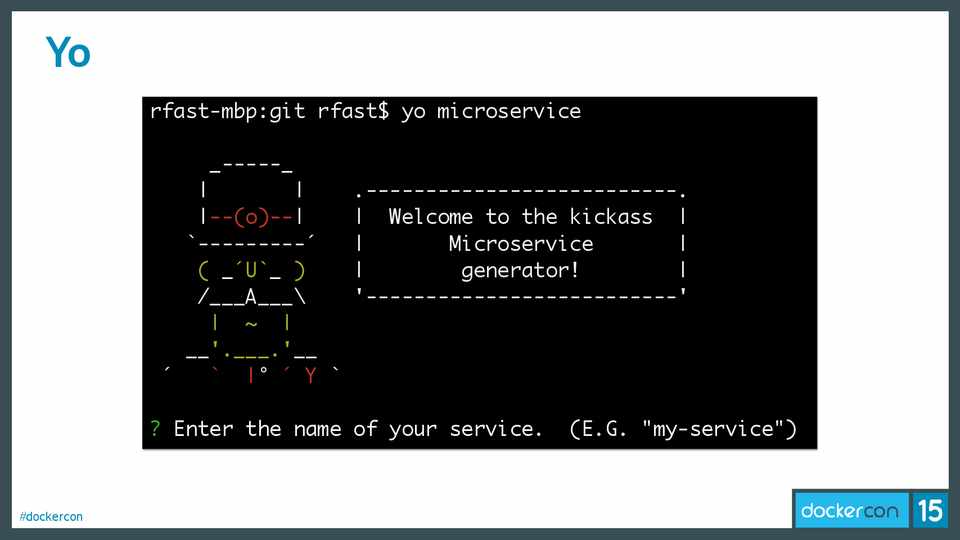

Yo

rfast-mbp:git rfast$ yo microservice

_-----_

| | .--------------------------.

|--(o)--| | Welcome to the kickass |

`---------´ |

Microservice

|

( _´U`_ ) |

generator!

|

/___A___\ '--------------------------'

|~|

__'.___.'__

´ ` |° ´ Y `

? Enter the name of your service. (E.G. "my-service")

#dockercon

第49页

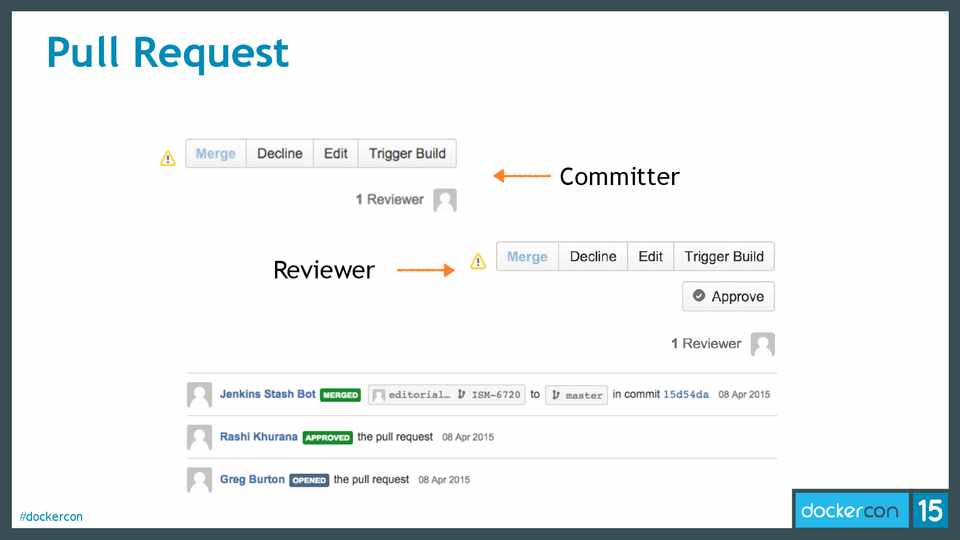

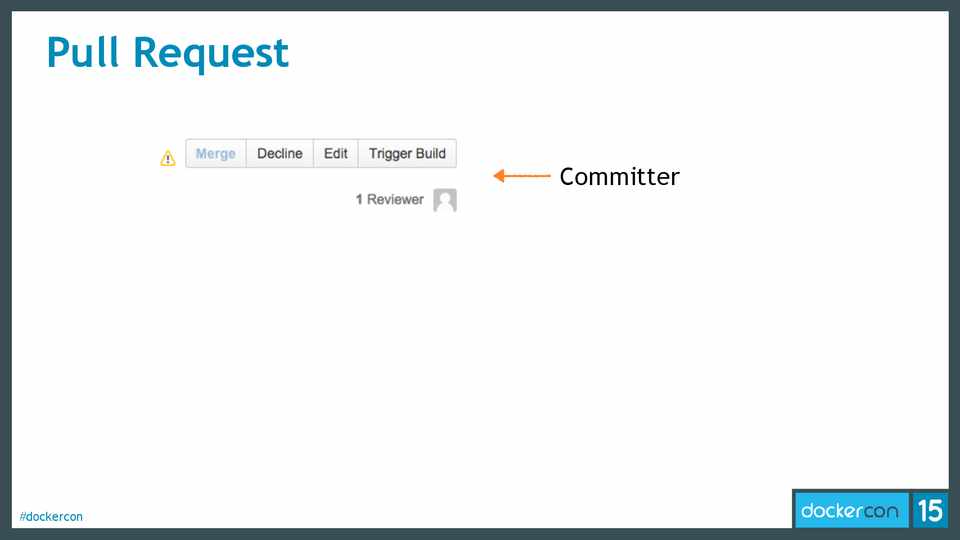

Pull Request

Committer

#dockercon

第50页

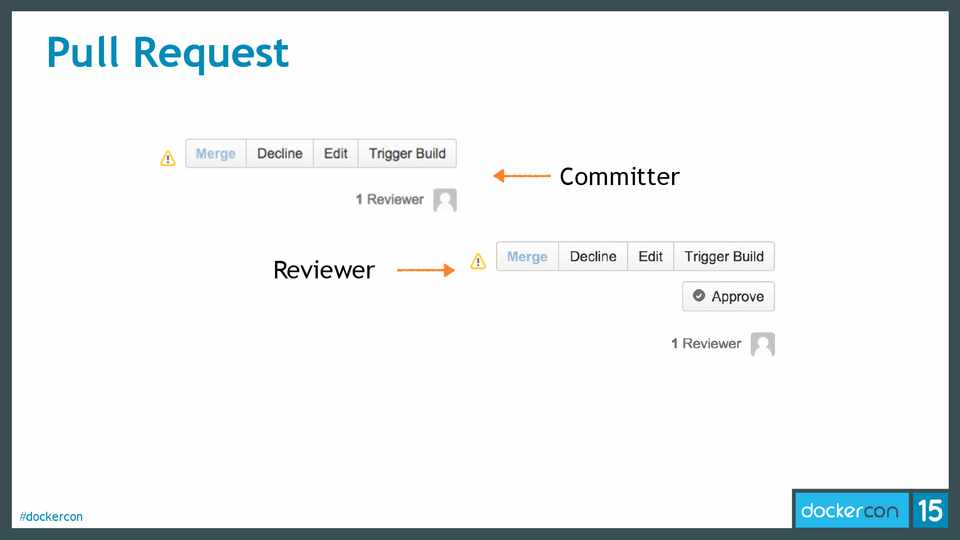

Pull Request

Reviewer

Committer

#dockercon

第51页

Pull Request

Reviewer

Committer

#dockercon

第52页

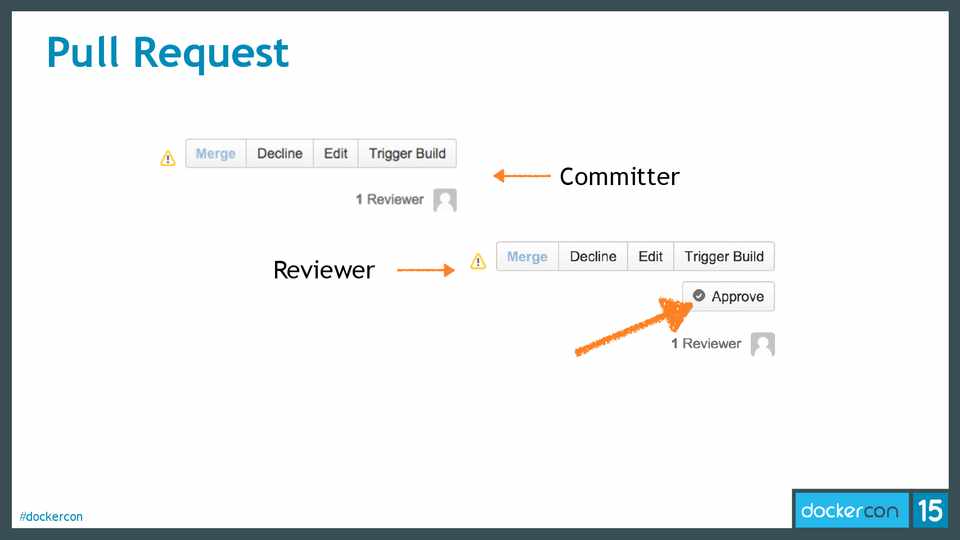

Pull Request

Reviewer

Committer

#dockercon

第53页

Jenkins Pipeline

第54页

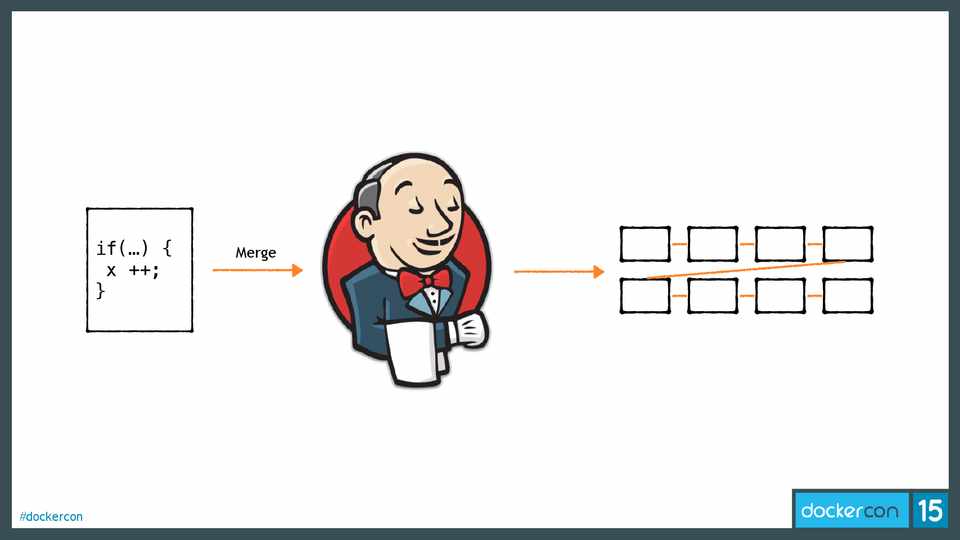

if(…) { x ++;

}

Merge

#dockercon

第55页

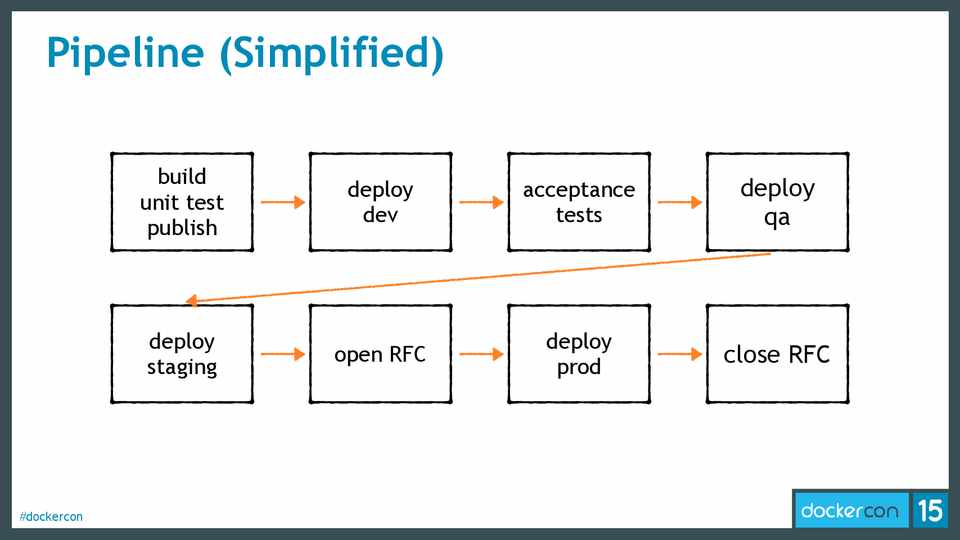

Pipeline (Simplified)

build unit test publish deploy staging

deploy dev

acceptance tests

deploy qa

open RFC

deploy prod

close RFC

#dockercon

第56页

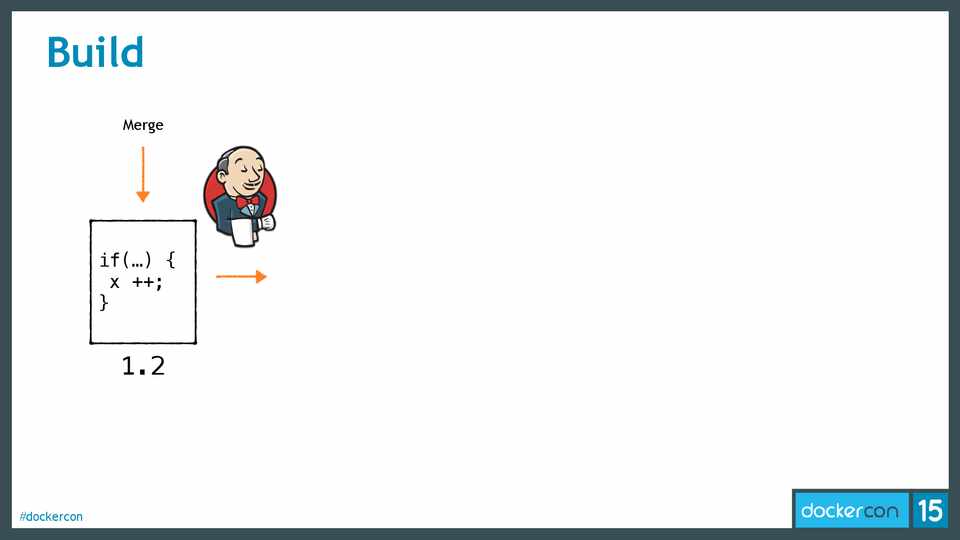

Build

Merge

if(…) { x ++;

}

1.2

#dockercon

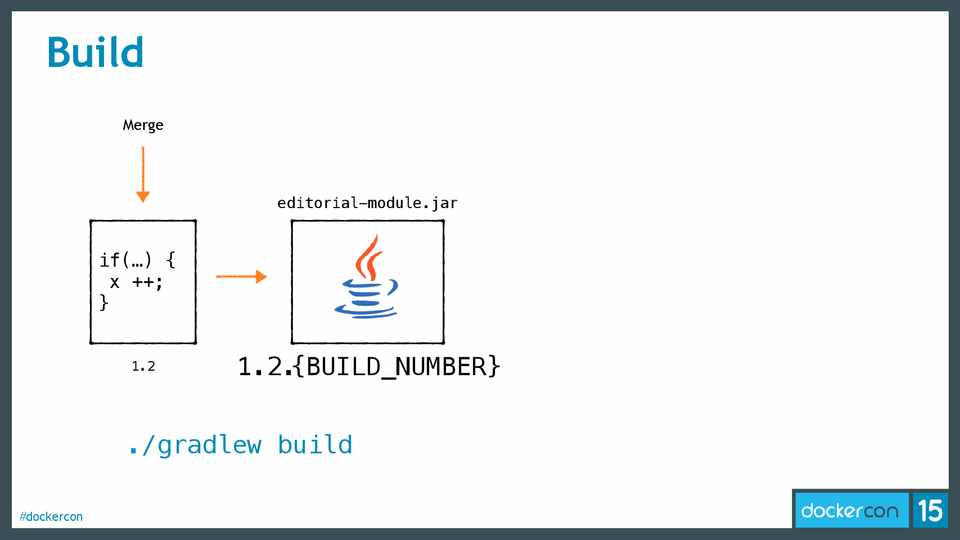

第57页

Build

Merge

if(…) { x ++;

}

1.2

editorial-module.jar

1.2.{BUILD_NUMBER}

./gradlew build

#dockercon

第58页

Build

Merge

if(…) { x ++;

}

1.2

editorial-module.jar

1.2.17

#dockercon

第59页

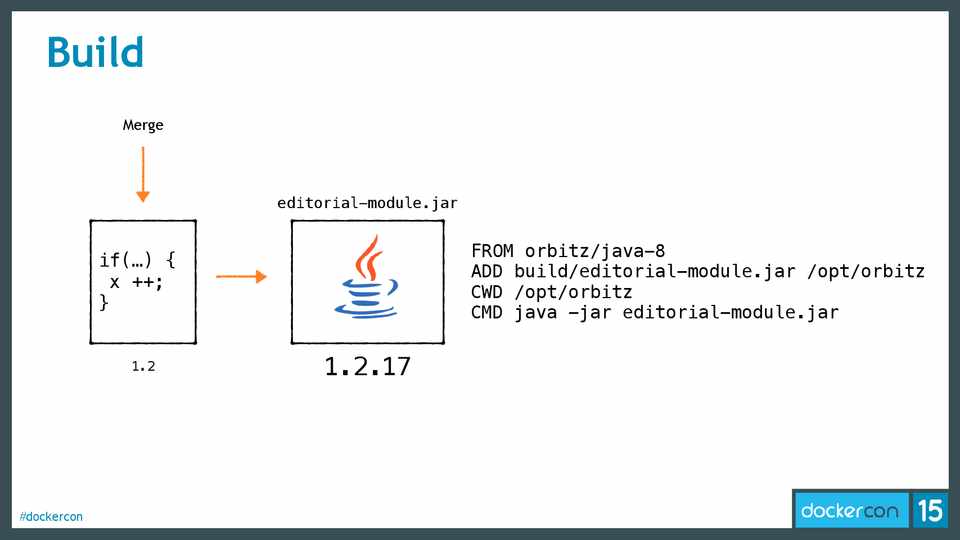

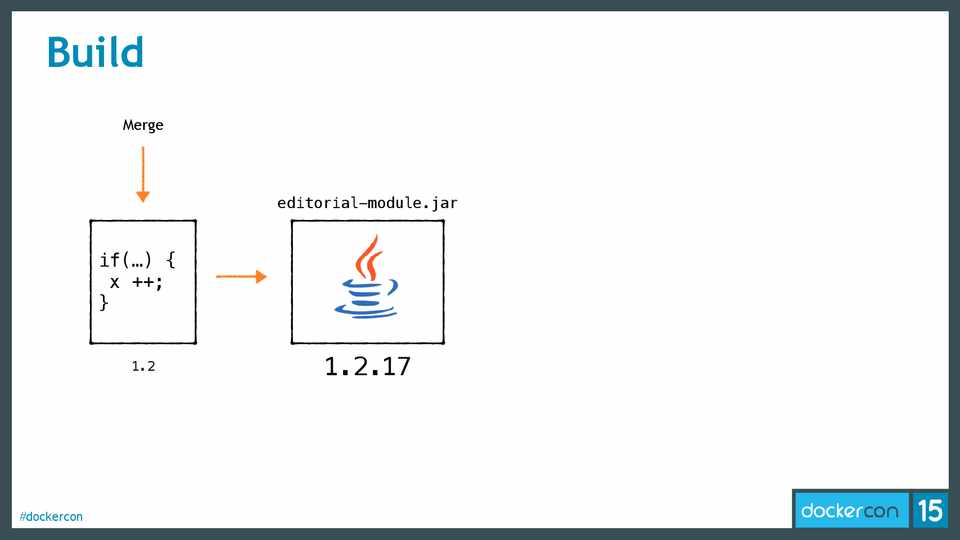

Build

Merge

if(…) { x ++;

}

1.2

editorial-module.jar

FROM orbitz/java-8 ADD build/editorial-module.jar /opt/orbitz CWD /opt/orbitz CMD java -jar editorial-module.jar

1.2.17

#dockercon

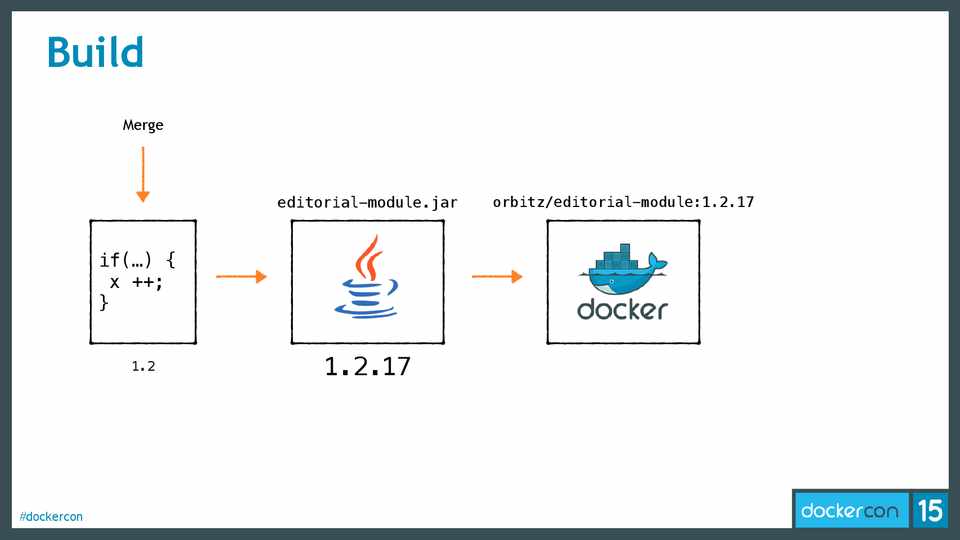

第60页

Build

Merge

if(…) { x ++;

}

1.2

editorial-module.jar orbitz/editorial-module:1.2.17

1.2.17

#dockercon

第61页

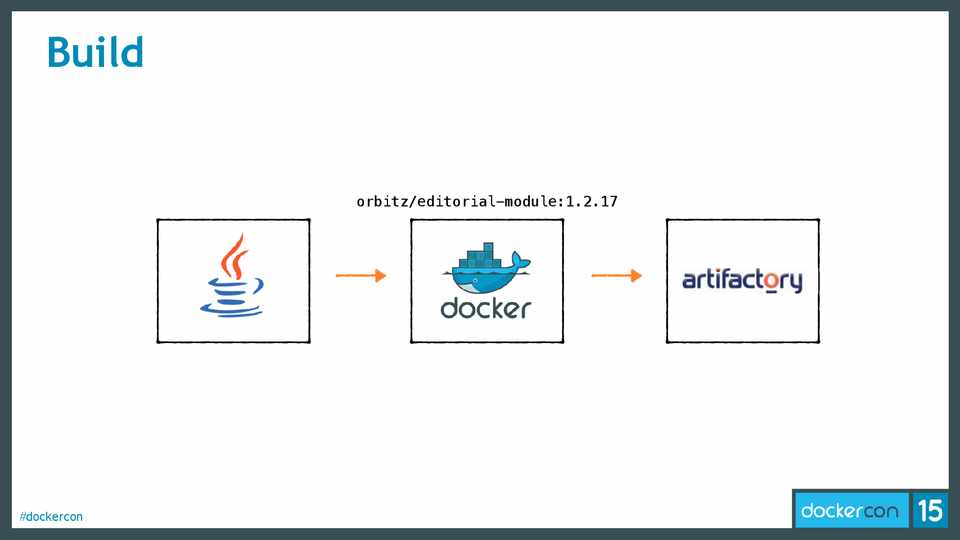

Build

orbitz/editorial-module:1.2.17

#dockercon

第62页

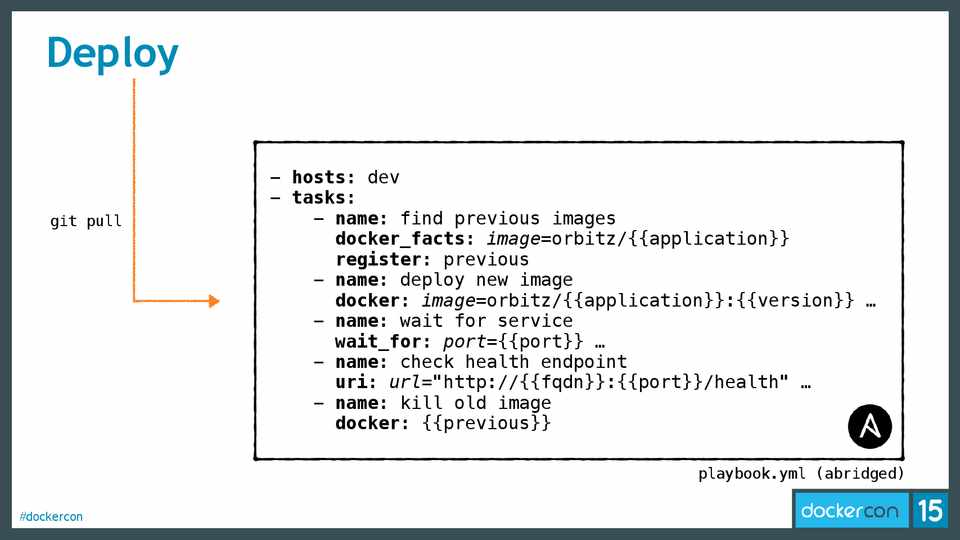

Deploy

git pull

#dockercon

- hosts: dev - tasks:

- name: find previous images docker_facts: image=orbitz/{{application}} register: previous

- name: deploy new image docker: image=orbitz/{{application}}:{{version}} …

- name: wait for service wait_for: port={{port}} …

- name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" …

- name: kill old image docker: {{previous}}

playbook.yml (abridged)

第63页

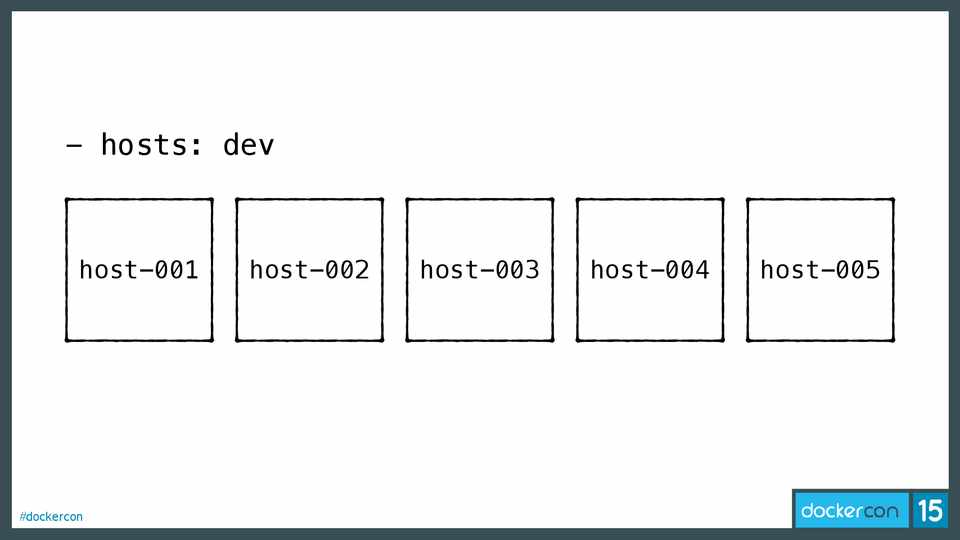

- hosts: dev

host-001 host-002 host-003 host-004 host-005

#dockercon

第64页

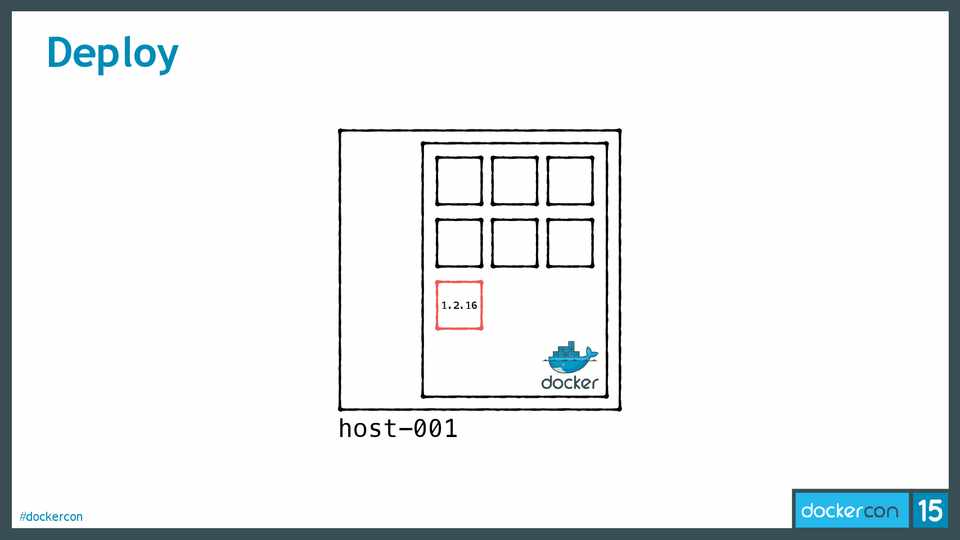

Deploy

#dockercon

1.2.16

host-001

第65页

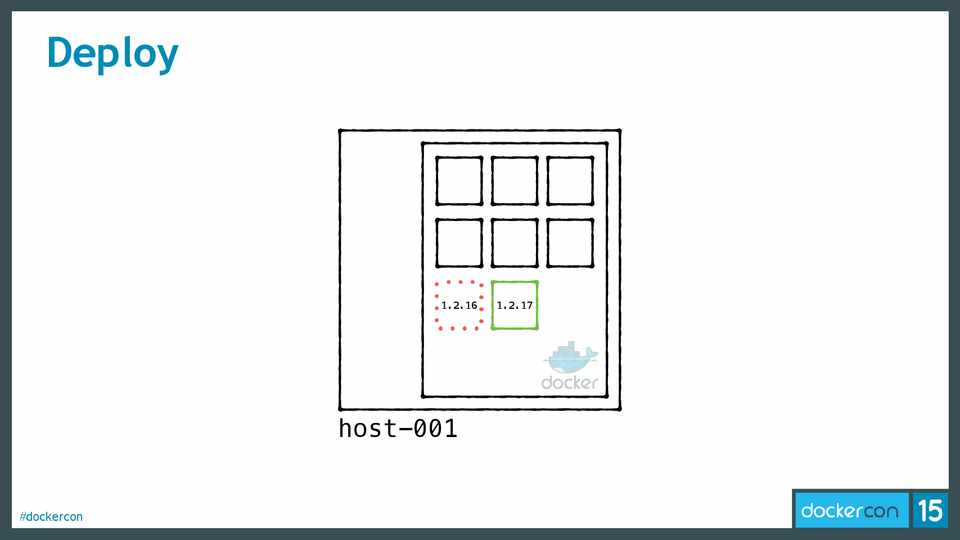

Deploy

#dockercon

1.2.16 1.2.17

host-001

第66页

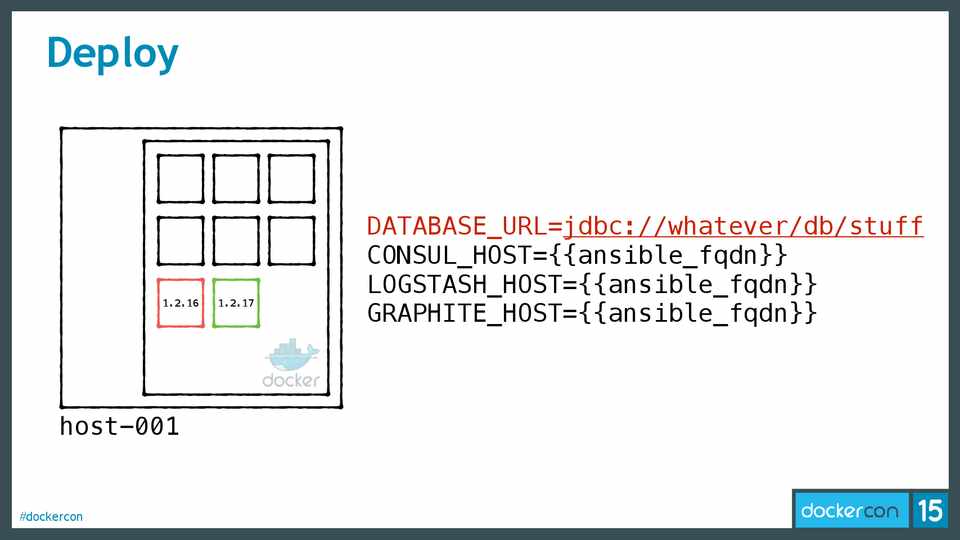

Deploy

1.2.16 1.2.17

host-001

#dockercon

DATABASE_URL=jdbc://whatever/db/stuff CONSUL_HOST={{ansible_fqdn}} LOGSTASH_HOST={{ansible_fqdn}} GRAPHITE_HOST={{ansible_fqdn}}

第67页

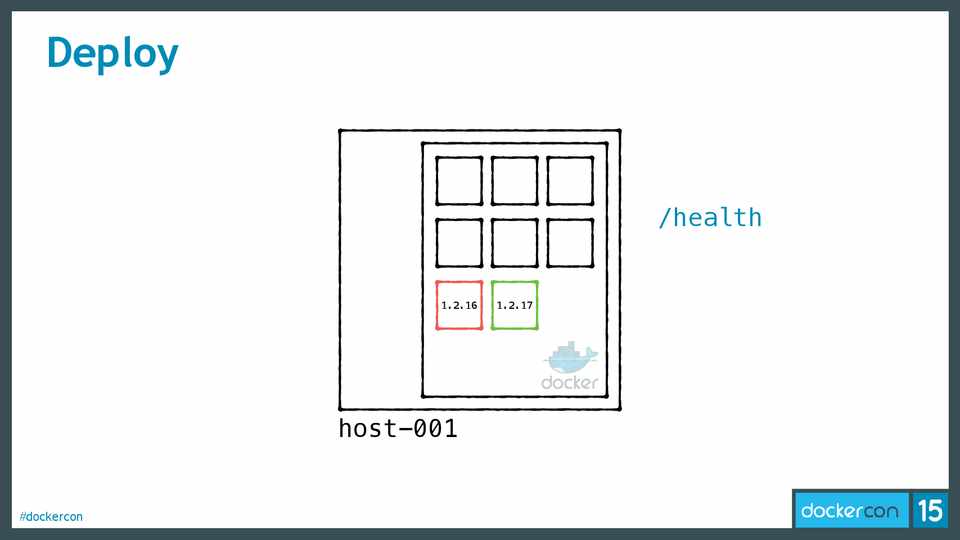

Deploy

#dockercon

1.2.16 1.2.17

host-001

/health

第68页

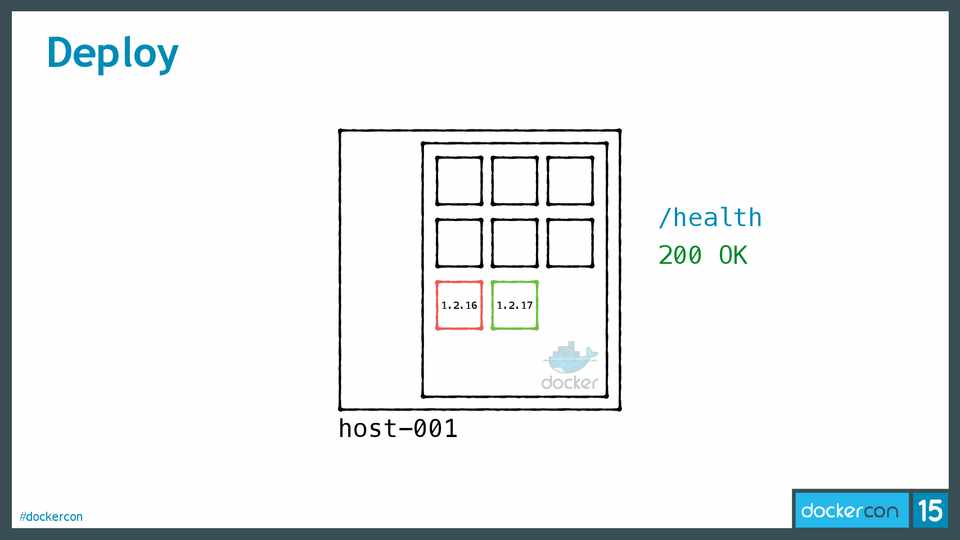

Deploy

#dockercon

1.2.16 1.2.17

host-001

/health 200 OK

第69页

Deploy

#dockercon

1.2.16 1.2.17

host-001

第70页

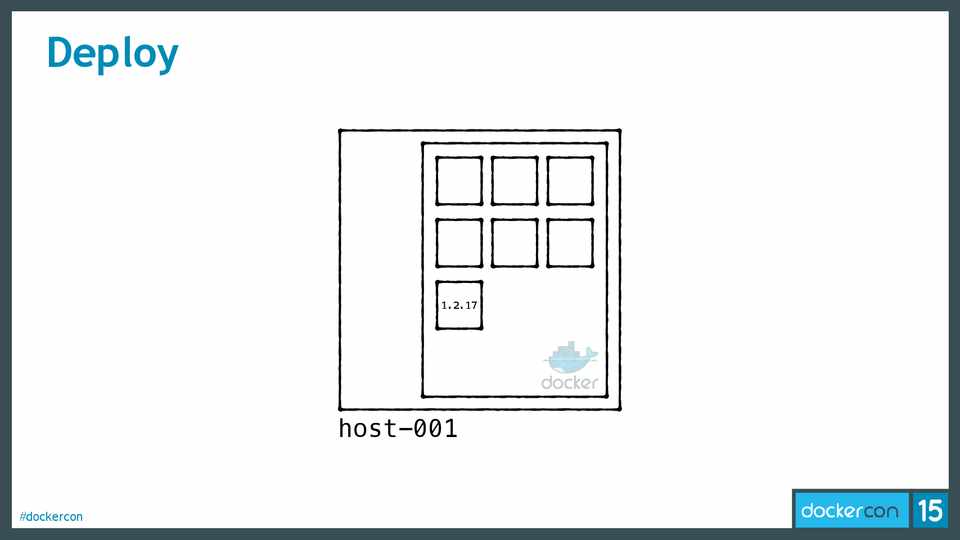

Deploy

#dockercon

1.2.17

host-001

第71页

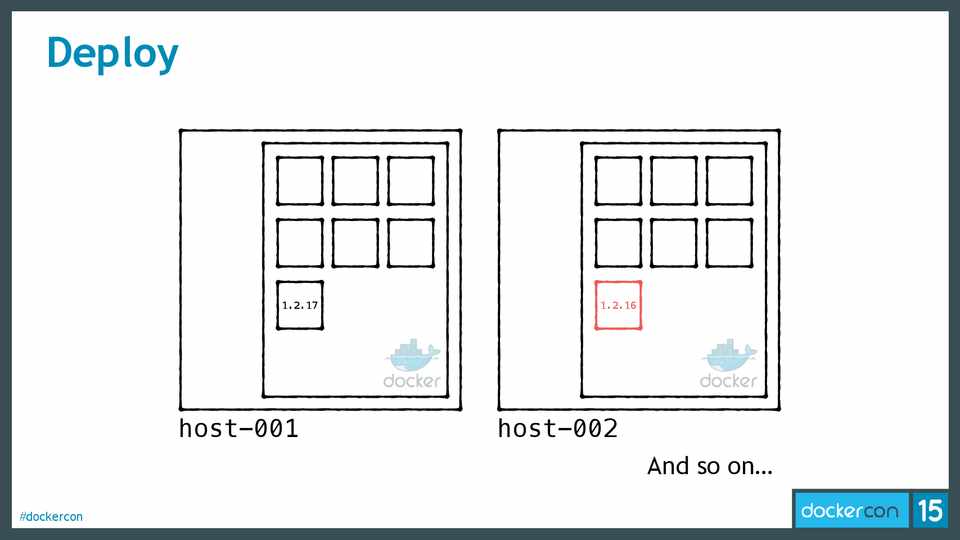

Deploy

1.2.17

#dockercon

host-001

1.2.16

host-002 And so on…

第72页

#dockercon

What’s next?

第73页

How to handle failure?

#dockercon

第74页

What happens when a VM is moved?

#dockercon

第75页

What if I need to add capacity?

#dockercon

第76页

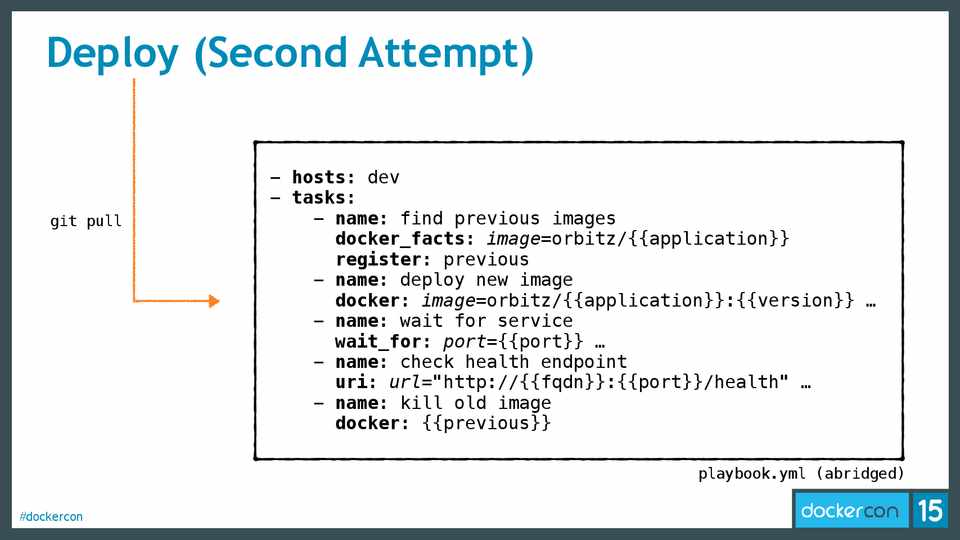

Deploy (Second Attempt)

git pull

#dockercon

- hosts: dev - tasks:

- name: find previous images docker_facts: image=orbitz/{{application}} register: previous

- name: deploy new image docker: image=orbitz/{{application}}:{{version}} …

- name: wait for service wait_for: port={{port}} …

- name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" …

- name: kill old image docker: {{previous}}

playbook.yml (abridged)

第77页

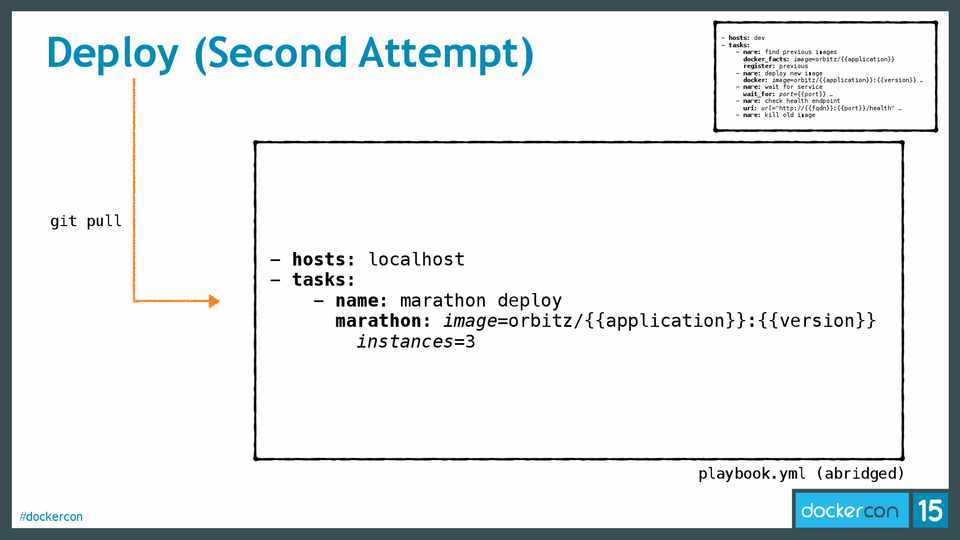

Deploy (Second Attempt)

- hosts: dev - tasks:

- name: find previous images docker_facts: image=orbitz/{{application}} register: previous

- name: deploy new image docker: image=orbitz/{{application}}:{{version}} …

- name: wait for service wait_for: port={{port}} …

- name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" …

- name: kill old image

git pull

- hosts: localhost - tasks:

- name: marathon deploy marathon: image=orbitz/{{application}}:{{version}} instances=3

#dockercon

playbook.yml (abridged)

第78页

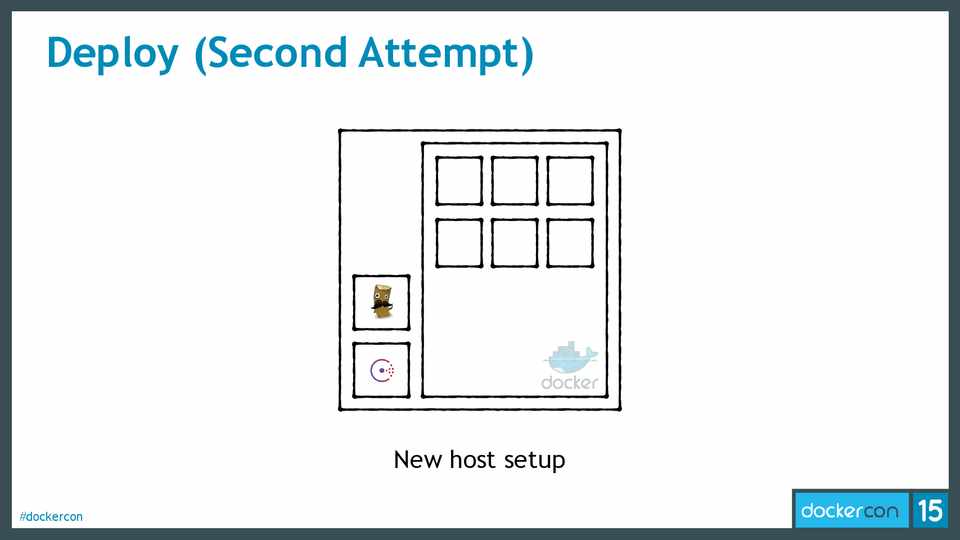

Deploy (Second Attempt)

#dockercon

New host setup

第79页

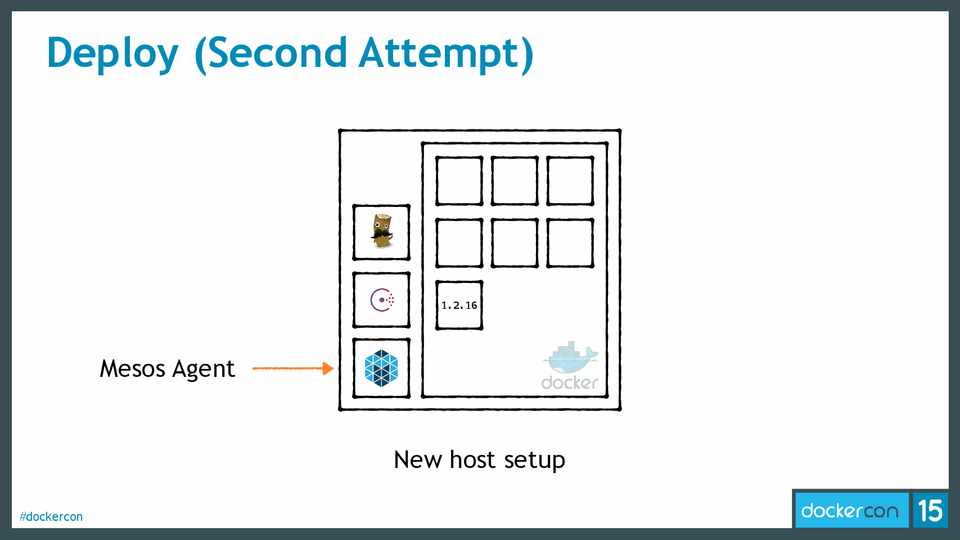

Deploy (Second Attempt)

Mesos Agent

#dockercon

1.2.16

New host setup

第80页

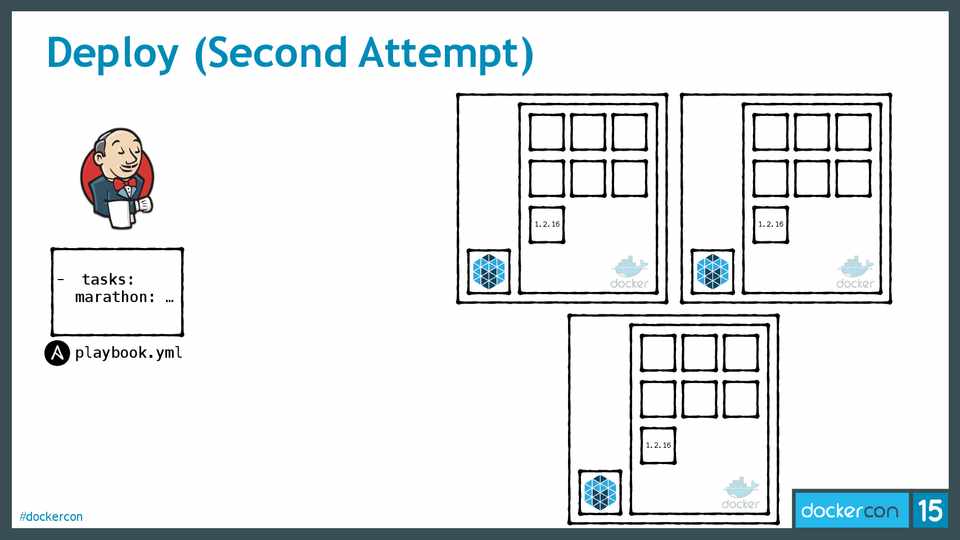

Deploy (Second Attempt)

- tasks: marathon: … playbook.yml

#dockercon

1.2.16

1.2.16

1.2.16

第81页

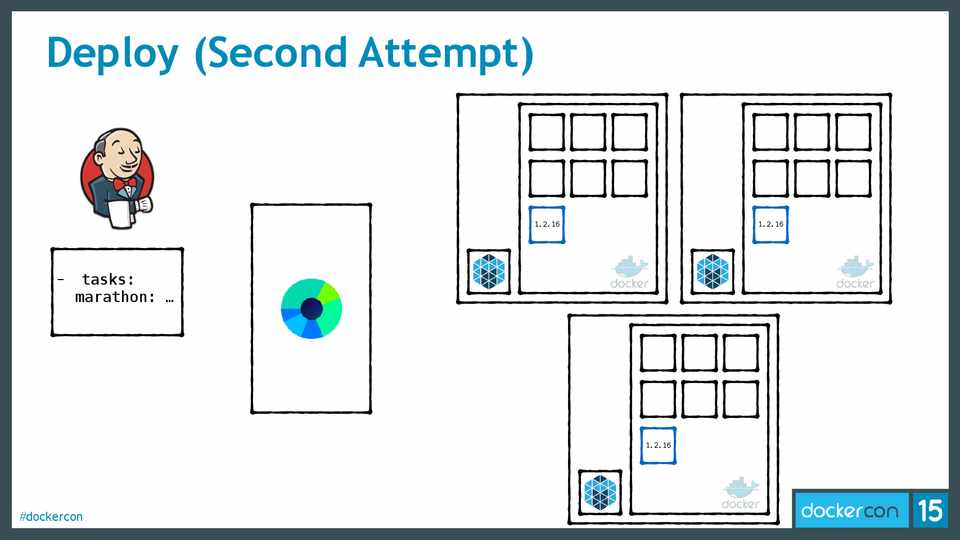

Deploy (Second Attempt)

- tasks: marathon: …

#dockercon

1.2.16

1.2.16

1.2.16

第82页

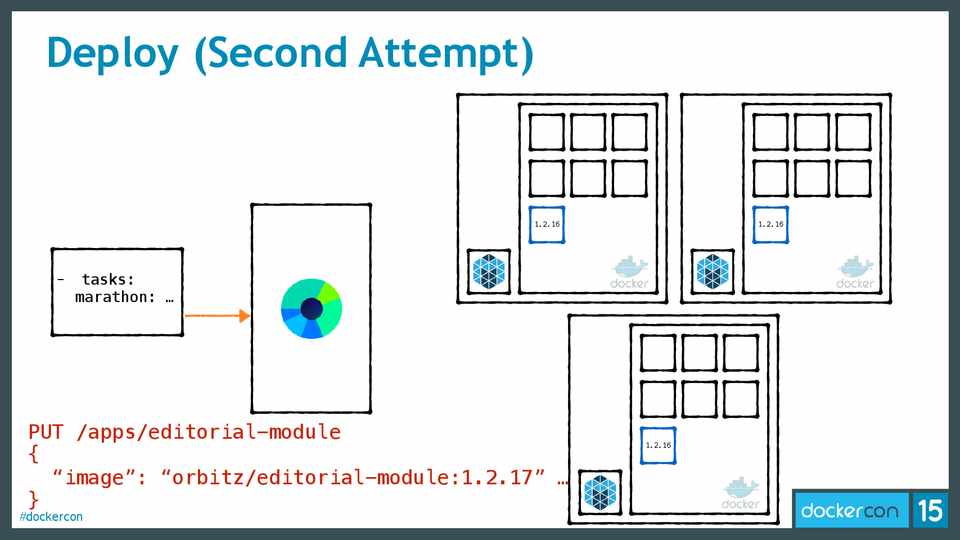

Deploy (Second Attempt)

- tasks: marathon: …

1.2.16

1.2.16

PUT /apps/editorial-module {

“image”: “orbitz/editorial-module:1.2.17” … }

#dockercon

1.2.16

第83页

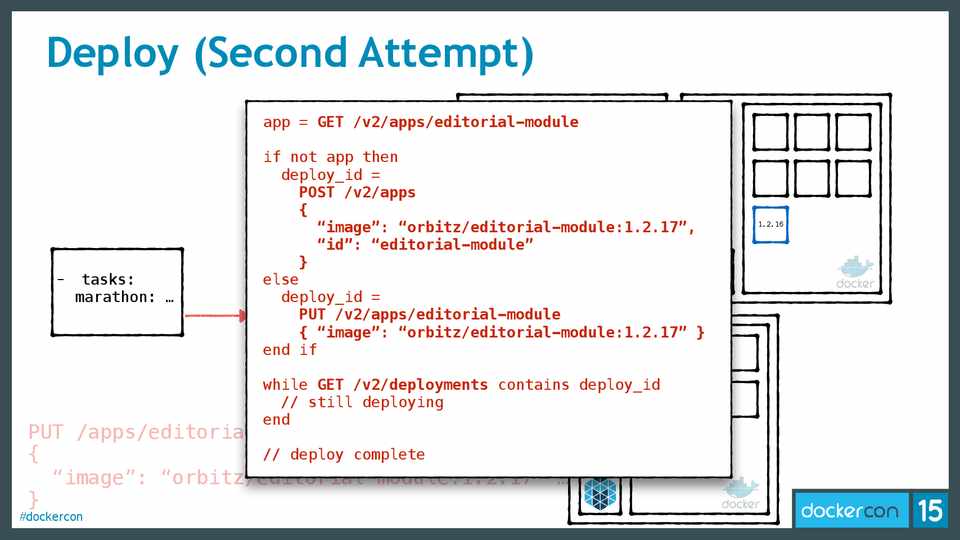

Deploy (Second Attempt)

app = GET /v2/apps/editorial-module

- tasks: marathon: …

if not app then deploy_id = POST /v2/apps { “image”: “orbitz/editoria1.2l.1-6module:1.2.17”, “id”: “editorial-module” }

else deploy_id = PUT /v2/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” }

end if

while GET /v2/deployments contains deploy_id

// still deploying

PUT /apps/editorial-emnod dule

{ // deploy complete

1.2.16

“image”: “orbitz/editorial-module:1.2.17” …

}

#dockercon

1.2.16

第84页

Deploy (Second Attempt)

- tasks: marathon: …

1.2.16

1.2.16

PUT /apps/editorial-module {

“image”: “orbitz/editorial-module:1.2.17” … }

#dockercon

1.2.16

第85页

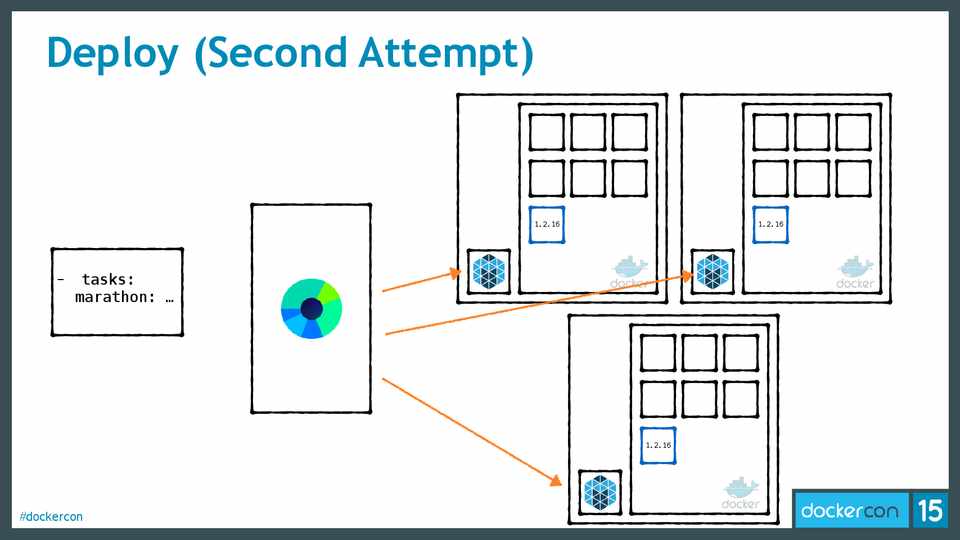

Deploy (Second Attempt)

- tasks: marathon: …

#dockercon

1.2.16

1.2.16

1.2.16

第86页

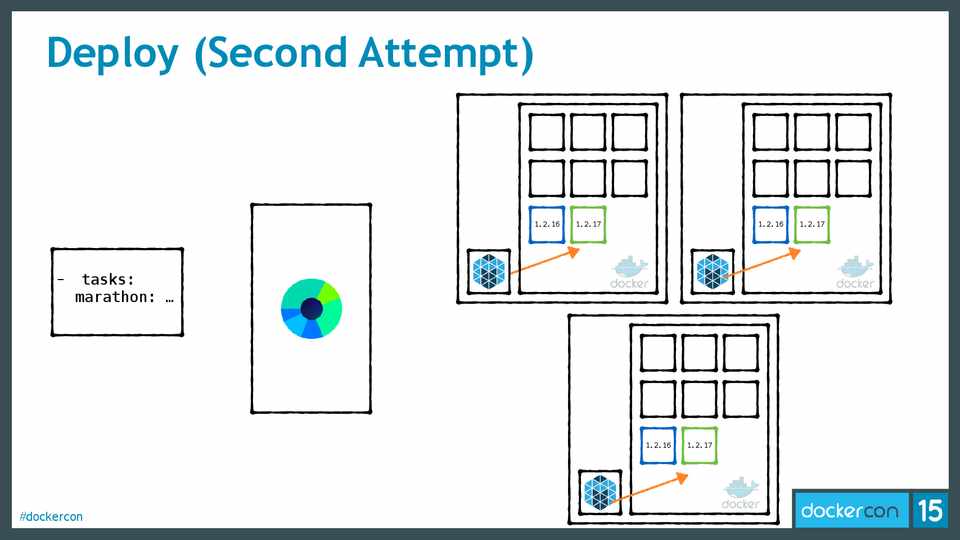

Deploy (Second Attempt)

- tasks: marathon: …

#dockercon

1.2.16 1.2.17

1.2.16 1.2.17

1.2.16 1.2.17

第87页

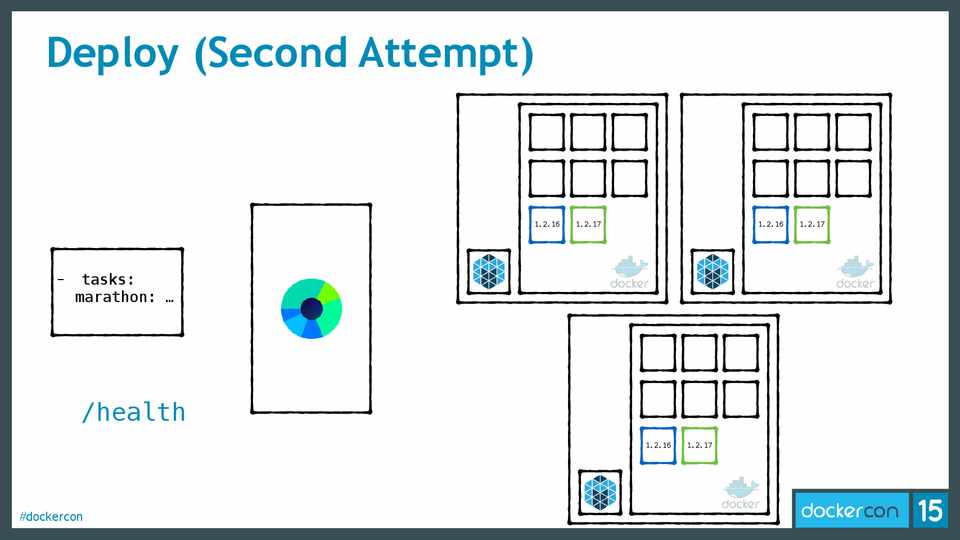

Deploy (Second Attempt)

- tasks: marathon: …

/health

#dockercon

1.2.16 1.2.17

1.2.16 1.2.17

1.2.16 1.2.17

第88页

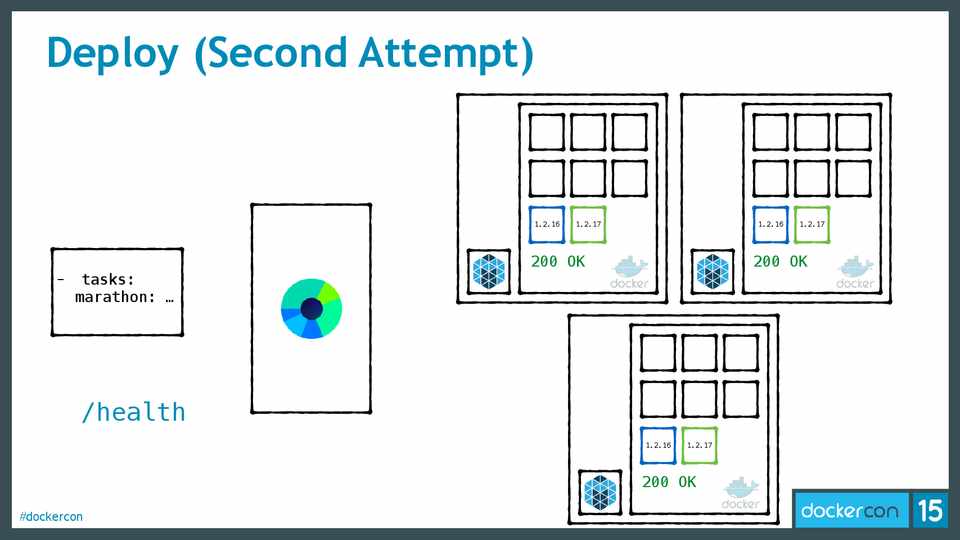

Deploy (Second Attempt)

- tasks: marathon: …

/health

#dockercon

1.2.16 1.2.17

200 OK

1.2.16 1.2.17

200 OK

1.2.16 1.2.17

200 OK

第89页

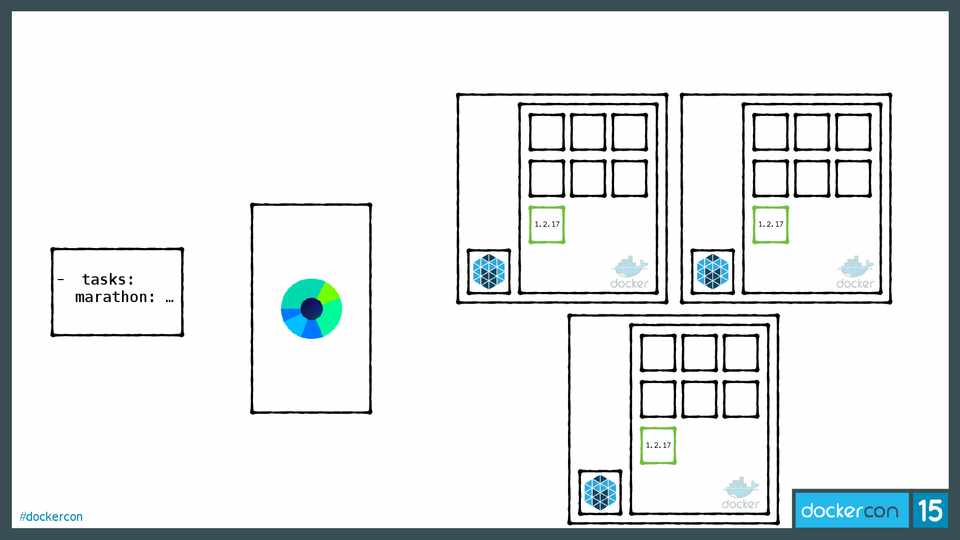

- tasks: marathon: …

#dockercon

1.2.17

1.2.17

1.2.17

第90页

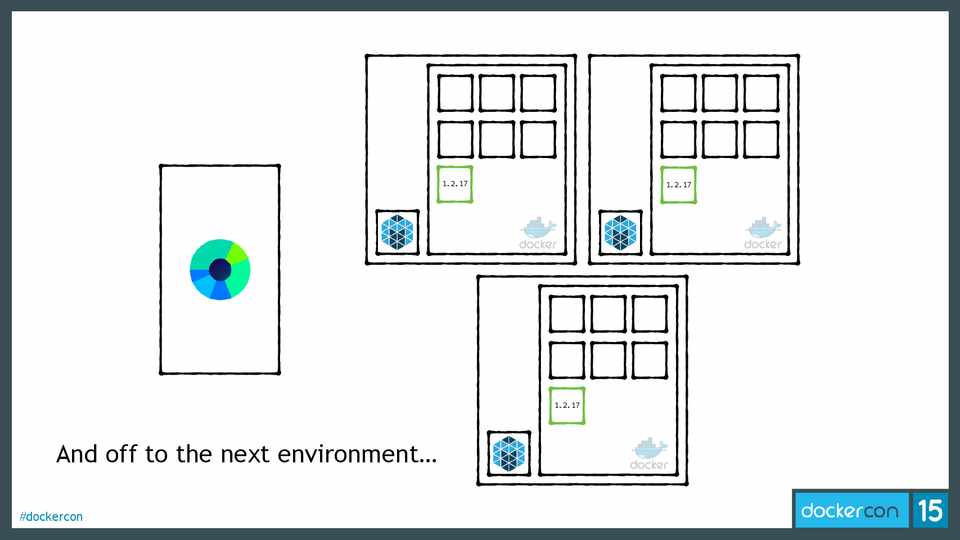

1.2.17

1.2.17

And off to the next environment…

#dockercon

1.2.17

第91页

1.2.17

1.2.17

#dockercon

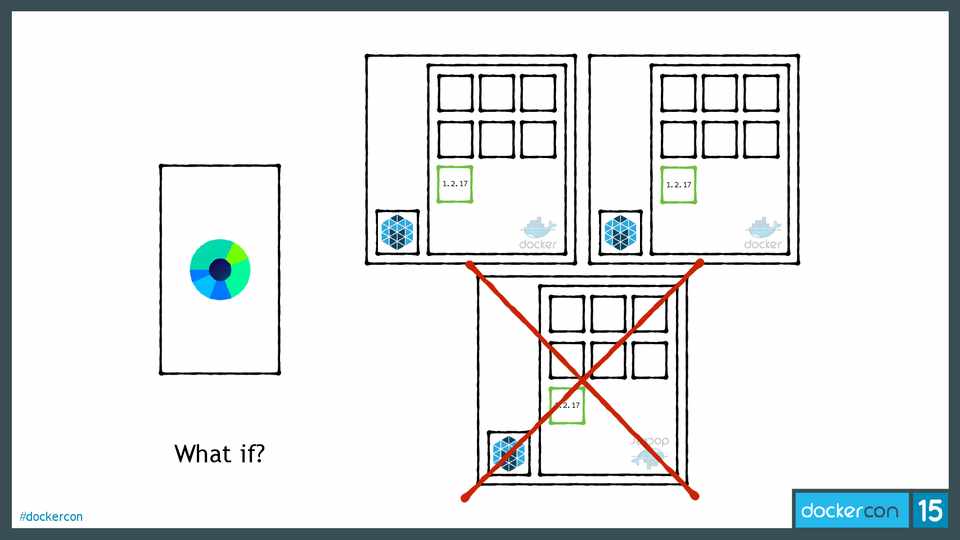

What if?

1.2.17

第92页

#dockercon

1.2.17

1.2.17

第93页

#dockercon

1.2.17

1.2.17

第94页

#dockercon

1.2.17

1.2.17

1.2.17

第95页

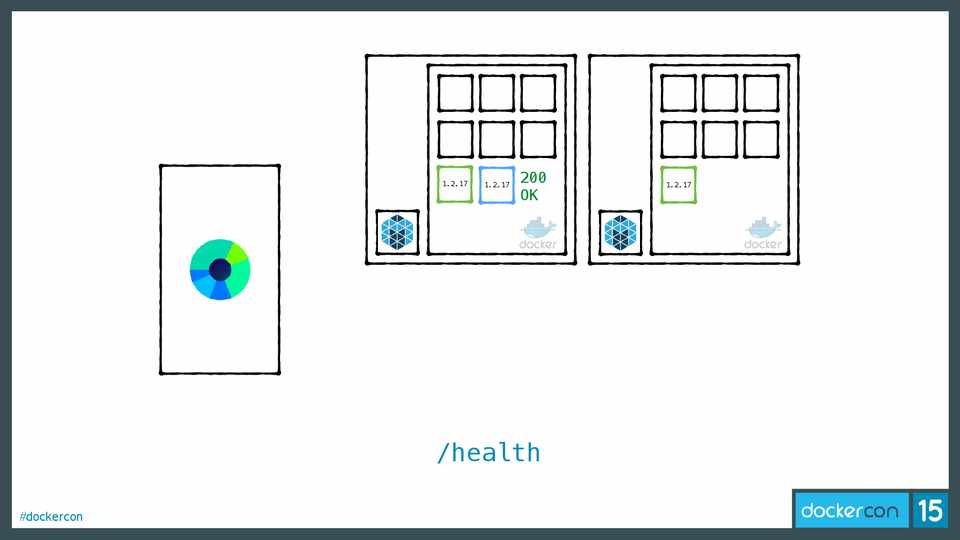

#dockercon

1.2.17

200 OK1.2.17

1.2.17

/health

第96页

#dockercon

1.2.17

1.2.17

1.2.17

第97页

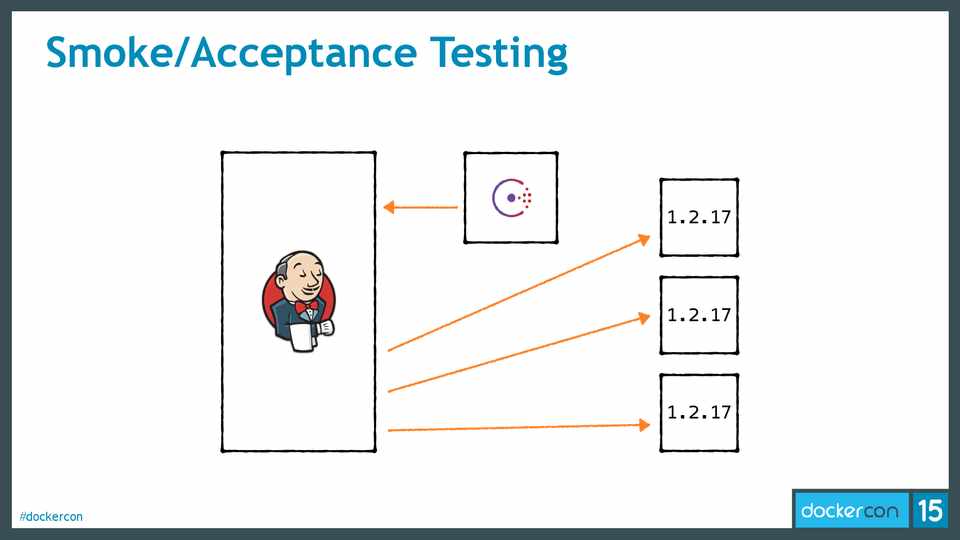

Smoke/Acceptance Testing

#dockercon

1.2.17 1.2.17 1.2.17

第98页

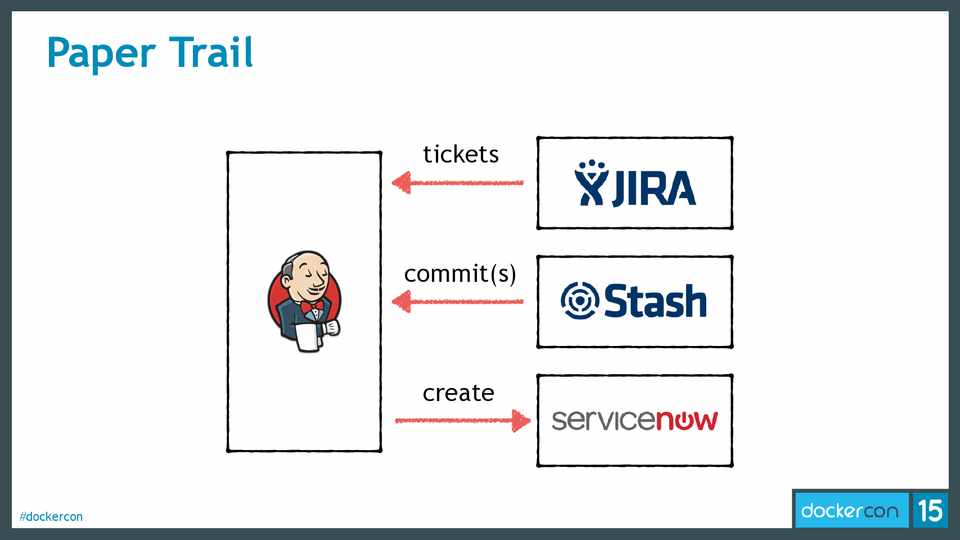

Paper Trail

#dockercon

tickets commit(s)

create

第99页

Paper Trail

#dockercon

fail! close/fail

第100页

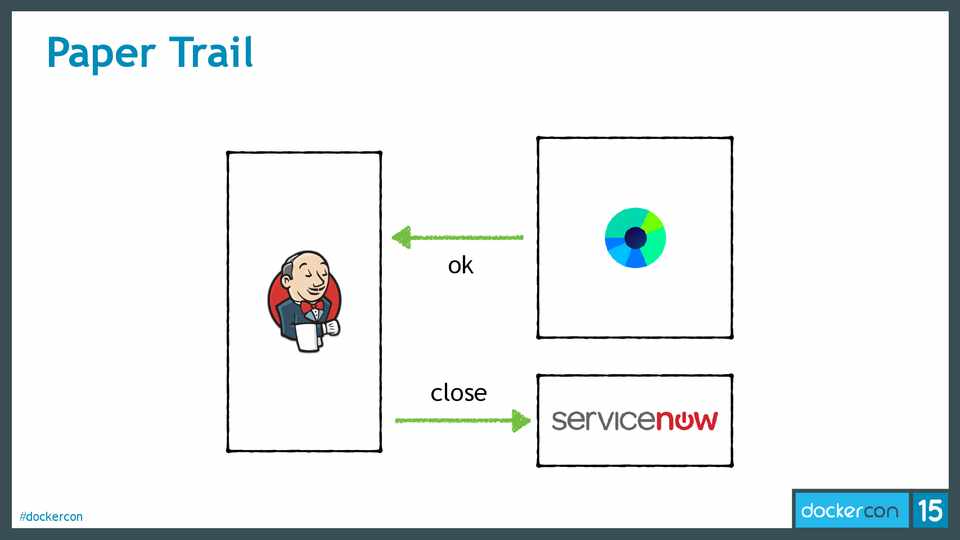

Paper Trail

#dockercon

ok close

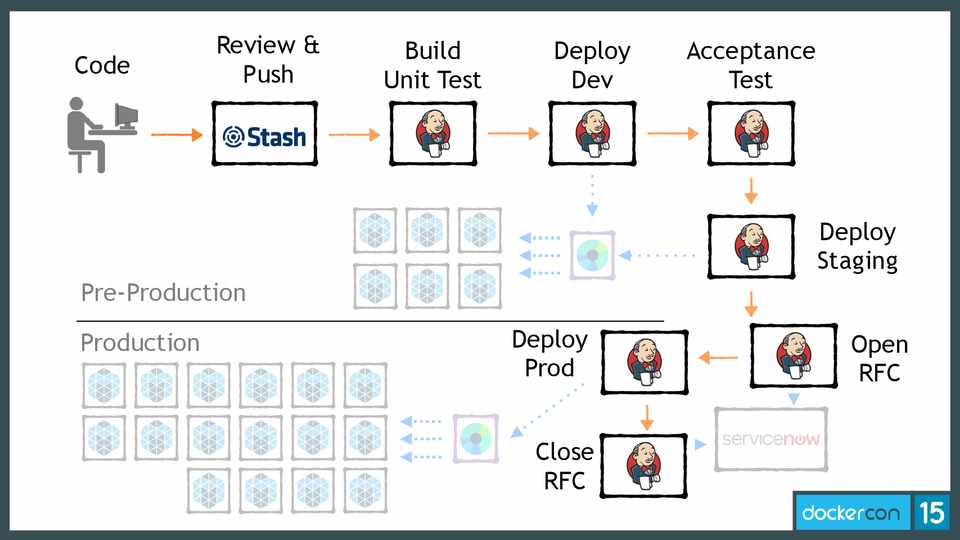

第101页

Code

Review & Push

Build Unit Test

Deploy Dev

Acceptance Test

Pre-Production Production

Deploy Prod Close RFC

Deploy Staging

Open RFC

第102页

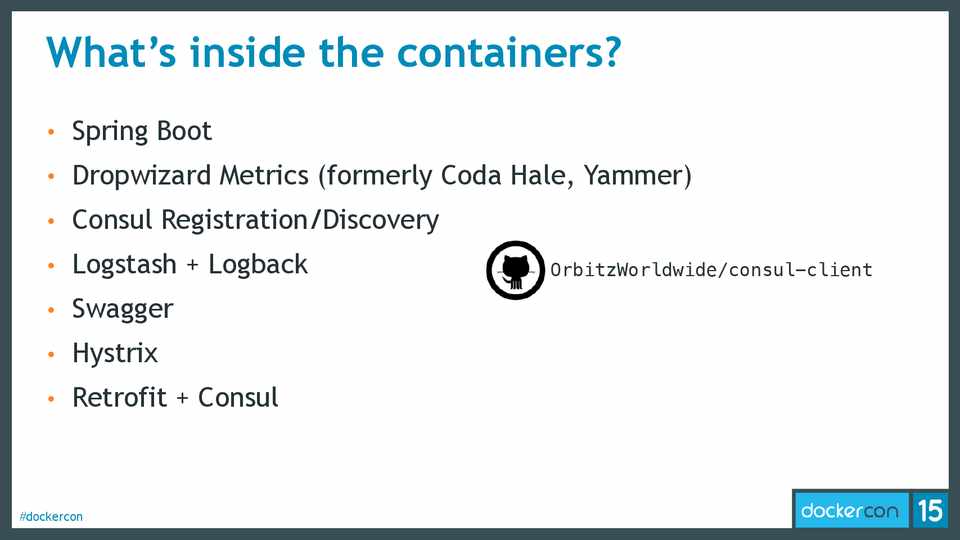

What’s inside the containers?

• Spring Boot

• Dropwizard Metrics (formerly Coda Hale, Yammer)

• Consul Registration/Discovery

• Logstash + Logback

OrbitzWorldwide/consul-client

• Swagger

• Hystrix

• Retrofit + Consul

#dockercon

第103页

“Why didn’t you use {{.x}}?”

–You

#dockercon

第104页

Keeping an eye on…

#dockercon

Kubernetes

Amazon Elastic Container

Service

Docker Swarm

第105页

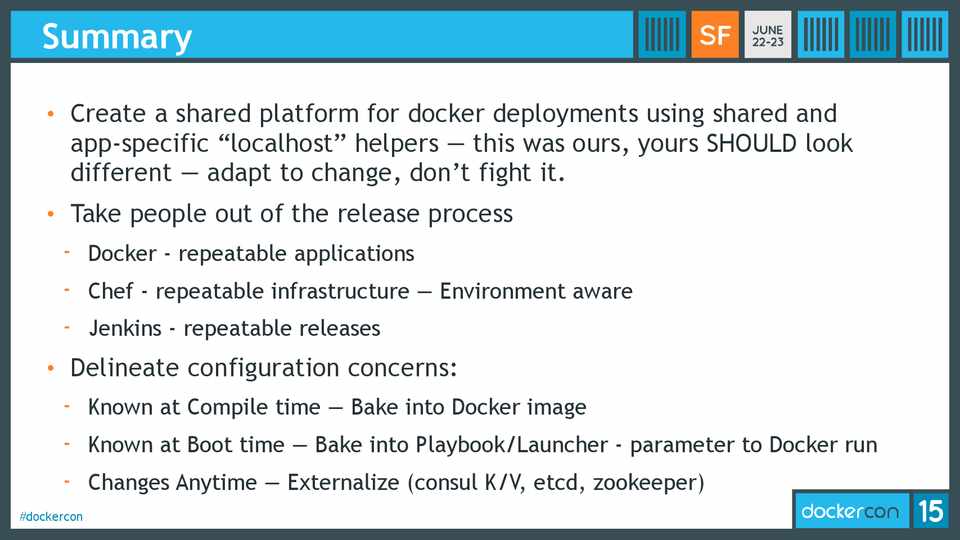

Summary

• Create a shared platform for docker deployments using shared and app-specific “localhost” helpers — this was ours, yours SHOULD look different — adapt to change, don’t fight it.

• Take people out of the release process

- Docker - repeatable applications - Chef - repeatable infrastructure — Environment aware - Jenkins - repeatable releases

• Delineate configuration concerns:

- Known at Compile time — Bake into Docker image - Known at Boot time — Bake into Playbook/Launcher - parameter to Docker run - Changes Anytime — Externalize (consul K/V, etcd, zookeeper)

#dockercon

第106页

Thanks!

Steve Hoffman @bacoboy

Rick Fast @tortiepoint
