第1页

PostgreSQL & Docker

digoal.zhou 11/29/2014



第2页

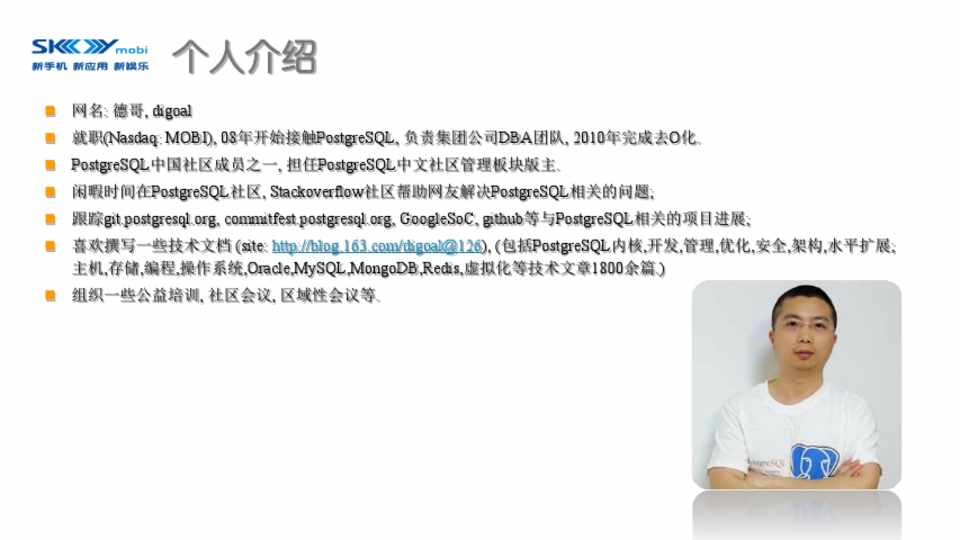

个人介绍


 网名: 德哥, digoal
 就职(Nasdaq: MOBI), 08年开始接触PostgreSQL, 负责集团公司DBA团队, 2010年完成去O化.
 PostgreSQL中国社区成员之一, 担任PostgreSQL中文社区管理板块版主.
 闲暇时间在PostgreSQL社区, Stackoverflow社区帮助网友解决PostgreSQL相关的问题;
 跟踪git.postgresql.org, commitfest.postgresql.org, GoogleSoC, github等与PostgreSQL相关的项目进展;
 喜欢撰写一些技术文档 (site: http://blog.163.com/digoal@126), (包括PostgreSQL内核,开发,管理,优化,安全,架构,水平扩展;

主机,存储,编程,操作系统,Oracle,MySQL,MongoDB,Redis,虚拟化等技术文章1800余篇.)
 组织一些公益培训, 社区会议, 区域性会议等.



第3页

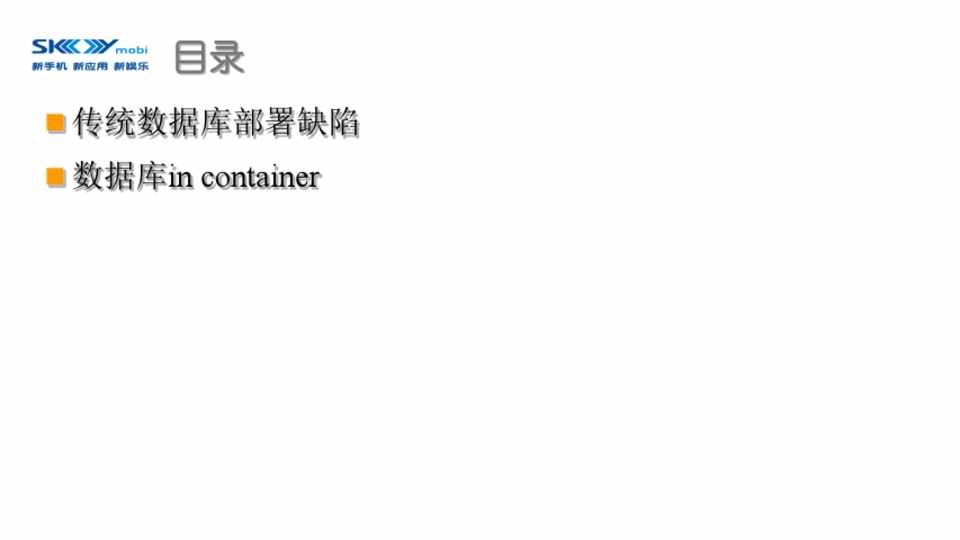

目录


 传统数据库部署缺陷
 数据库in container



第4页

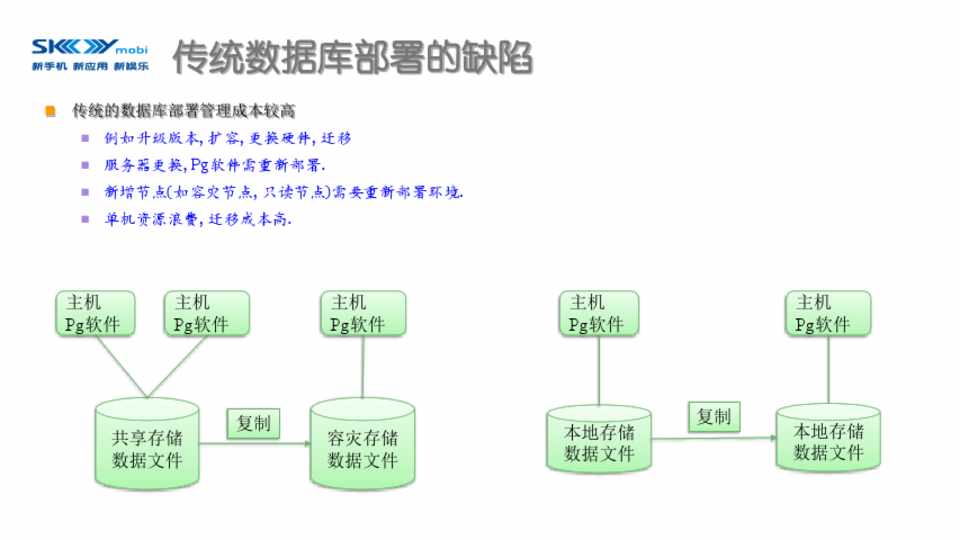

传统数据库部署的缺陷


 传统的数据库部署管理成本较高
 例如升级版本, 扩容, 更换硬件, 迁移
 服务器更换, Pg软件需重新部署.
 新增节点(如容灾节点, 只读节点)需要重新部署环境.
 单机资源浪费, 迁移成本高.



主机 Pg软件



主机 Pg软件



主机 Pg软件



主机 Pg软件



主机 Pg软件



共享存储 数据文件



复制



容灾存储 数据文件



本地存储 数据文件



复制



本地存储 数据文件



第5页

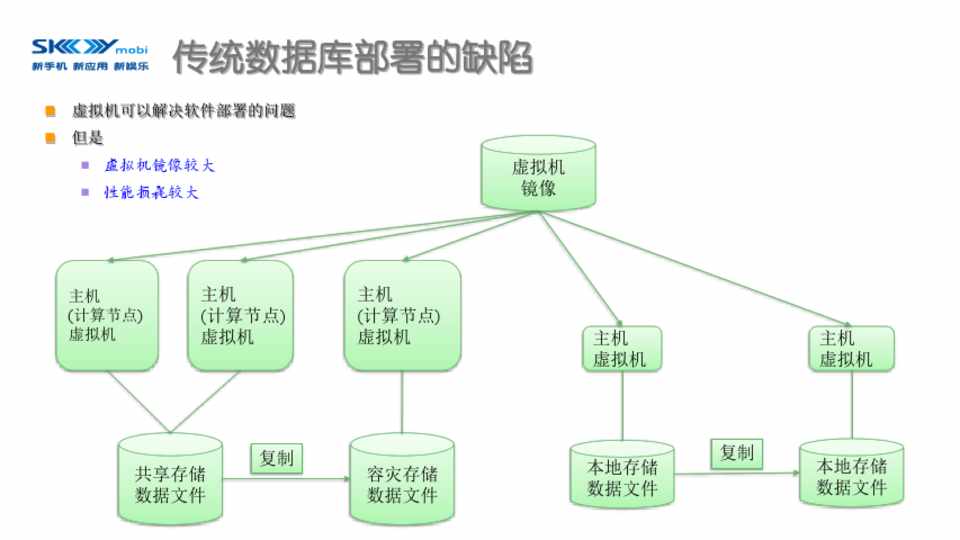

传统数据库部署的缺陷




 虚拟机可以解决软件部署的问题
 但是


 虚拟机镜像较大
 性能损耗较大



虚拟机 镜像



主机

(计算节点) 虚拟机



主机

(计算节点) 虚拟机



主机

(计算节点) 虚拟机



共享存储 数据文件



复制



容灾存储 数据文件



主机 虚拟机



主机 虚拟机



本地存储 数据文件



复制



本地存储 数据文件



第6页

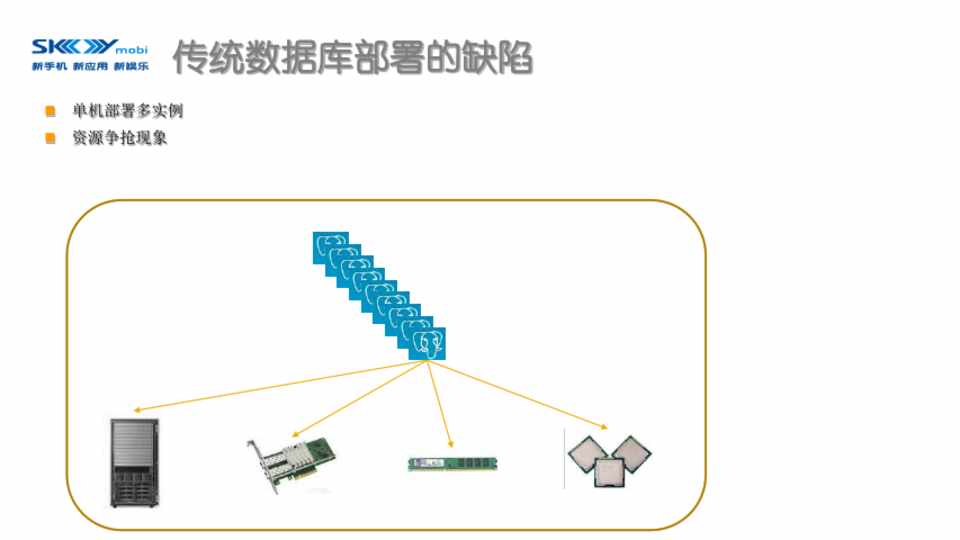

传统数据库部署的缺陷


 单机部署多实例
 资源争抢现象



第7页

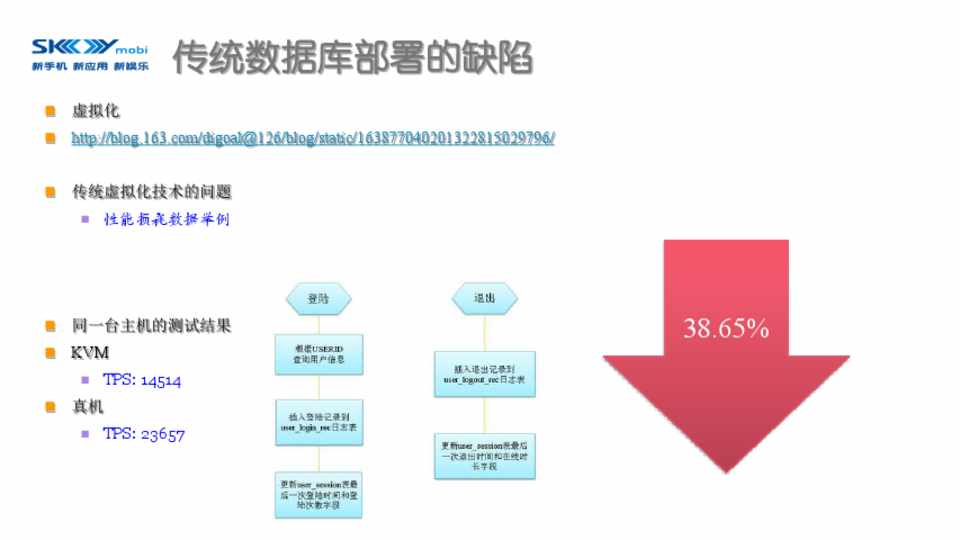

传统数据库部署的缺陷


 虚拟化
 http://blog.163.com/digoal@126/blog/static/163877040201322815029796/


 传统虚拟化技术的问题
 性能损耗数据举例


 同一台主机的测试结果
 KVM


 TPS: 14514
 真机


 TPS: 23657



38.65%



第8页

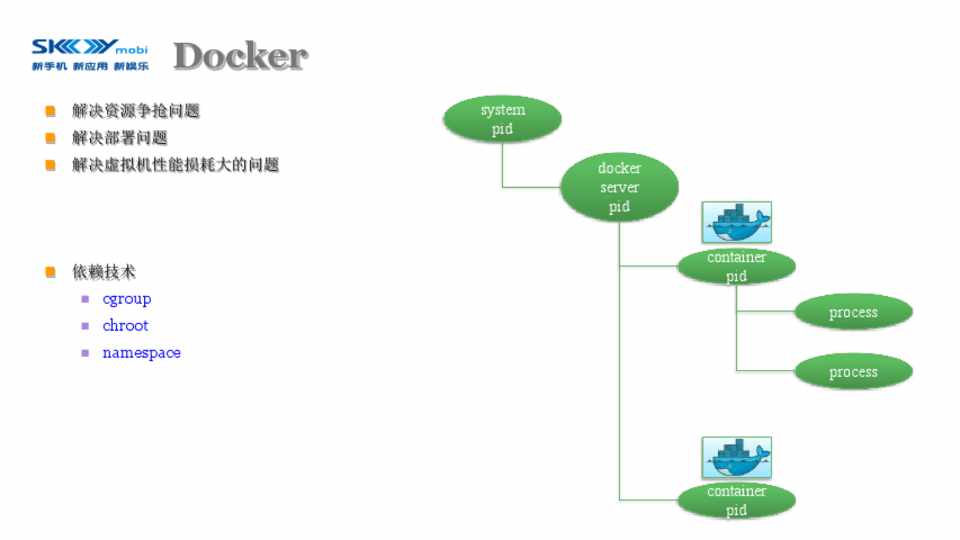

Docker


 解决资源争抢问题
 解决部署问题
 解决虚拟机性能损耗大的问题


 依赖技术
 cgroup
 chroot
 namespace



system pid



docker server

pid



container pid



process process



container pid



第9页

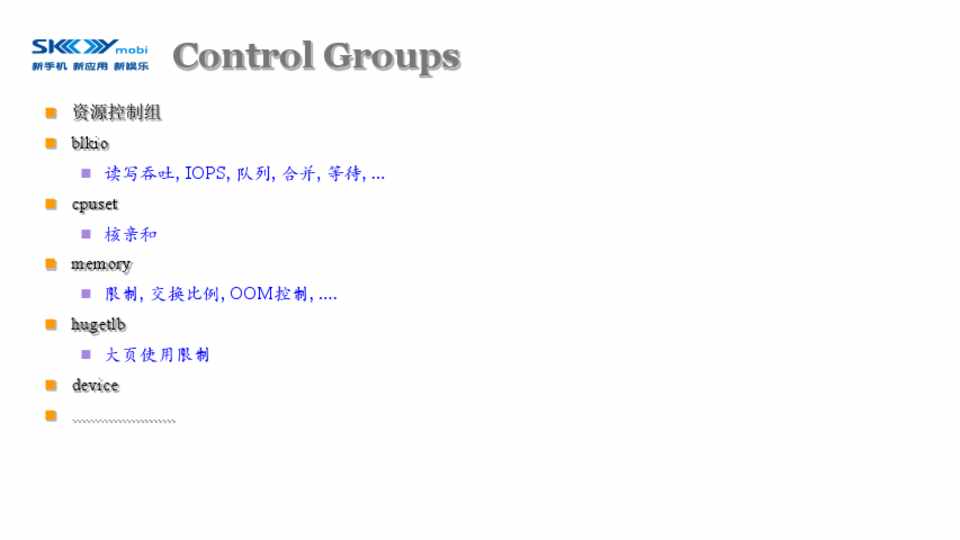

Control Groups


 资源控制组
 blkio


 读写吞吐, IOPS, 队列, 合并, 等待, ...
 cpuset


 核亲和
 memory


 限制, 交换比例, OOM控制, ....
 hugetlb


 大页使用限制
 device
 .......................



第10页

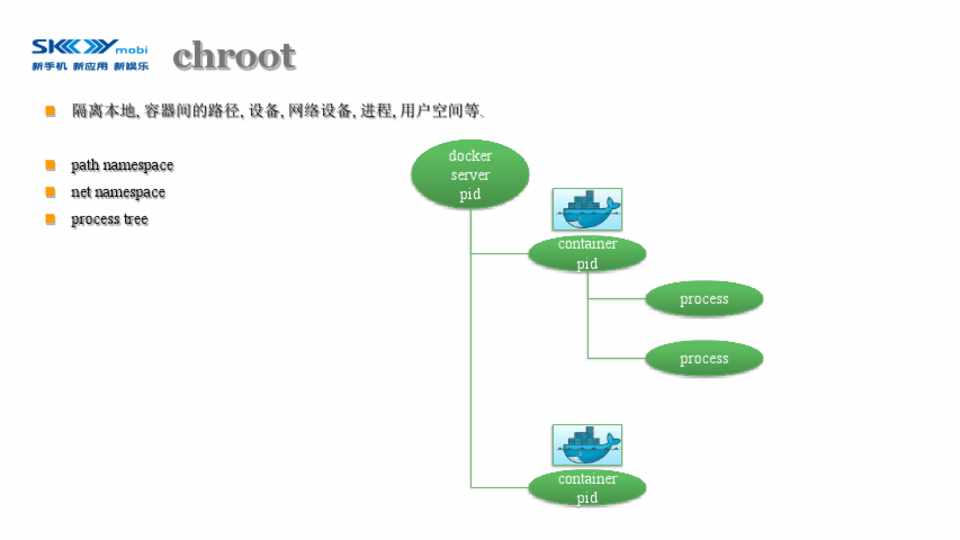

chroot




 隔离本地, 容器间的路径, 设备, 网络设备, 进程, 用户空间等.




 path namespace
 net namespace
 process tree



docker server

pid



container pid



process process



container pid



第11页

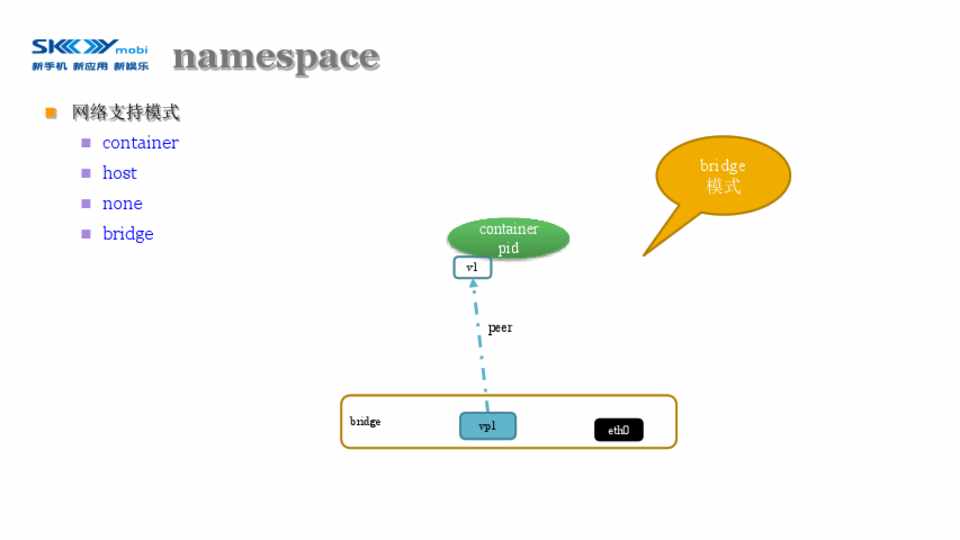

namespace


 网络支持模式
 container
 host
 none
 bridge



container pid

v1

peer



bridge 模式



bridge



vp1



eth0



第12页

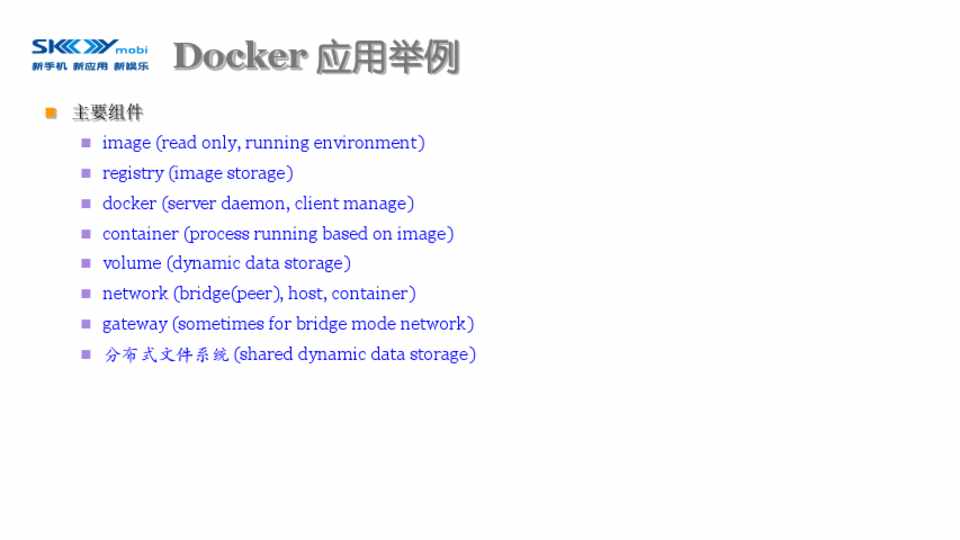

Docker 应用举例


 主要组件
 image (read only, running environment)
 registry (image storage)
 docker (server daemon, client manage)
 container (process running based on image)
 volume (dynamic data storage)
 network (bridge(peer), host, container)
 gateway (sometimes for bridge mode network)
 分布式文件系统 (shared dynamic data storage)



第13页

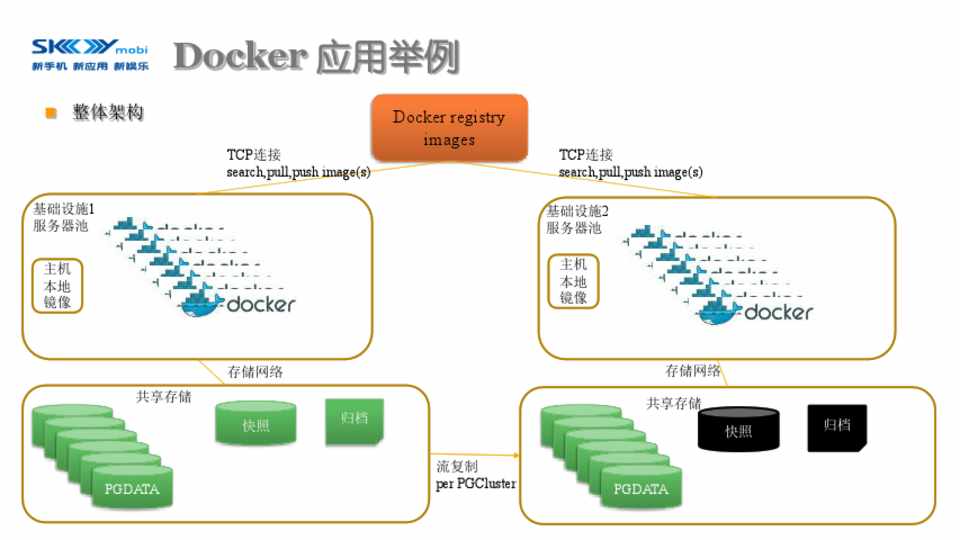

Docker 应用举例




 整体架构

基础设施1 服务器池

主机 本地 镜像



TCP连接 search,pull,push image(s)



Docker registry images



TCP连接 search,pull,push image(s)

基础设施2 服务器池

主机 本地 镜像



共享存储 PGDATA

PGDATA PGDATA PGDATA PGDATA PGDATA



存储网络 快照



归档



流复制 per PGCluster



存储网络



共享存储



PGDATA PGDATA PGDATA PGDATA PGDATA PGDATA



快照



归档



第14页

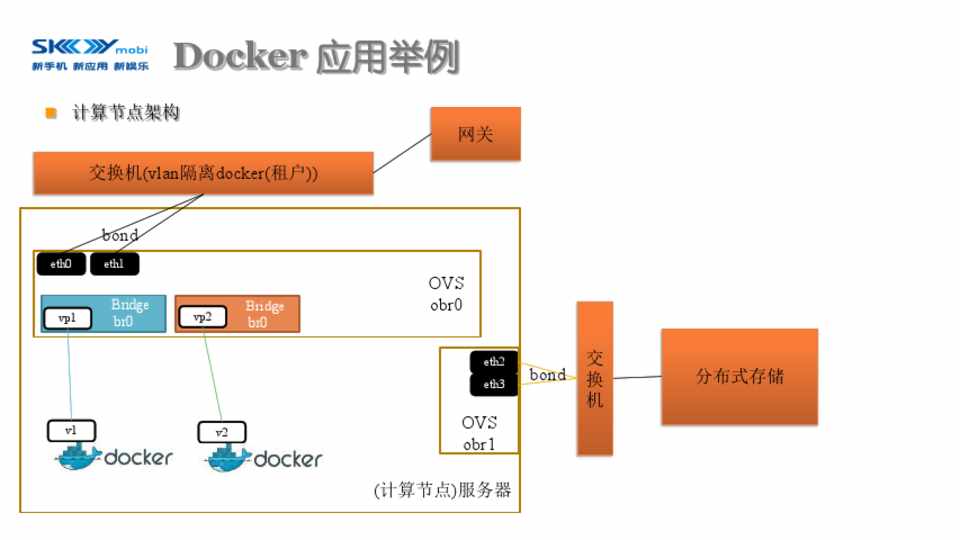

Docker 应用举例




 计算节点架构 交换机(vlan隔离docker(租户))



网关



bond

eth0 eth1

Bridge vp1 br0



Bridge vp2 br0



v1 v2



OVS obr0



eth2 eth3

OVS obr1



交 bond 换





(计算节点)服务器



分布式存储



第15页

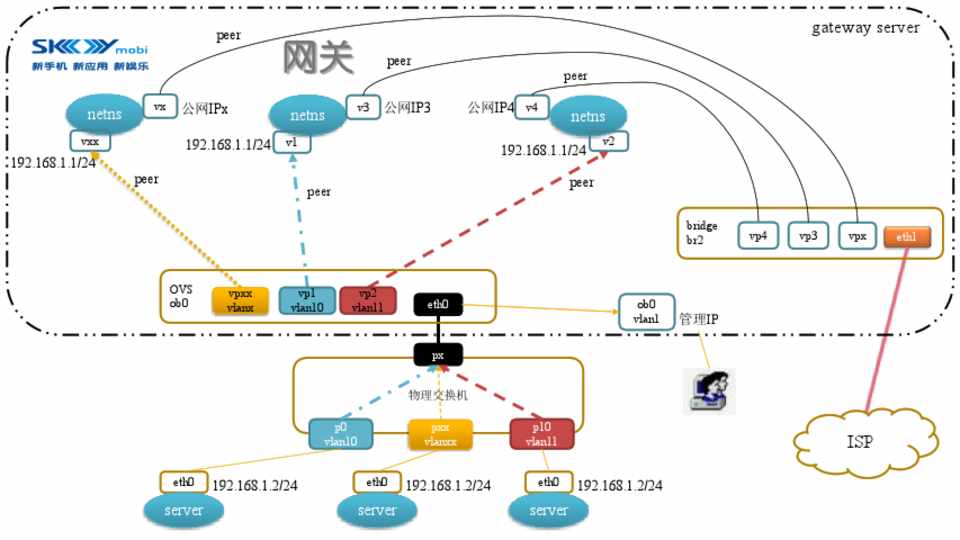

网关peer peer



netns vx 公网IPx



netns



vxx

192.168.1.1/24



192.168.1.1/24 v1 peer

peer



v3 公网IP3



peer



公网IP4 v4



netns



v2

192.168.1.1/24



peer



gateway server

bridge br2 vp4 vp3 vpx eth1



OVS ob0



vpxx vlanx



vp1 vlan10



vp2 vlan11



eth0



px



p0 vlan10



物理交换机

pxx vlanxx



eth0 192.168.1.2/24

server



eth0 192.168.1.2/24

server



ob0

vlan1 管理IP

p10 vlan11

eth0 192.168.1.2/24

server



ISP



第16页

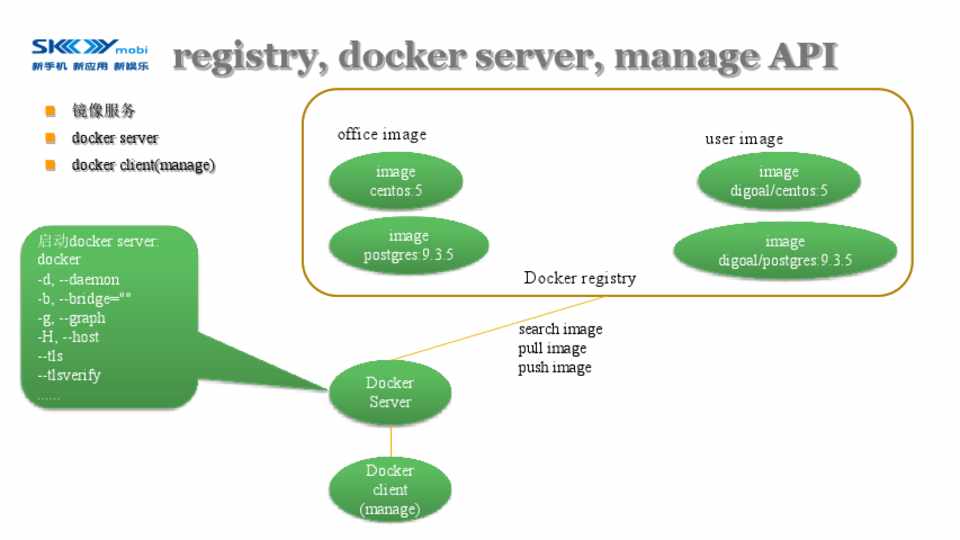

registry, docker server, manage API




 镜像服务
 docker server
 docker client(manage)

启动docker server: docker -d, --daemon -b, --bridge="" -g, --graph -H, --host --tls --tlsverify ......



office image

image centos:5

image postgres:9.3.5

Docker Server



Docker registry

search image pull image push image



user image

image digoal/centos:5

image digoal/postgres:9.3.5



Docker client (manage)



第17页

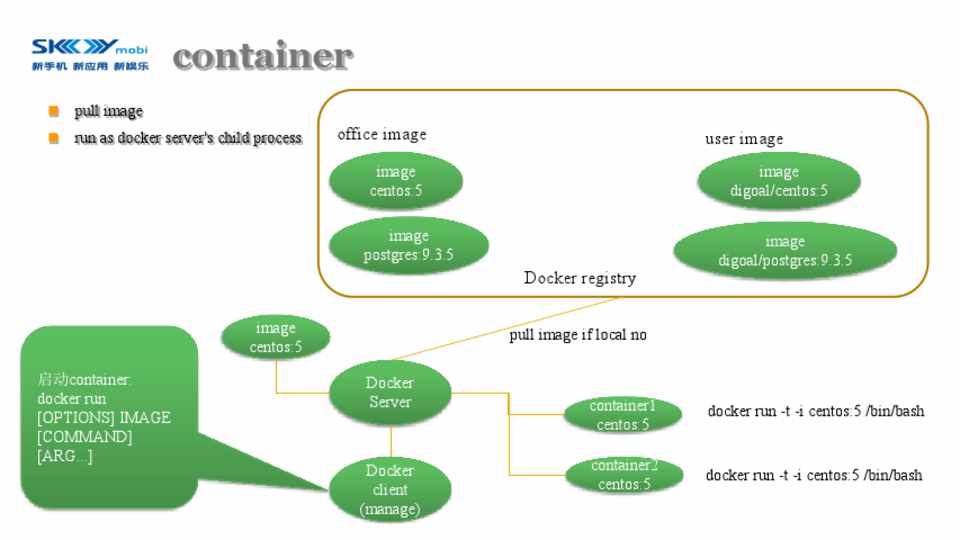

container




 pull image
 run as docker server's child process



office image

image centos:5



image postgres:9.3.5



启动container: docker run [OPTIONS] IMAGE [COMMAND] [ARG...]



image centos:5



Docker Server



Docker client (manage)



Docker registry

pull image if local no



user image

image digoal/centos:5

image digoal/postgres:9.3.5



container1 centos:5

container2 centos:5



docker run -t -i centos:5 /bin/bash docker run -t -i centos:5 /bin/bash



第18页

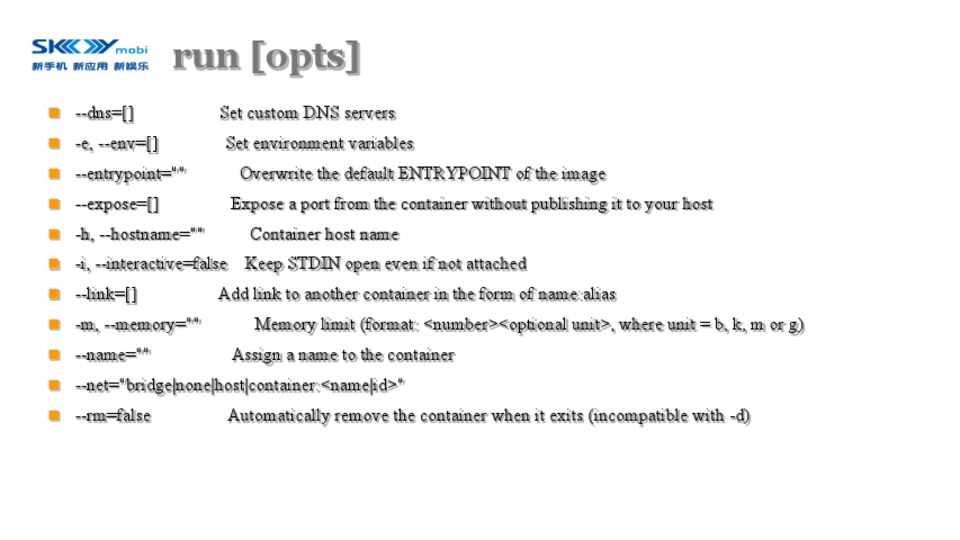

run [opts]




 --dns=[]



Set custom DNS servers




 -e, --env=[]



Set environment variables




 --entrypoint=""



Overwrite the default ENTRYPOINT of the image




 --expose=[]



Expose a port from the container without publishing it to your host




 -h, --hostname="" Container host name




 -i, --interactive=false Keep STDIN open even if not attached




 --link=[]



Add link to another container in the form of name:alias




 -m, --memory=""



Memory limit (format: <number><optional unit>, where unit = b, k, m or g)




 --name=""



Assign a name to the container




 --net="bridge|none|host|container:<name|id>"




 --rm=false



Automatically remove the container when it exits (incompatible with -d)



第19页

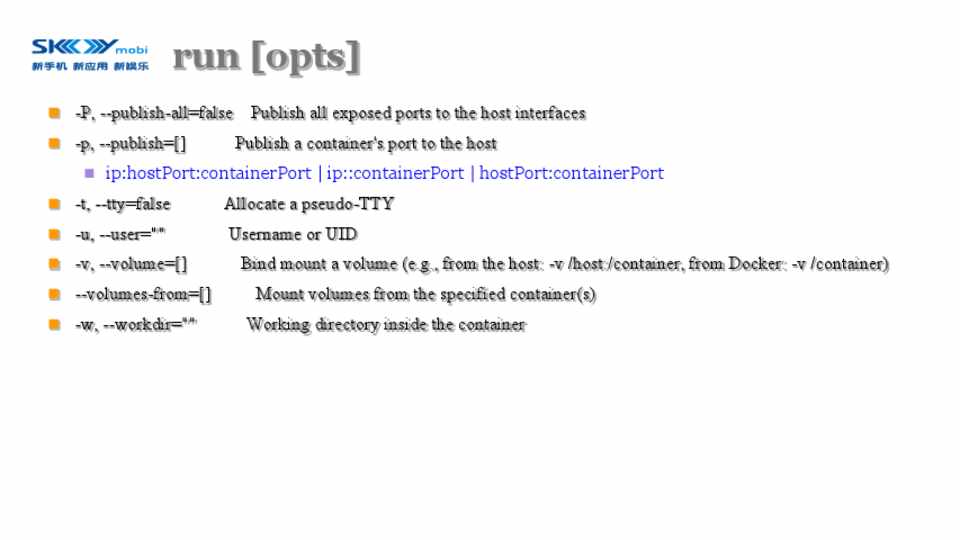

run [opts]




 -P, --publish-all=false Publish all exposed ports to the host interfaces




 -p, --publish=[]



Publish a container's port to the host




 ip:hostPort:containerPort | ip::containerPort | hostPort:containerPort




 -t, --tty=false



Allocate a pseudo-TTY




 -u, --user=""



Username or UID




 -v, --volume=[]



Bind mount a volume (e.g., from the host: -v /host:/container, from Docker: -v /container)




 --volumes-from=[] Mount volumes from the specified container(s)




 -w, --workdir=""



Working directory inside the container



第20页

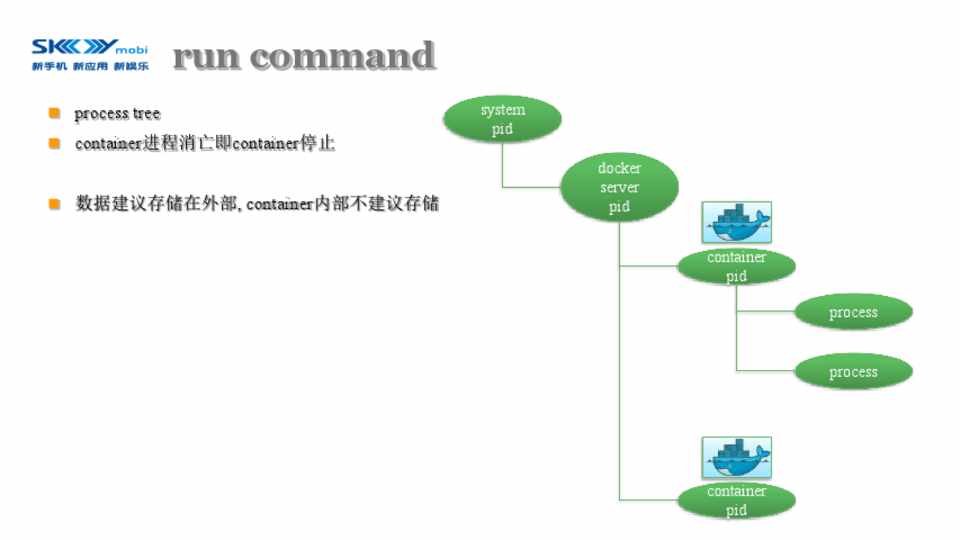

run command


 process tree
 container进程消亡即container停止



system pid




 数据建议存储在外部, container内部不建议存储



docker server

pid



container pid



process process



container pid



第21页

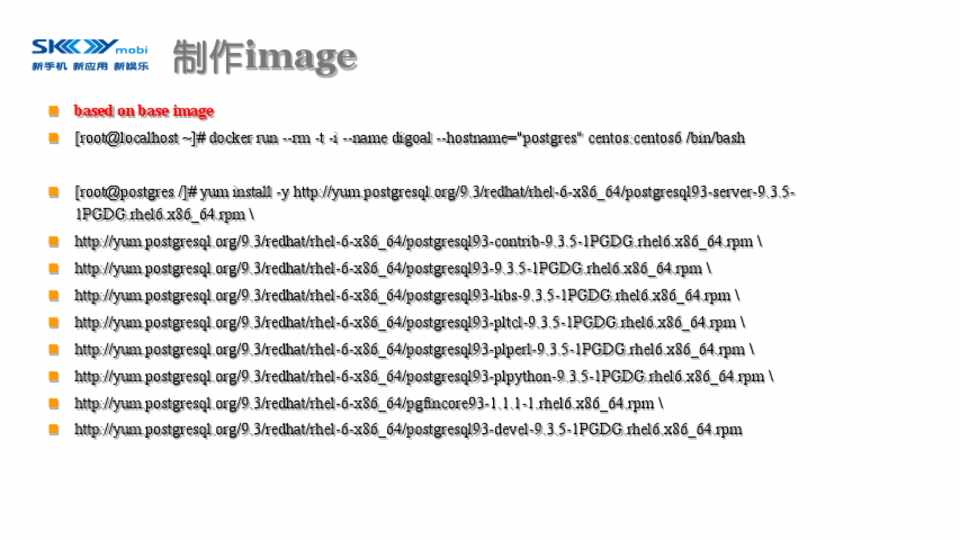

制作image


 based on base image
 [root@localhost ~]# docker run --rm -t -i --name digoal --hostname="postgres" centos:centos6 /bin/bash


 [root@postgres /]# yum install -y http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-server-9.3.51PGDG.rhel6.x86_64.rpm \


 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-contrib-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-libs-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-pltcl-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-plperl-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-plpython-9.3.5-1PGDG.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/pgfincore93-1.1.1-1.rhel6.x86_64.rpm \
 http://yum.postgresql.org/9.3/redhat/rhel-6-x86_64/postgresql93-devel-9.3.5-1PGDG.rhel6.x86_64.rpm



第22页

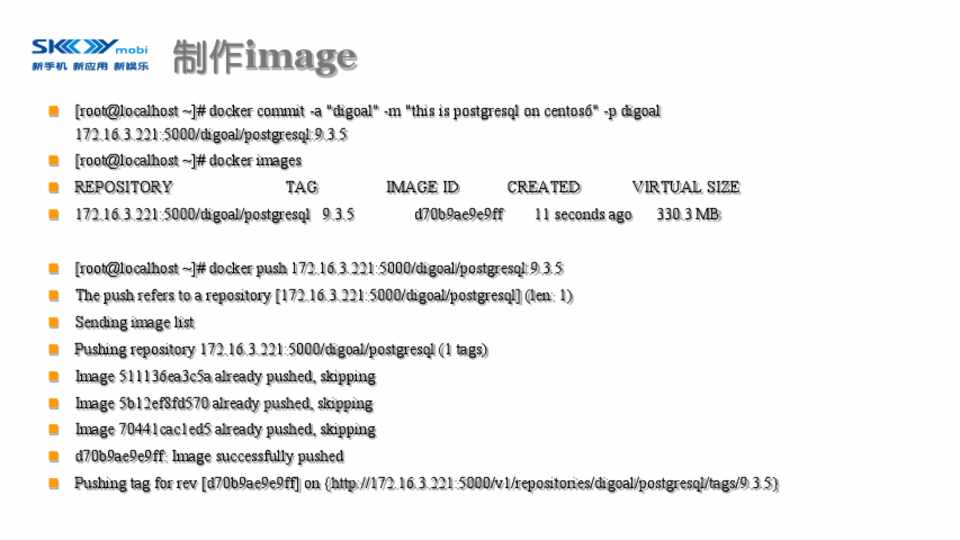

制作image




 [root@localhost ~]# docker commit -a "digoal" -m "this is postgresql on centos6" -p digoal



172.16.3.221:5000/digoal/postgresql:9.3.5




 [root@localhost ~]# docker images




 REPOSITORY



TAG



IMAGE ID



CREATED



VIRTUAL SIZE




 172.16.3.221:5000/digoal/postgresql 9.3.5



d70b9ae9e9ff 11 seconds ago 330.3 MB




 [root@localhost ~]# docker push 172.16.3.221:5000/digoal/postgresql:9.3.5
 The push refers to a repository [172.16.3.221:5000/digoal/postgresql] (len: 1)
 Sending image list
 Pushing repository 172.16.3.221:5000/digoal/postgresql (1 tags)
 Image 511136ea3c5a already pushed, skipping
 Image 5b12ef8fd570 already pushed, skipping
 Image 70441cac1ed5 already pushed, skipping
 d70b9ae9e9ff: Image successfully pushed
 Pushing tag for rev [d70b9ae9e9ff] on {http://172.16.3.221:5000/v1/repositories/digoal/postgresql/tags/9.3.5}



第23页

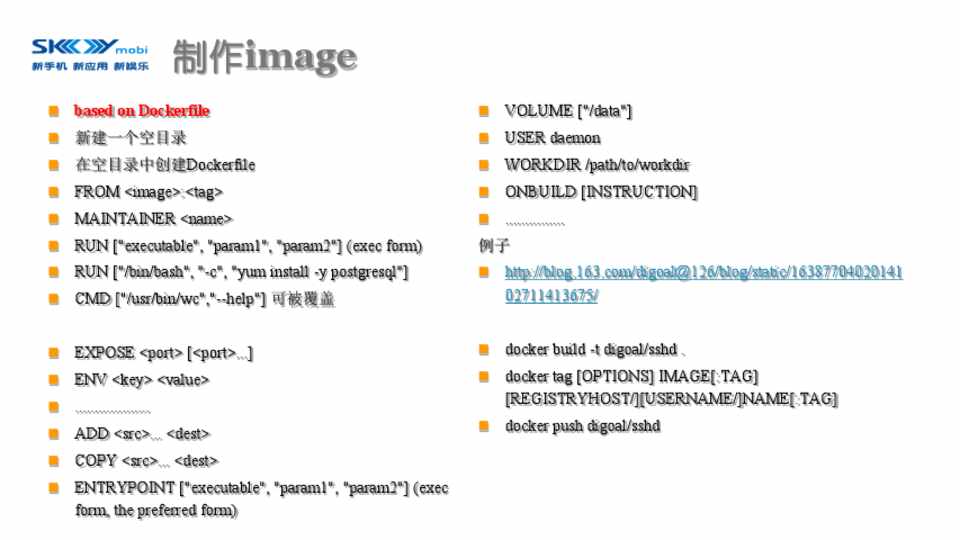

制作image




 based on Dockerfile
 新建一个空目录
 在空目录中创建Dockerfile
 FROM <image>:<tag>
 MAINTAINER <name>
 RUN ["executable", "param1", "param2"] (exec form)
 RUN ["/bin/bash", "-c", "yum install -y postgresql"]
 CMD ["/usr/bin/wc","--help"] 可被覆盖




 VOLUME ["/data"]
 USER daemon
 WORKDIR /path/to/workdir
 ONBUILD [INSTRUCTION]
 ............... 例子
 http://blog.163.com/digoal@126/blog/static/16387704020141

02711413675/




 EXPOSE <port> [<port>...]
 ENV <key> <value>
 ...................
 ADD <src>... <dest>
 COPY <src>... <dest>
 ENTRYPOINT ["executable", "param1", "param2"] (exec

form, the preferred form)




 docker build -t digoal/sshd .
 docker tag [OPTIONS] IMAGE[:TAG]

[REGISTRYHOST/][USERNAME/]NAME[:TAG]
 docker push digoal/sshd



第24页

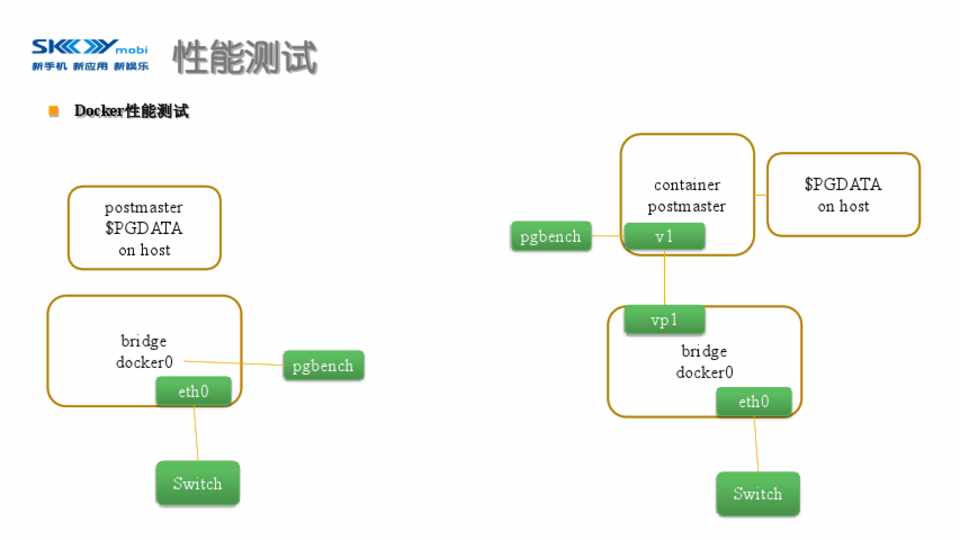

性能测试


 Docker性能测试



postmaster $PGDATA

on host

bridge docker0

eth0



pgbench



Switch



pgbench



container postmaster

v1



$PGDATA on host



vp1

bridge docker0

eth0



Switch



第25页

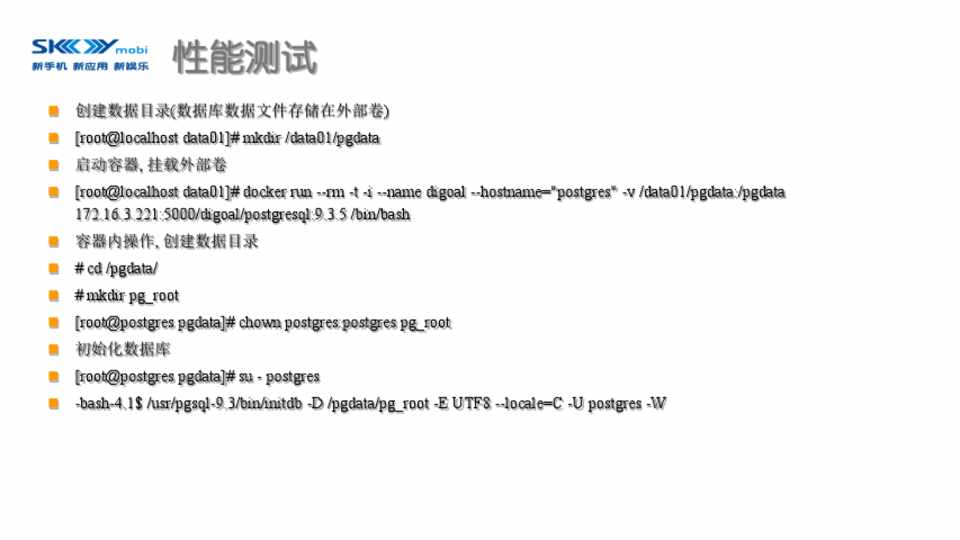

性能测试


 创建数据目录(数据库数据文件存储在外部卷)
 [root@localhost data01]# mkdir /data01/pgdata
 启动容器, 挂载外部卷
 [root@localhost data01]# docker run --rm -t -i --name digoal --hostname="postgres" -v /data01/pgdata:/pgdata

172.16.3.221:5000/digoal/postgresql:9.3.5 /bin/bash
 容器内操作, 创建数据目录
 # cd /pgdata/
 # mkdir pg_root
 [root@postgres pgdata]# chown postgres:postgres pg_root
 初始化数据库
 [root@postgres pgdata]# su - postgres
 -bash-4.1$ /usr/pgsql-9.3/bin/initdb -D /pgdata/pg_root -E UTF8 --locale=C -U postgres -W



第26页

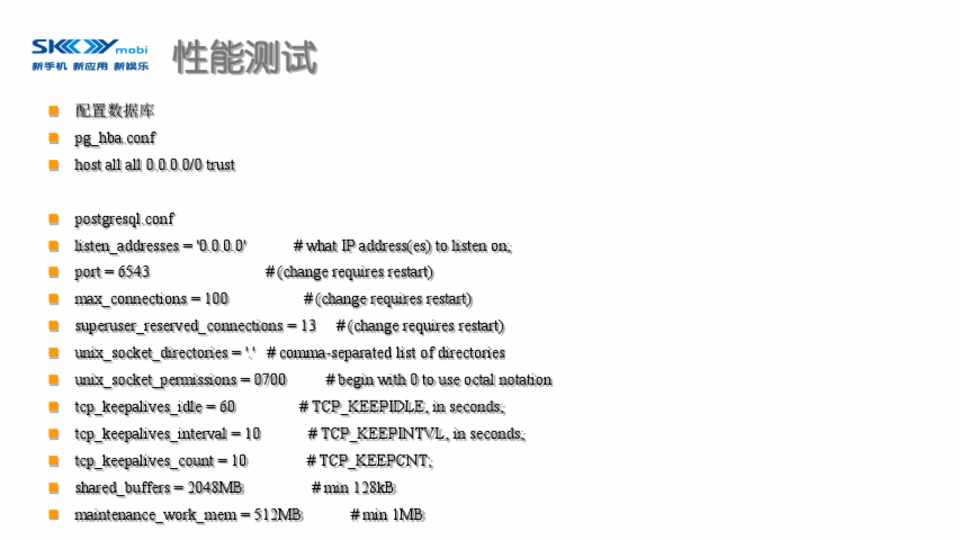

性能测试




 配置数据库
 pg_hba.conf
 host all all 0.0.0.0/0 trust




 postgresql.conf




 listen_addresses = '0.0.0.0'



# what IP address(es) to listen on;




 port = 6543



# (change requires restart)




 max_connections = 100



# (change requires restart)




 superuser_reserved_connections = 13 # (change requires restart)




 unix_socket_directories = '.' # comma-separated list of directories




 unix_socket_permissions = 0700 # begin with 0 to use octal notation




 tcp_keepalives_idle = 60



# TCP_KEEPIDLE, in seconds;




 tcp_keepalives_interval = 10



# TCP_KEEPINTVL, in seconds;




 tcp_keepalives_count = 10



# TCP_KEEPCNT;




 shared_buffers = 2048MB



# min 128kB




 maintenance_work_mem = 512MB



# min 1MB



第27页

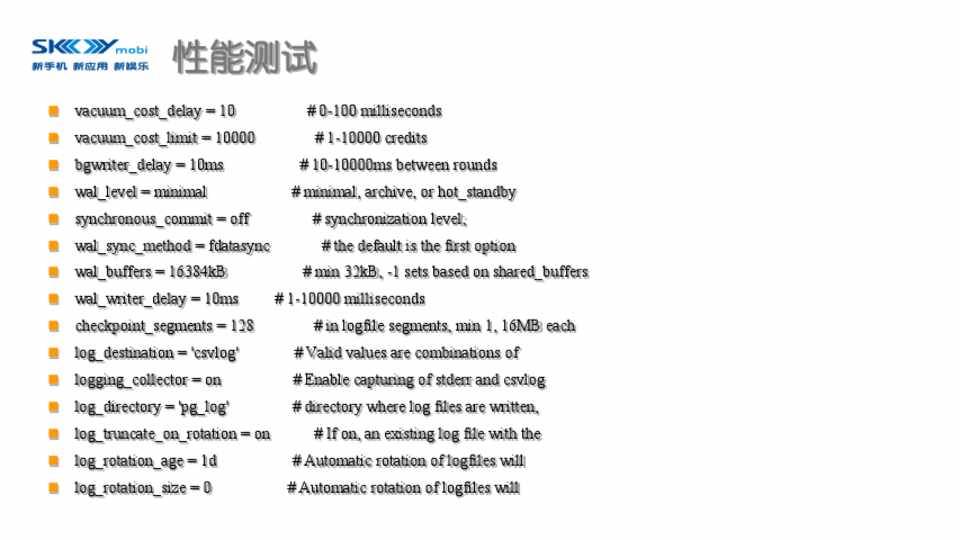

性能测试




 vacuum_cost_delay = 10



# 0-100 milliseconds




 vacuum_cost_limit = 10000



# 1-10000 credits




 bgwriter_delay = 10ms



# 10-10000ms between rounds




 wal_level = minimal



# minimal, archive, or hot_standby




 synchronous_commit = off



# synchronization level;




 wal_sync_method = fdatasync



# the default is the first option




 wal_buffers = 16384kB



# min 32kB, -1 sets based on shared_buffers




 wal_writer_delay = 10ms # 1-10000 milliseconds




 checkpoint_segments = 128



# in logfile segments, min 1, 16MB each




 log_destination = 'csvlog'



# Valid values are combinations of




 logging_collector = on



# Enable capturing of stderr and csvlog




 log_directory = 'pg_log'



# directory where log files are written,




 log_truncate_on_rotation = on



# If on, an existing log file with the




 log_rotation_age = 1d



# Automatic rotation of logfiles will




 log_rotation_size = 0



# Automatic rotation of logfiles will



第28页

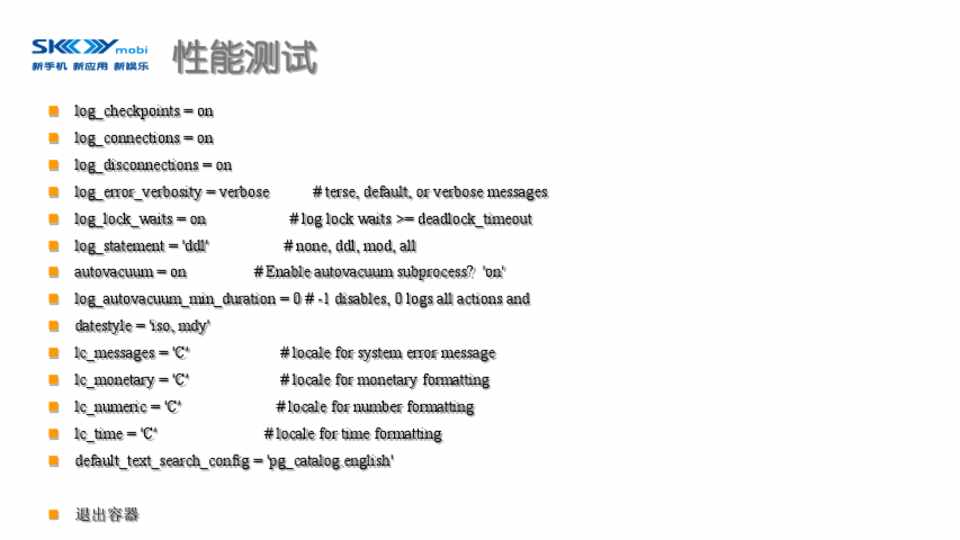

性能测试




 log_checkpoints = on




 log_connections = on




 log_disconnections = on




 log_error_verbosity = verbose



# terse, default, or verbose messages




 log_lock_waits = on



# log lock waits >= deadlock_timeout




 log_statement = 'ddl'



# none, ddl, mod, all




 autovacuum = on



# Enable autovacuum subprocess? 'on'




 log_autovacuum_min_duration = 0 # -1 disables, 0 logs all actions and




 datestyle = 'iso, mdy'




 lc_messages = 'C'



# locale for system error message




 lc_monetary = 'C'



# locale for monetary formatting




 lc_numeric = 'C'



# locale for number formatting




 lc_time = 'C'



# locale for time formatting




 default_text_search_config = 'pg_catalog.english'




 退出容器



第29页

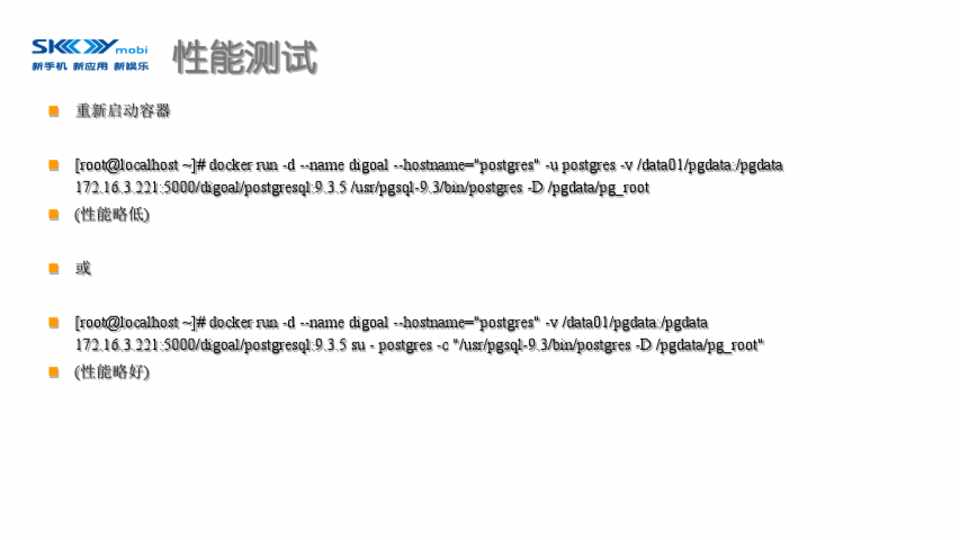

性能测试


 重新启动容器


 [root@localhost ~]# docker run -d --name digoal --hostname="postgres" -u postgres -v /data01/pgdata:/pgdata 172.16.3.221:5000/digoal/postgresql:9.3.5 /usr/pgsql-9.3/bin/postgres -D /pgdata/pg_root


 (性能略低)





 [root@localhost ~]# docker run -d --name digoal --hostname="postgres" -v /data01/pgdata:/pgdata 172.16.3.221:5000/digoal/postgresql:9.3.5 su - postgres -c "/usr/pgsql-9.3/bin/postgres -D /pgdata/pg_root"


 (性能略好)



第30页

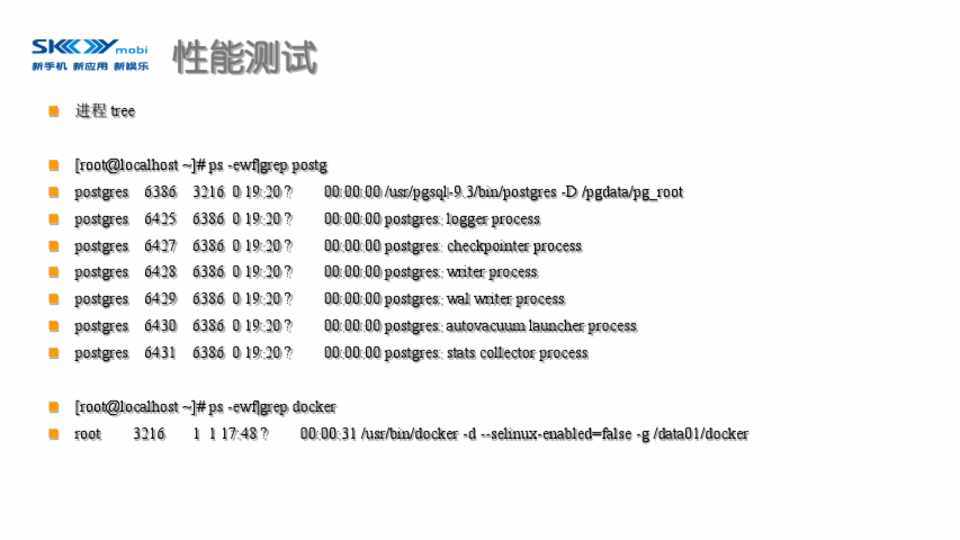

性能测试


 进程 tree


 [root@localhost ~]# ps -ewf|grep postg
 postgres 6386 3216 0 19:20 ? 00:00:00 /usr/pgsql-9.3/bin/postgres -D /pgdata/pg_root
 postgres 6425 6386 0 19:20 ? 00:00:00 postgres: logger process
 postgres 6427 6386 0 19:20 ? 00:00:00 postgres: checkpointer process
 postgres 6428 6386 0 19:20 ? 00:00:00 postgres: writer process
 postgres 6429 6386 0 19:20 ? 00:00:00 postgres: wal writer process
 postgres 6430 6386 0 19:20 ? 00:00:00 postgres: autovacuum launcher process
 postgres 6431 6386 0 19:20 ? 00:00:00 postgres: stats collector process


 [root@localhost ~]# ps -ewf|grep docker
 root 3216 1 1 17:48 ? 00:00:31 /usr/bin/docker -d --selinux-enabled=false -g /data01/docker



第31页

性能测试


 进程 tree


 [root@localhost ~]# ps -few|grep postgres
 root 6614 3216 0 19:23 ? 00:00:00 su - postgres -c /usr/pgsql-9.3/bin/postgres -D /pgdata/pg_root
 postgres 6643 6614 0 19:23 ? 00:00:00 /usr/pgsql-9.3/bin/postgres -D /pgdata/pg_root
 postgres 6659 6643 0 19:23 ? 00:00:00 postgres: logger process
 postgres 6661 6643 0 19:23 ? 00:00:00 postgres: checkpointer process
 postgres 6662 6643 0 19:23 ? 00:00:00 postgres: writer process
 postgres 6663 6643 0 19:23 ? 00:00:00 postgres: wal writer process
 postgres 6664 6643 0 19:23 ? 00:00:00 postgres: autovacuum launcher process
 postgres 6665 6643 0 19:23 ? 00:00:00 postgres: stats collector process


 [root@localhost ~]# ps -ewf|grep docker
 root 3216 1 1 17:48 ? 00:00:31 /usr/bin/docker -d --selinux-enabled=false -g /data01/docker



第32页

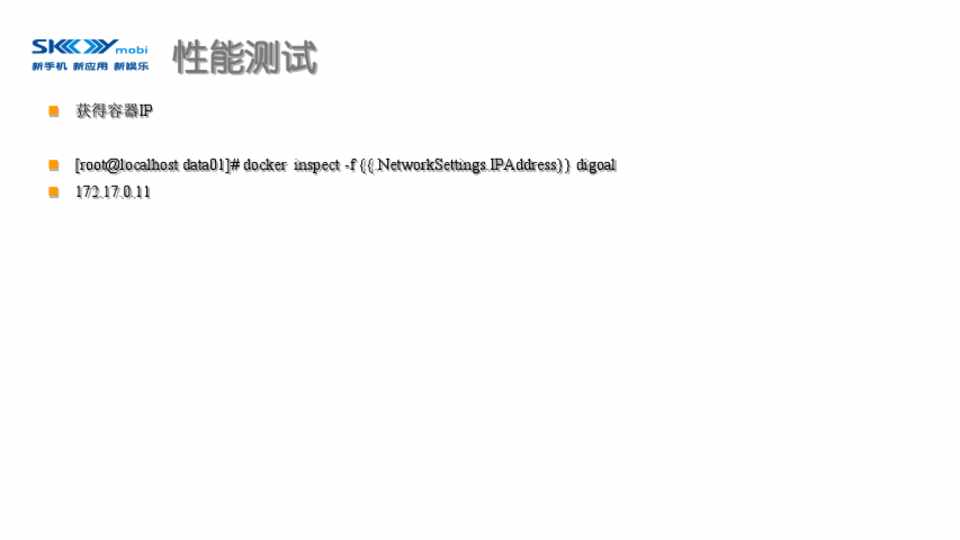

性能测试


 获得容器IP


 [root@localhost data01]# docker inspect -f {{.NetworkSettings.IPAddress}} digoal
 172.17.0.11



第33页

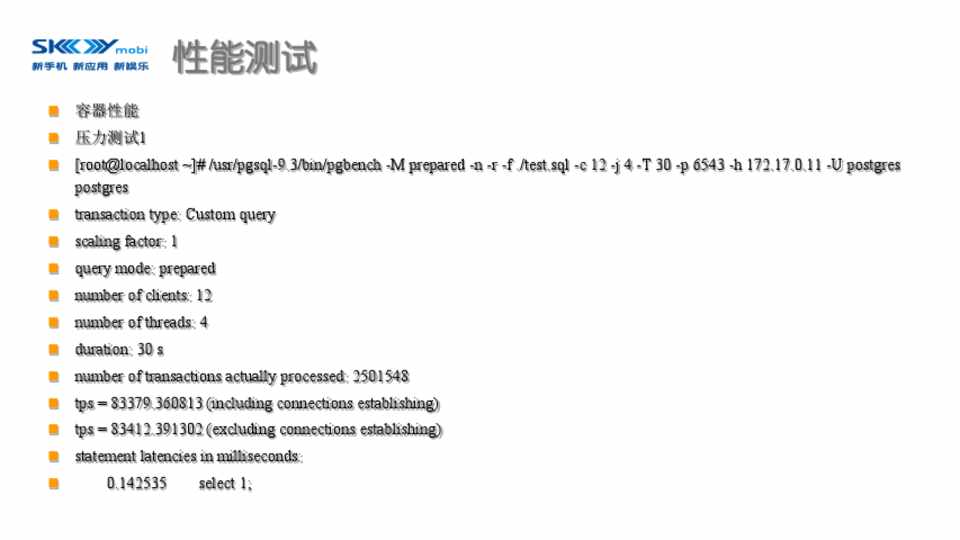

性能测试


 容器性能
 压力测试1
 [root@localhost ~]# /usr/pgsql-9.3/bin/pgbench -M prepared -n -r -f ./test.sql -c 12 -j 4 -T 30 -p 6543 -h 172.17.0.11 -U postgres

postgres
 transaction type: Custom query
 scaling factor: 1
 query mode: prepared
 number of clients: 12
 number of threads: 4
 duration: 30 s
 number of transactions actually processed: 2501548
 tps = 83379.360813 (including connections establishing)
 tps = 83412.391302 (excluding connections establishing)
 statement latencies in milliseconds:
 0.142535 select 1;



第34页

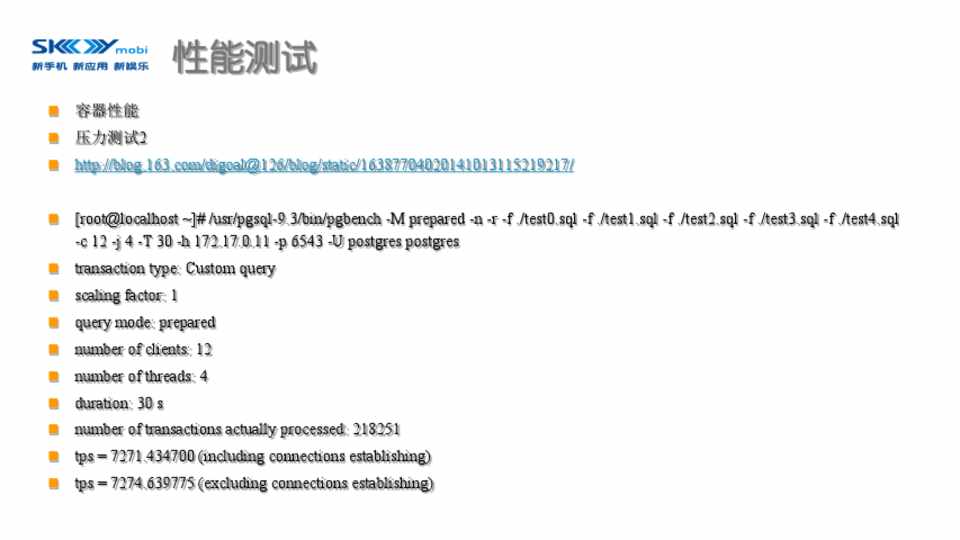

性能测试


 容器性能
 压力测试2
 http://blog.163.com/digoal@126/blog/static/16387704020141013115219217/


 [root@localhost ~]# /usr/pgsql-9.3/bin/pgbench -M prepared -n -r -f ./test0.sql -f ./test1.sql -f ./test2.sql -f ./test3.sql -f ./test4.sql -c 12 -j 4 -T 30 -h 172.17.0.11 -p 6543 -U postgres postgres


 transaction type: Custom query
 scaling factor: 1
 query mode: prepared
 number of clients: 12
 number of threads: 4
 duration: 30 s
 number of transactions actually processed: 218251
 tps = 7271.434700 (including connections establishing)
 tps = 7274.639775 (excluding connections establishing)



第35页

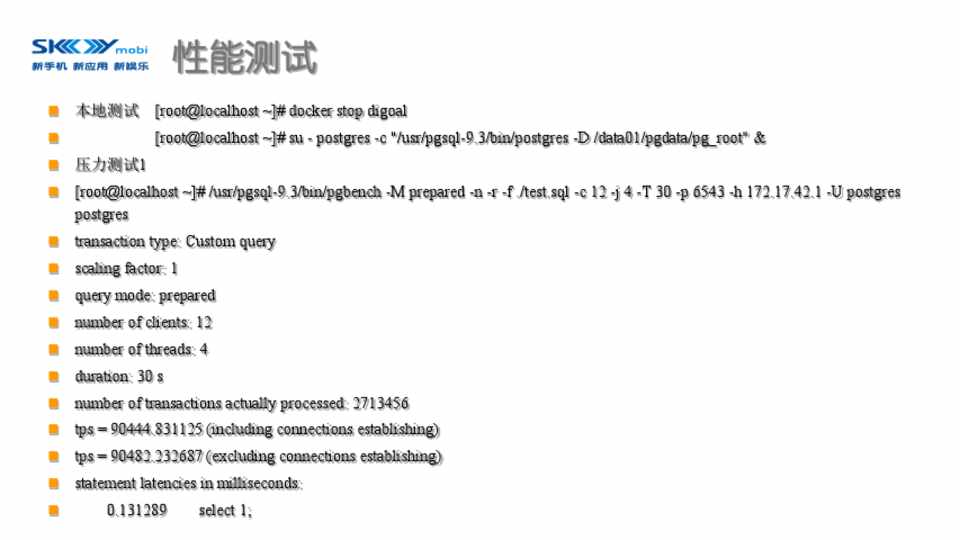

性能测试


 本地测试 [root@localhost ~]# docker stop digoal
 [root@localhost ~]# su - postgres -c "/usr/pgsql-9.3/bin/postgres -D /data01/pgdata/pg_root" &
 压力测试1
 [root@localhost ~]# /usr/pgsql-9.3/bin/pgbench -M prepared -n -r -f ./test.sql -c 12 -j 4 -T 30 -p 6543 -h 172.17.42.1 -U postgres

postgres
 transaction type: Custom query
 scaling factor: 1
 query mode: prepared
 number of clients: 12
 number of threads: 4
 duration: 30 s
 number of transactions actually processed: 2713456
 tps = 90444.831125 (including connections establishing)
 tps = 90482.232687 (excluding connections establishing)
 statement latencies in milliseconds:
 0.131289 select 1;



第36页

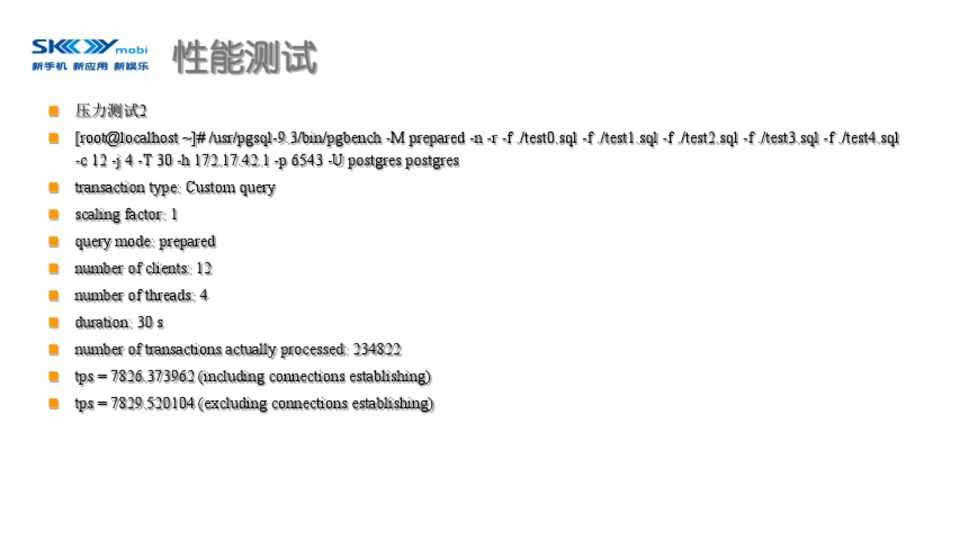

性能测试


 压力测试2
 [root@localhost ~]# /usr/pgsql-9.3/bin/pgbench -M prepared -n -r -f ./test0.sql -f ./test1.sql -f ./test2.sql -f ./test3.sql -f ./test4.sql

-c 12 -j 4 -T 30 -h 172.17.42.1 -p 6543 -U postgres postgres
 transaction type: Custom query
 scaling factor: 1
 query mode: prepared
 number of clients: 12
 number of threads: 4
 duration: 30 s
 number of transactions actually processed: 234822
 tps = 7826.373962 (including connections establishing)
 tps = 7829.520104 (excluding connections establishing)



第37页

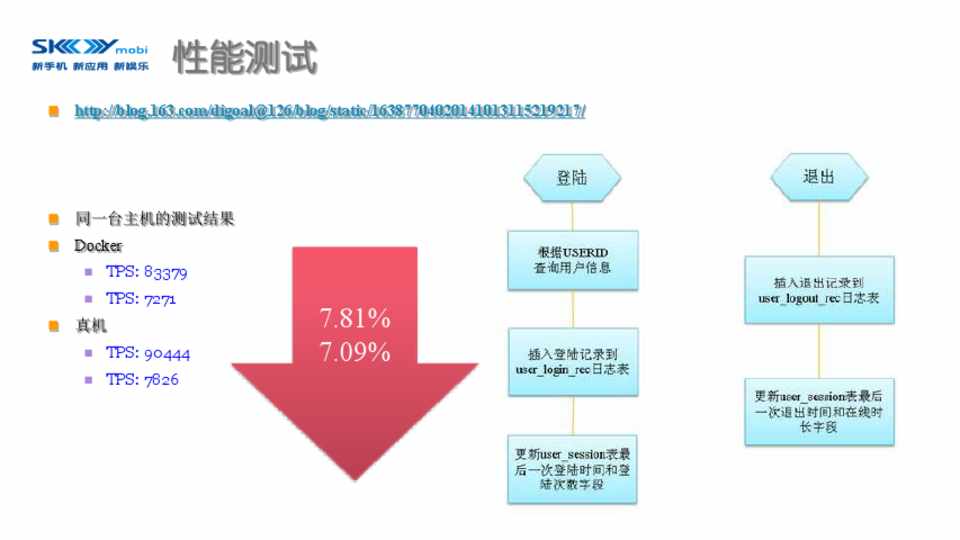

性能测试


 http://blog.163.com/digoal@126/blog/static/16387704020141013115219217/




 同一台主机的测试结果
 Docker


 TPS: 83379
 TPS: 7271
 真机
 TPS: 90444
 TPS: 7826



7.81% 7.09%



第38页

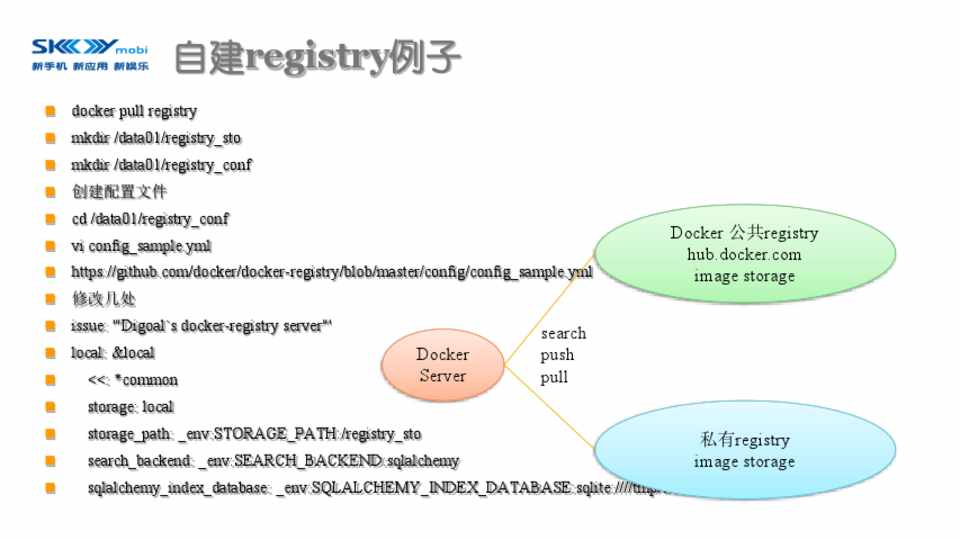

自建registry例子




 docker pull registry




 mkdir /data01/registry_sto




 mkdir /data01/registry_conf




 创建配置文件




 cd /data01/registry_conf
 vi config_sample.yml
 https://github.com/docker/docker-registry/blob/master/config/config_sample.yml
 修改几处



Docker 公共registry hub.docker.com image storage




 issue: '"Digoal`s docker-registry server"'
 local: &local
 <<: *common



Docker Server



search push pull




 storage: local




 storage_path: _env:STORAGE_PATH:/registry_sto
 search_backend: _env:SEARCH_BACKEND:sqlalchemy



私有registry image storage




 sqlalchemy_index_database: _env:SQLALCHEMY_INDEX_DATABASE:sqlite:////tmp/docker-registry.db



第39页

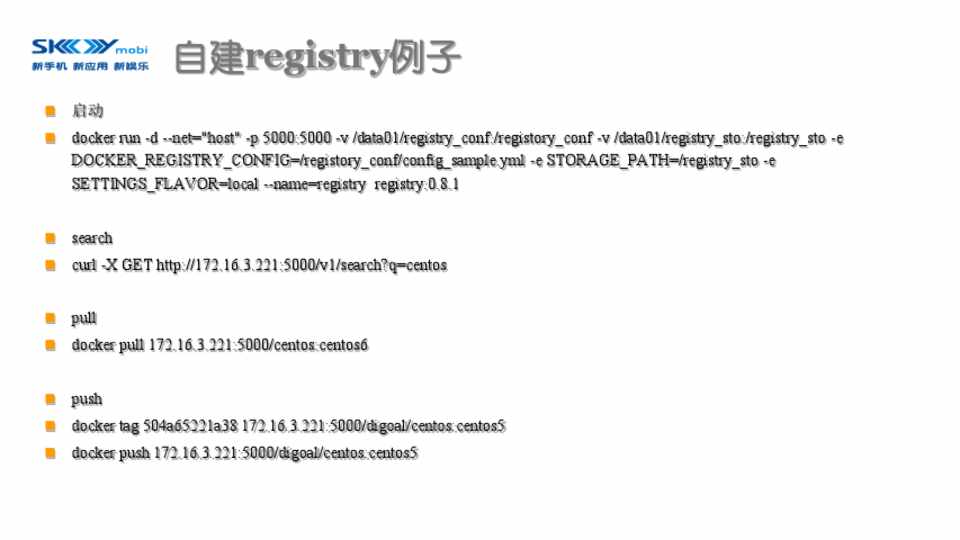

自建registry例子


 启动
 docker run -d --net="host" -p 5000:5000 -v /data01/registry_conf:/registory_conf -v /data01/registry_sto:/registry_sto -e

DOCKER_REGISTRY_CONFIG=/registory_conf/config_sample.yml -e STORAGE_PATH=/registry_sto -e SETTINGS_FLAVOR=local --name=registry registry:0.8.1


 search
 curl -X GET http://172.16.3.221:5000/v1/search?q=centos


 pull
 docker pull 172.16.3.221:5000/centos:centos6


 push
 docker tag 504a65221a38 172.16.3.221:5000/digoal/centos:centos5
 docker push 172.16.3.221:5000/digoal/centos:centos5



第40页

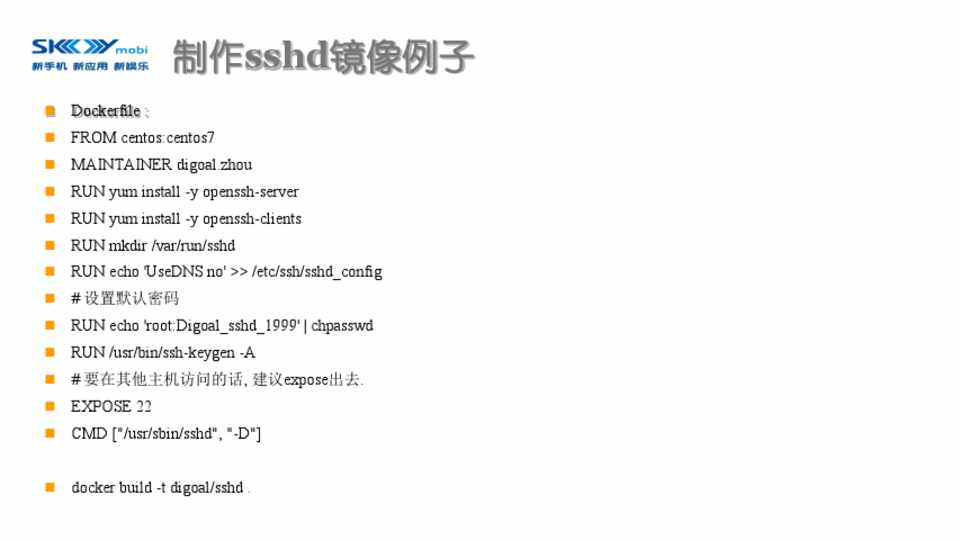

制作sshd镜像例子


 Dockerfile :
 FROM centos:centos7
 MAINTAINER digoal.zhou
 RUN yum install -y openssh-server
 RUN yum install -y openssh-clients
 RUN mkdir /var/run/sshd
 RUN echo 'UseDNS no' >> /etc/ssh/sshd_config
 # 设置默认密码
 RUN echo 'root:Digoal_sshd_1999' | chpasswd
 RUN /usr/bin/ssh-keygen -A
 # 要在其他主机访问的话, 建议expose出去.
 EXPOSE 22
 CMD ["/usr/sbin/sshd", "-D"]


 docker build -t digoal/sshd .



第41页

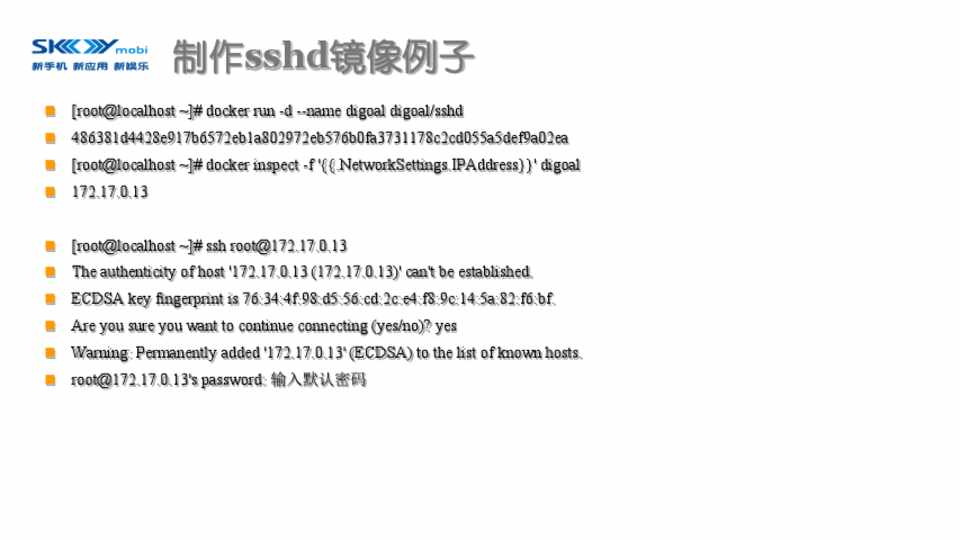

制作sshd镜像例子


 [root@localhost ~]# docker run -d --name digoal digoal/sshd
 486381d4428e917b6572eb1a802972eb576b0fa3731178c2cd055a5def9a02ea
 [root@localhost ~]# docker inspect -f '{{.NetworkSettings.IPAddress}}' digoal
 172.17.0.13


 [root@localhost ~]# ssh root@172.17.0.13
 The authenticity of host '172.17.0.13 (172.17.0.13)' can't be established.
 ECDSA key fingerprint is 76:34:4f:98:d5:56:cd:2c:e4:f8:9c:14:5a:82:f6:bf.
 Are you sure you want to continue connecting (yes/no)? yes
 Warning: Permanently added '172.17.0.13' (ECDSA) to the list of known hosts.
 root@172.17.0.13's password: 输入默认密码



第42页

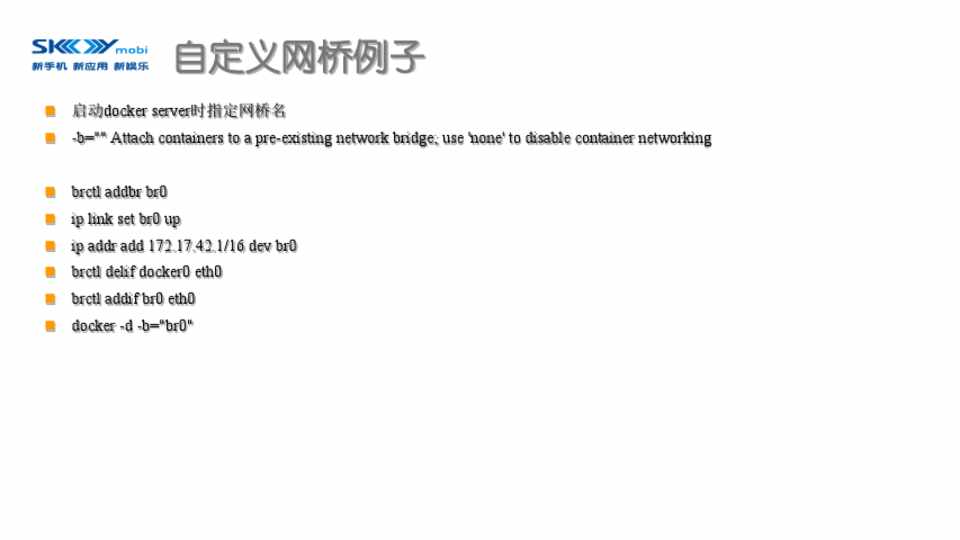

自定义网桥例子


 启动docker server时指定网桥名
 -b="" Attach containers to a pre-existing network bridge; use 'none' to disable container networking


 brctl addbr br0
 ip link set br0 up
 ip addr add 172.17.42.1/16 dev br0
 brctl delif docker0 eth0
 brctl addif br0 eth0
 docker -d -b="br0"



第43页

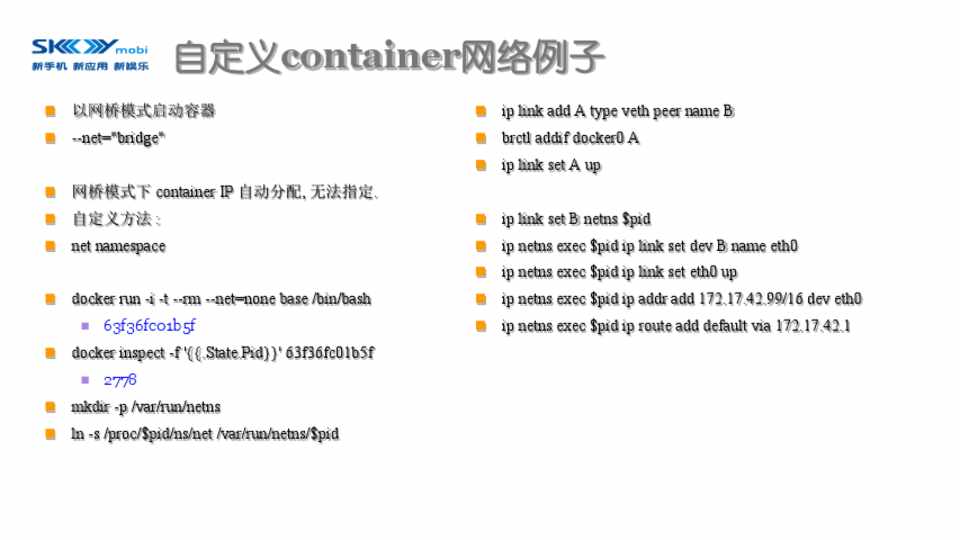

自定义container网络例子




 以网桥模式启动容器
 --net="bridge"


 网桥模式下 container IP 自动分配, 无法指定.
 自定义方法 :
 net namespace


 docker run -i -t --rm --net=none base /bin/bash
 63f36fc01b5f


 docker inspect -f '{{.State.Pid}}' 63f36fc01b5f
 2778


 mkdir -p /var/run/netns
 ln -s /proc/$pid/ns/net /var/run/netns/$pid




 ip link add A type veth peer name B
 brctl addif docker0 A
 ip link set A up


 ip link set B netns $pid
 ip netns exec $pid ip link set dev B name eth0
 ip netns exec $pid ip link set eth0 up
 ip netns exec $pid ip addr add 172.17.42.99/16 dev eth0
 ip netns exec $pid ip route add default via 172.17.42.1



第44页

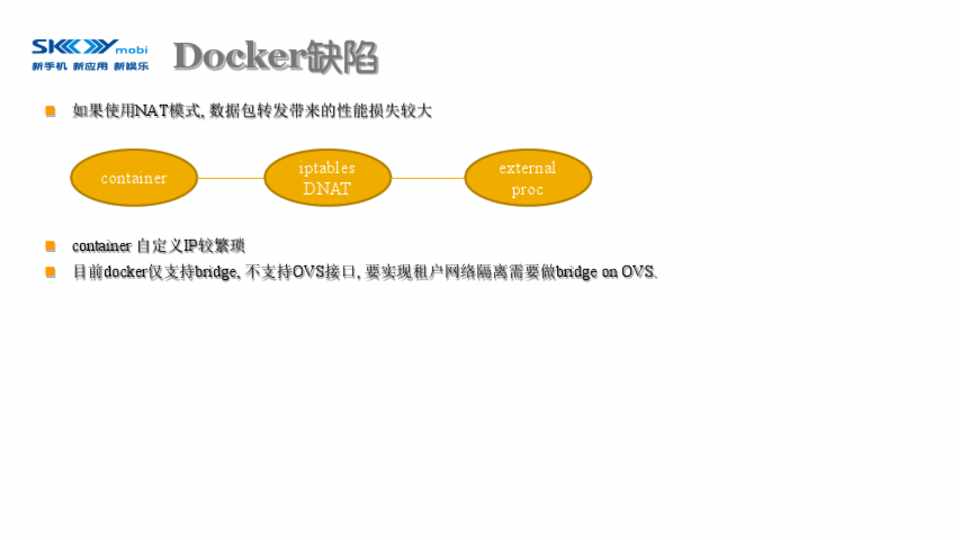

Docker缺陷


 如果使用NAT模式, 数据包转发带来的性能损失较大



container



iptables DNAT



external proc




 container 自定义IP较繁琐
 目前docker仅支持bridge, 不支持OVS接口, 要实现租户网络隔离需要做bridge on OVS.



第45页

Q&A


 谢谢
 更多PostgreSQL开发,管理,优化方面的资料可参考:
 http://blog.163.com/digoal@126/blog/static/16387704020141229159715/
 http://blog.163.com/digoal@126/blog/static/163877040201172183022203/


 http://blog.163.com/digoal@126
 QQ: 276732431
 Email: digoal@126.com



支持文件格式:*.pdf
上传最后阶段需要进行在线转换,可能需要1~2分钟,请耐心等待。
